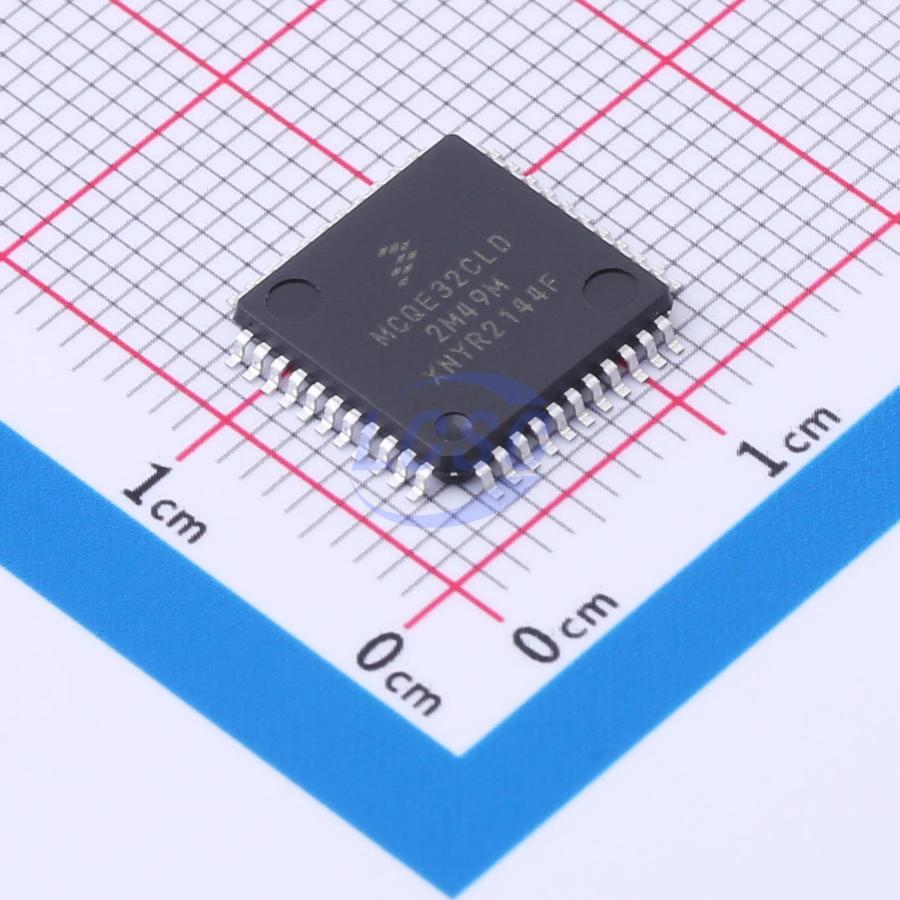

MC9S08QE32CLD

Key features

• 8-Bit HCS08 Central Processor Unit (CPU) – Up to 20 MHz CPU at 3.6 V to 1.8 V across temperature range of -40 ℃ to 85 ℃ – HC08 instruction set with added BGND instruction – Support for up to 32 interrupt/reset sources
• On-Chip Memory – Flash read/program/erase over full operating voltage and temperature – Random-access memory (RAM) Security circuitry to prevent unauthorized access to RAM and flash contents
• Power-Saving Modes – Two low power stop modes Reduced power wait mode – Low power run and wait modes allow peripherals to run while voltage regulator is in standby Peripheral clock gating register can disable clocks to unused modules, thereby reducing currents – Very low power external oscillator that can be used in stop2 or stop3 modes to provide accurate clock source to real time counter 6 μs typical wake-up time from stop3 mode
• Clock Source Options – Oscillator (XOSC) — Loop-control Pierce oscillator; crystal or ceramic resonator range of 31.25 kHz to 38.4 kHz or 1 MHz to 16 MHz – Internal Clock Source (ICS) — Internal clock source module containing a frequency-locked-loop (FLL) controlled by internal or external reference; precision trimming of internal reference allows 0.2% resolution and 2% deviation over temperature and voltage; supporting bus frequencies from 1 MHz to 10 MHz
• System Protection Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock Low-voltage warning with interrupt Low-voltage detection with reset or interrupt – Illegal opcode detection with reset Illegal address detection with reset – Flash block protection
• Development Support Single-wire background debug interface Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module)
• On-chip in-circuit emulator (ICE) debug module containing two comparators and nine trigger modes; eight deep FIFO for storing change-of-flow addresses and event-only data; debug module supports both tag and force breakpoints
• Peripherals ADC — 10-channel, 12-bit resolution; 2.5 μs conversion time; automatic compare function; 1.7 mV/℃ temperature sensor; internal bandgap reference channel; operation in stop3; fully functional from 3.6 V to 1.8 V
• ACMPx — Two analog comparators with selectable interrupt on rising, falling, or either edge of comparator output; compare option to fixed internal bandgap reference voltage; outputs can be optionally routed to TPM module; operation in stop3
• SCI — Full-duplex non-return to zero (NRZ); LIN master extended break generation; LIN slave extended break detection; wake-up on active edge
• SPI — Full-duplex or single-wire bidirectional; double-buffered transmit and receive; master or slave mode; MSB-first or LSB-first shifting
• IIC — Up to 100 kbps with maximum bus loading; multi-master operation; programmable slave address; interrupt driven byte-by-byte data transfer; supporting broadcast mode and 10-bit addressing
• TPMx — Two 3-channel (TPM1 and TPM2); selectable input capture, output compare, or buffered edge- or center-aligned PWM on each channel
• RTC — (Real-time counter) 8-bit modulus counter with binary or decimal based prescaler; external clock source for precise time base, time-of-day, calendar or task scheduling functions; free running on-chip low power oscillator (1 kHz) for cyclic wakeup without external components; runs in all MCU modes
• Input/Output – 26 GPIOs, one output-only pin and one input-only pin – Eight KBI interrupts with selectable polarity Hysteresis and configurable pullup device on all input pins; configurable slew rate and drive strength on all output pins.
• Package Options 32-pin LQFP, 32-pin QFN, 28-pin SOIC, 20-pin SOIC, 16-pin PDIP, 16-pin TSSOP
