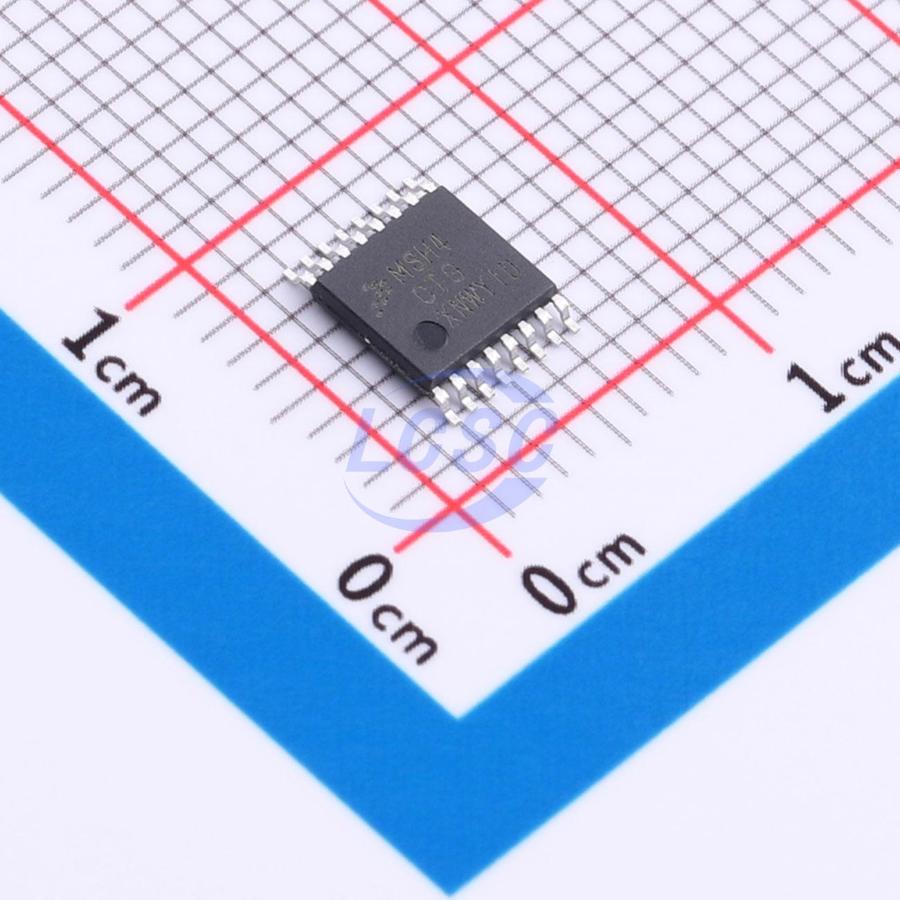

MC9S08SH4CTGR NXP
NXP

MC9S08SH4CTGR

S08 8 Bit 40MHz TSSOP-16 Microcontrollers RoHS

TSSOP-16ROHS3 CompliantActive
Manufacturer
NXP
Manufacturer part #
MC9S08SH4CTGR
Store part #
C2056631
Package / case
TSSOP-16
Category
Microcontrollers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2056631

Stock & price checked 3 days ago

QuantityUnit pricePack price
1+₹918.85₹918.85
10+₹896.68₹8,966.80
30+₹881.89₹26,456.70
100+₹867.11₹86,711.00

1 × ₹918.85

₹918.85

excl. GST

₹1,084.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 5,000 per reel

MC9S08SH4CTGR

₹918.85 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit)
10bit
Number of I/O
13
Operating Temperature
-40℃~+85℃
Voltage - Supply
2.7V~5.5V
Program Memory Type
FLASH
Program Storage Size
4KB
CPU Core
S08
Core Size
8 Bit
CPU Maximum Speed
40MHz
Oscillator Type
Built-in

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
3A991A2
Packaging
Tape & Reel (TR)
Standard pack
5,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
4.07 g

Alternatives

Similar parts — check the datasheet before substituting.

MC9S08SH4MTGR#C1339292NXP · TSSOP-16₹528.31 · 12 in stockView
MC9S08SH8CTGR#C468261NXP · TSSOP-16₹777.42 · 42 in stockView
MC9S08SH16CTGR#C2053395NXP · TSSOP-16₹1,243.69 · 24 in stockView
MC9S08SH4CTG#C3241046NXP · TSSOP-16₹902.60 · 0 in stockView
MC9S08SH8CTG#C3240655NXP · TSSOP-16₹373.54 · 0 in stockView
