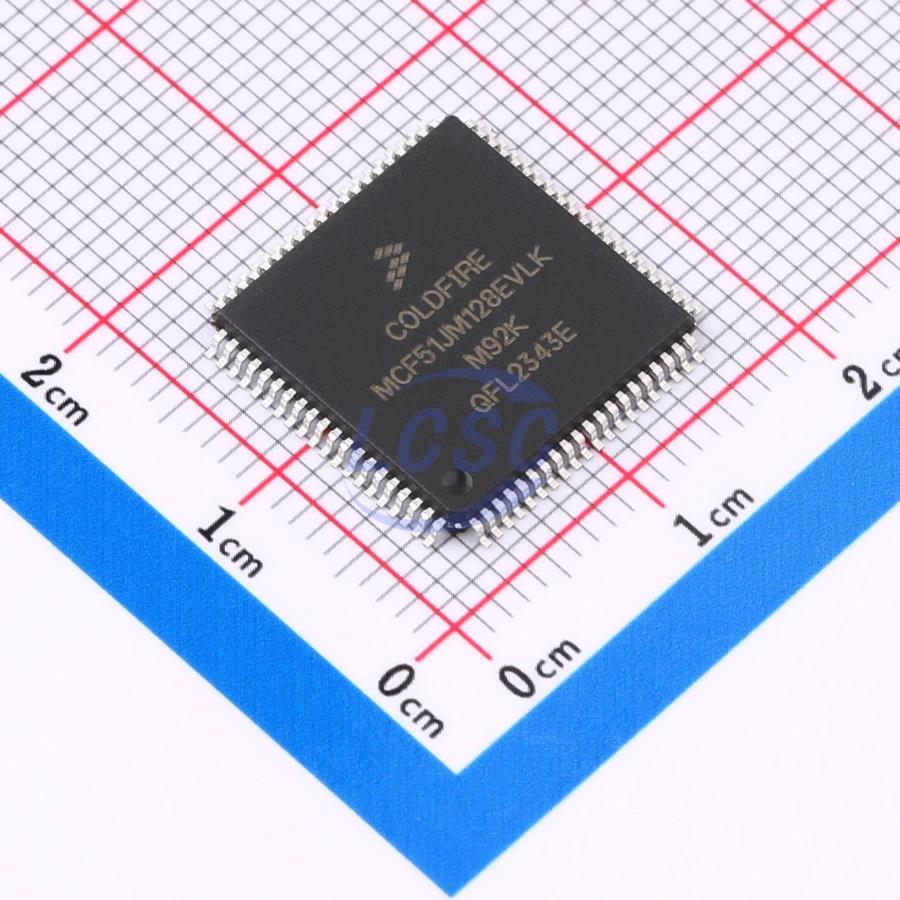

MCF51JM128EVLK NXP
NXP

MCF51JM128EVLK

Freescale Series 32 Bit 50MHz LQFP-80(14x14) Microcontrollers RoHS

LQFP-80(14x14)ROHS3 CompliantActive

ColdFire 32-bit RISC Microcontroller

Manufacturer
NXP
Manufacturer part #
MCF51JM128EVLK
Store part #
C1338795
Package / case
LQFP-80(14x14)
Category
Microcontrollers
Packaging
Tray
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C1338795

Stock & price checked 40 h ago

QuantityUnit pricePack price
1+₹2,411.26₹2,411.26

1 × ₹2,411.26

₹2,411.26

excl. GST

₹2,845.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 450 per tray

MCF51JM128EVLK

₹2,411.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit)
12bit
Number of I/O
66
Operating Temperature
-40℃~+105℃
Voltage - Supply
2.7V~5.5V
Program Memory Type
FLASH
Program Storage Size
128KB
CPU Core
Freescale Series
Core Size
32 Bit
CPU Maximum Speed
50MHz
Oscillator Type
External

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
5A992C
Packaging
Tray
Standard pack
450 / Tray
Sold per
Piece
Minimum order
1
Unit weight
0.7 g

Overview

The MCF51JM128 is a member of the ColdFire family of 32-bit reduced instruction set computing (RISC) microprocessors. This series is based on the V1 ColdFire core and operates at processor core speeds up to 50.33 MHz. It is an ideal upgrade for designs based on the MC9S08JM60 series of 8-bit microcontrollers.

Applications

  • Drop-in upgrade for existing 8-bit microcontroller designs

Key features

  • V1 ColdFire core with background debug module
  • Up to 128 KB of flash memory
  • Up to 16 KB of static RAM (SRAM)
  • Multipurpose clock generator (MCG)
  • Dual-role Universal Serial Bus On-The-Go device (USBOTG)
  • Controller-area network (MSCAN)
  • Cryptographic acceleration unit (CAU)
  • Random number generator accelerator (RNGA)
  • Analog comparators (ACMP)
  • Analog-to-digital converter (ADC) with up to 12 channels
  • Two Inter-integrated circuit (IIC) modules
  • Two serial peripheral interfaces (SPI)
  • Two serial communications interfaces (SCI)
  • Carrier modulation timer (CMT)
  • Eight-channel timer/pulse-width modulators (TPM)
  • Real-time counter (RTC)
  • 66 general-purpose input/output (GPIO) modules plus Interrupt request input
  • Eight keyboard interrupts (KBI)
  • 16-bit Rapid GPIO
