MICROCHIPDatasheet (PDF)

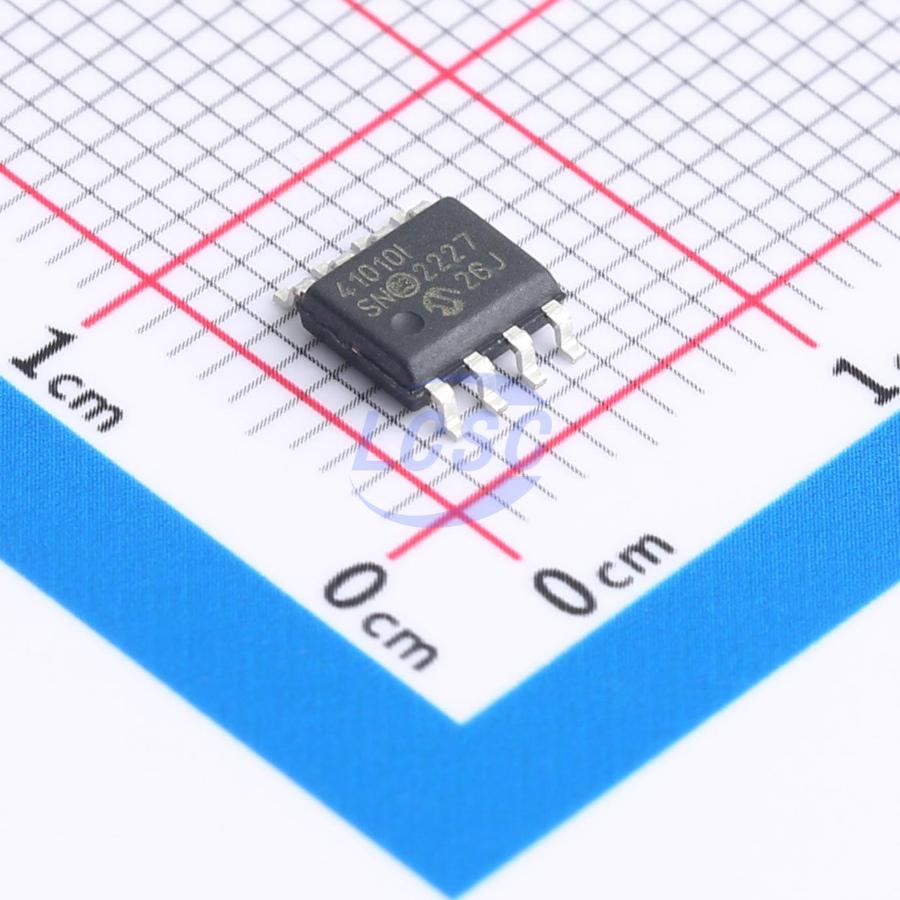

MCP41010T-I/SN
SPI 10kΩ SOIC-8-150mil Digital Potentiometers RoHS
SOIC-8-150milROHS3 CompliantActive
Single/Dual Digital Potentiometer with SPI Interface
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP41010T-I/SN
- Store part #
- C136395
- Package / case
- SOIC-8-150mil
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,251 in stock
#C136395
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.55 | ₹223.55 |
| 10+ | ₹185.38 | ₹1,853.80 |
| 30+ | ₹164.36 | ₹4,930.80 |
| 100+ | ₹140.71 | ₹14,071.00 |
| 500+ | ₹130.09 | ₹65,045.00 |
| 1,000+ | ₹125.33 | ₹1,25,330.00 |
1 × ₹223.55
₹223.55
excl. GST
₹263.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
MCP41010T-I/SN
₹223.55 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~5.5V
- Resistance value change
- Linear
- Number of Taps
- 256
- Interface
- SPI
- Temperature Coefficient(Typ)
- 800ppm/℃
- Features
- Mute function;Power-on reset;Soft reset
- Operating Temperature
- -40℃~+85℃
- Resistance Value (Ohms)
- 10kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.256 g
Overview
Key features
- 256 taps per potentiometer
- Potentiometer values: 10 kΩ, 50 kΩ, and 100 kΩ
- Single and dual channel versions
- SPI serial interface (modes 0,0 and 1,1)
- Maximum INL ±1 LSB, DNL
- Low-power CMOS technology
- Maximum supply current 1 µA in static operation
- Multiple devices cascadable (MCP42XXX only)
- Shutdown function disconnects all resistors for maximum power savings
- Hardware shutdown pin available on MCP42XXX only
- Single-supply operation (2.7V–5.5V)
- Industrial temperature range: -40°C to +85°C
- Extended temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP41010-I/SN#C17064MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4,999 | ₹345.87 · 4,999 in stock | View |
 | MCP41010-E/SN#C636029MICROCHIP · SOIC-8-150mil | MICROCHIP | SOIC-8-150mil | 79 | ₹459.58 · 79 in stock | View |
| XLMCP41010T-I/SN#C54876632XINLUDA · SOP-8 | XINLUDA | SOP-8 | 334 | ₹93.76 · 334 in stock | View | |
 | MCP41010T-E/SN#C623333MICROCHIP · SOIC-8-150mil | MICROCHIP | SOIC-8-150mil | 17 | ₹499.76 · 17 in stock | View |
 | AD8400ARZ10-REEL#C207469ADI · SOIC-8 | ADI | SOIC-8 | 69 | ₹709.86 · 69 in stock | View |
