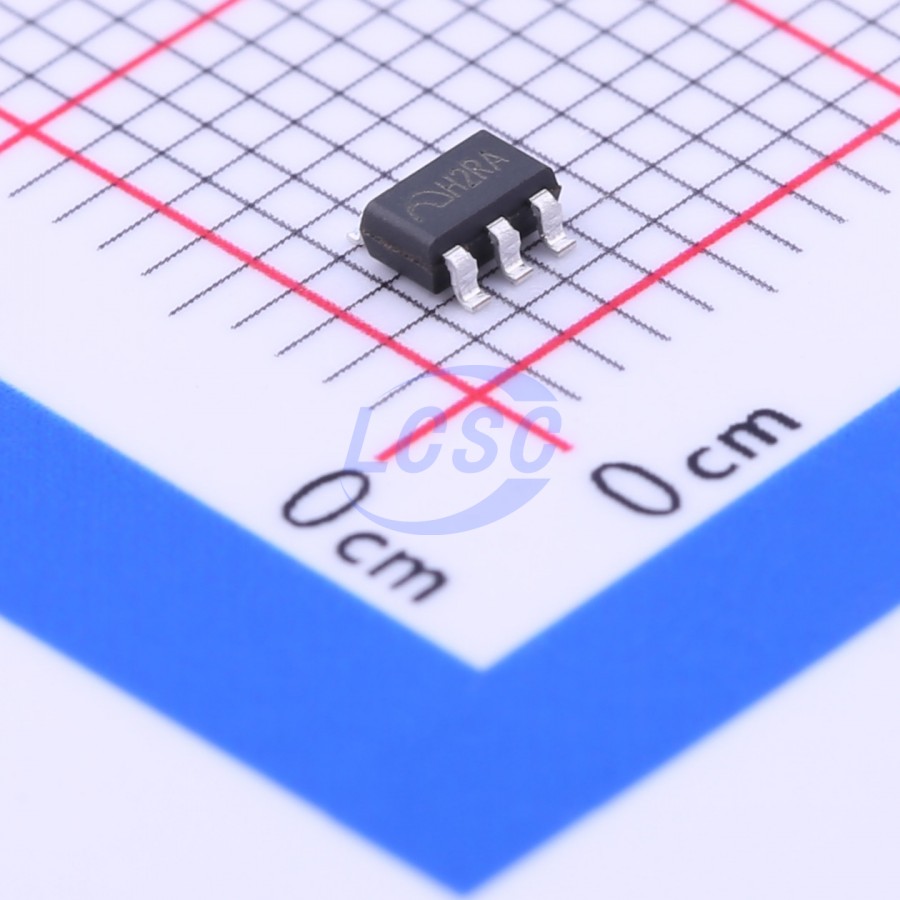

ME4074AM5G
Battery Charging IC Lithium Battery SOT-23-5
Independent linear lithium-ion battery charging chip in Thin-SOT package
- Manufacturer
- MICRONE
- Manufacturer part #
- ME4074AM5G
- Store part #
- C236729
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C236729
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.68 | ₹86.80 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 3,000+ | ₹5.27 | ₹15,810.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.46 | ₹40,140.00 |
10 × ₹8.68
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME4074AM5G
₹86.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 55uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 800mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
ME4074 is a single-cell lithium-ion battery charger that employs a constant-current/constant-voltage algorithm. It is capable of delivering 800mA charging current (with a well-designed thermal PCB layout) and a high-accuracy float voltage. It integrates an internal P-channel power MOSFET and thermal regulation circuitry. No isolation diode or external current-sense resistor is required; therefore, the basic charger circuit needs only two external components. Furthermore, the ME4074 can draw operating power from a USB power source.
Applications
- Charging dock
- Bluetooth applications
Key features
- Programmable charge current range: 4074A 50 - 800mA, 4074B 20 - 800mA
- Charge termination: 4074A C/10, 4074B 3C/10
- Charge status output pin, LED on/off two states
- No MOSFET, sense resistor, or isolation diode required
- Complete linear charger for single-cell Li-Ion batteries in ThinSOT package
- Constant current/constant voltage operation with thermal regulation for maximizing charge rate without risk of overheating
- Direct Li-Ion battery charging from USB port
- High accuracy 4.2V preset charge voltage
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Supply current in shutdown mode: 55μA
- 2.9V trickle charge threshold
- Soft-start limits inrush current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME4074BM5G#C236728MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 180 | ₹8.92 · 180 in stock | View |
 | ME4064AM5G-N#C2765184MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 3,130 | ₹10.23 · 3,130 in stock | View |
 | ME4064DM5G#C2983867MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 2,860 | ₹12.28 · 2,860 in stock | View |
 | ME4074CM5G#C2931248MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | On request | ₹9.64 · 0 in stock | View |
 | ME4064AM5G#C82941MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | On request | ₹14.96 · 0 in stock | View |
