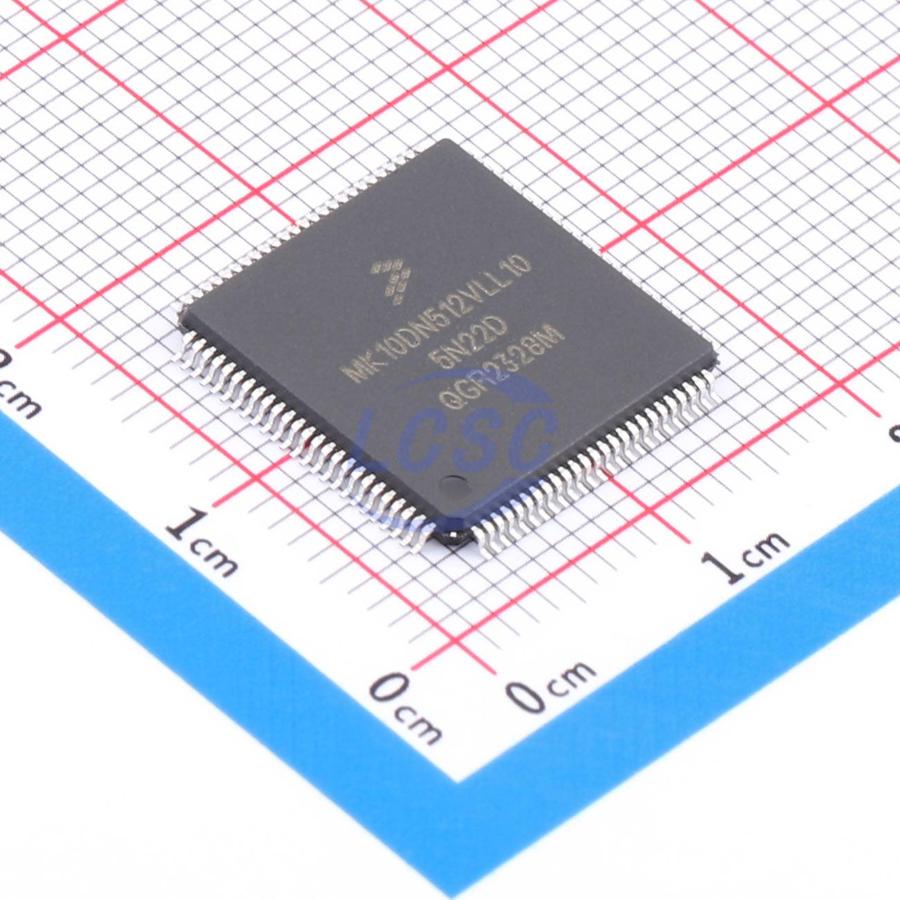

MK10DN512VLL10

Key features

• Operating Characteristics – Voltage range: 1.71 to 3.6 V – Flash write voltage range: 1.71 to 3.6 V Temperature range (ambient): -40 to 105℃
• Performance – Up to 100 MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
• Memories and memory interfaces – Up to 512 KB program flash memory on nonFlexMemory devices Up to 128 KB RAM – Serial programming interface (EzPort) FlexBus external bus interface
• Clocks – 3 to 32 MHz crystal oscillator 32 kHz crystal oscillator – Multi-purpose clock generator
• System peripherals – Multiple low-power modes to provide power optimization based on application requirements – Memory protection unit with multi-master protection 16-channel DMA controller, supporting up to 63 request sources External watchdog monitor Software watchdog – Low-leakage wakeup unit
• Security and integrity modules – Hardware CRC module to support fast cyclic redundancy checks – 128-bit unique identification (ID) number per chip
• Human-machine interface – Low-power hardware touch sensor interface (TSI) – General-purpose input/output
• Analog modules – Two 16-bit SAR ADCs – Programmable gain amplifier (PGA) (up to x64) integrated into each ADC 12-bit DAC Two transimpedance amplifiers Three analog comparators (CMP) containing a 6-bit DAC and programmable reference input Voltage reference
• Timers – Programmable delay block – Eight-channel motor control/general purpose/PWM timer – Two 2-channel quadrature decoder/general purpose timers – Periodic interrupt timers – 16-bit low-power timer – Carrier modulator transmitter – Real-time clock
• Communication interfaces – Two Controller Area Network (CAN) modules – Two SPI modules – Two I2C modules – Four UART modules Secure Digital host controller (SDHC) I2S module
