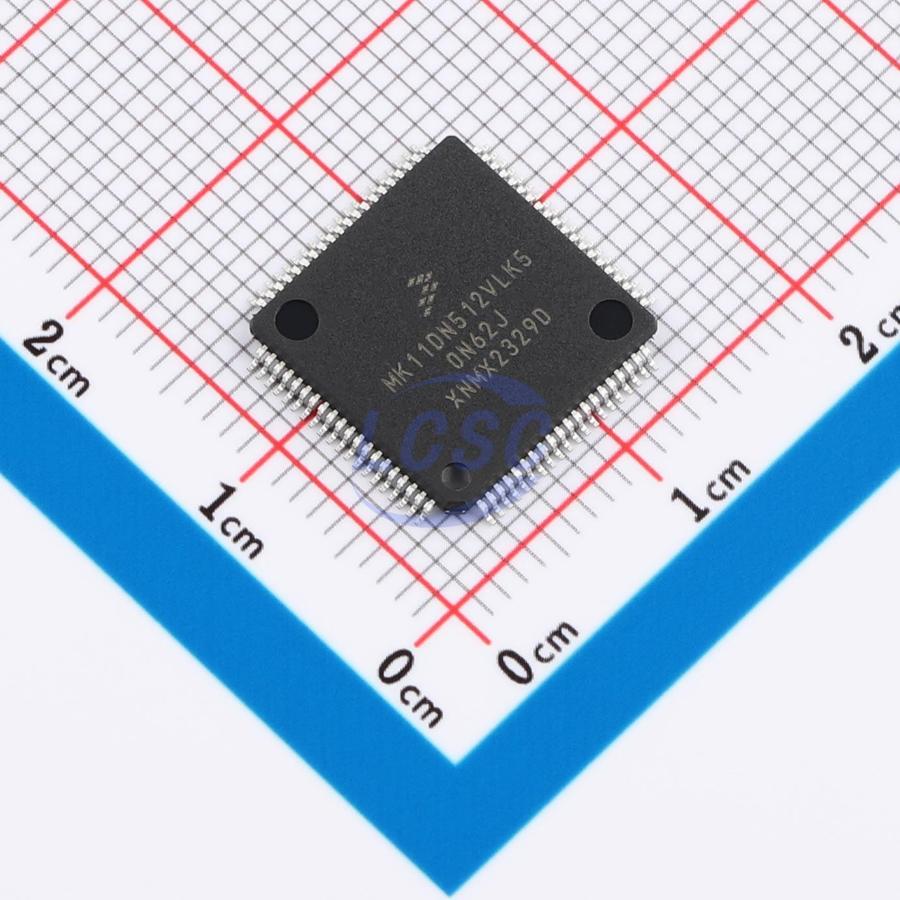

MK11DN512AVLK5

This product belongs to the Kinetis K11D sub-family, featuring an ARM Cortex-M4 based microcontroller with a maximum operating frequency of 50 MHz. The K11 product family is optimized for cost-sensitive applications requiring low power consumption, processing efficiency, and comprehensive tamper protection, sharing the full enablement and scalability of the Kinetis product family. This series includes the following part numbers: MK11DX128AVMC5, MK11DX256AVMC5, and MK11DN512AVMC5, all in a 121 BGA package measuring 8 x 8 x 1.4 mm with a 0.65 mm pitch.

Applications

• Electronic point of sale

Key features

• Up to 512 KB program flash, up to 64 KB SRAM
• FlexMemory devices with 64 KB FlexNVM and 4 KB FlexRAM
• Integrated DryIce tamper detection monitoring active/passive pins, temperature, clock, and supply voltage
• Active power consumption as low as 189 μA/MHz; static power consumption as low as 3.1 μA with full state retention and 6 μs wake-up time; minimum static mode power consumption as low as 359 nA
• Up to 50 MHz ARM Cortex-M4 core with integrated DSP instructions, delivering 1.25 Dhrystone MIPS per MHz
• Multiple low-power modes supported
• 16-channel DMA controller
• External watchdog monitor
• Software watchdog
• 32 kHz and 3-32 MHz crystal oscillator support
• Integrated multipurpose clock generator
• Hardware CRC module
• Tamper detection and secure storage
• Hardware random number generator
• Hardware encryption supporting DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms
• 128-bit unique identification number (ID) per device
• 2 integrated SPI modules
• 2 integrated I2C modules
• 4 integrated UART modules
• Integrated I2S module
• 8-channel motor control/general-purpose/PWM timer
• Two 2-channel general-purpose timers
• 32-bit PIT and 16-bit low-power timer
• Carrier modulator transmitter
• Real-time clock
• Programmable delay block
• 16-bit SAR ADC
• 2 analog comparators (CMP)
• 12-bit DAC
• Voltage reference
• Operating voltage range: 1.71 V to 3.6 V
• Flash write voltage range: 1.71 V to 3.6 V
• Ambient operating temperature range: -40℃ to 105℃
