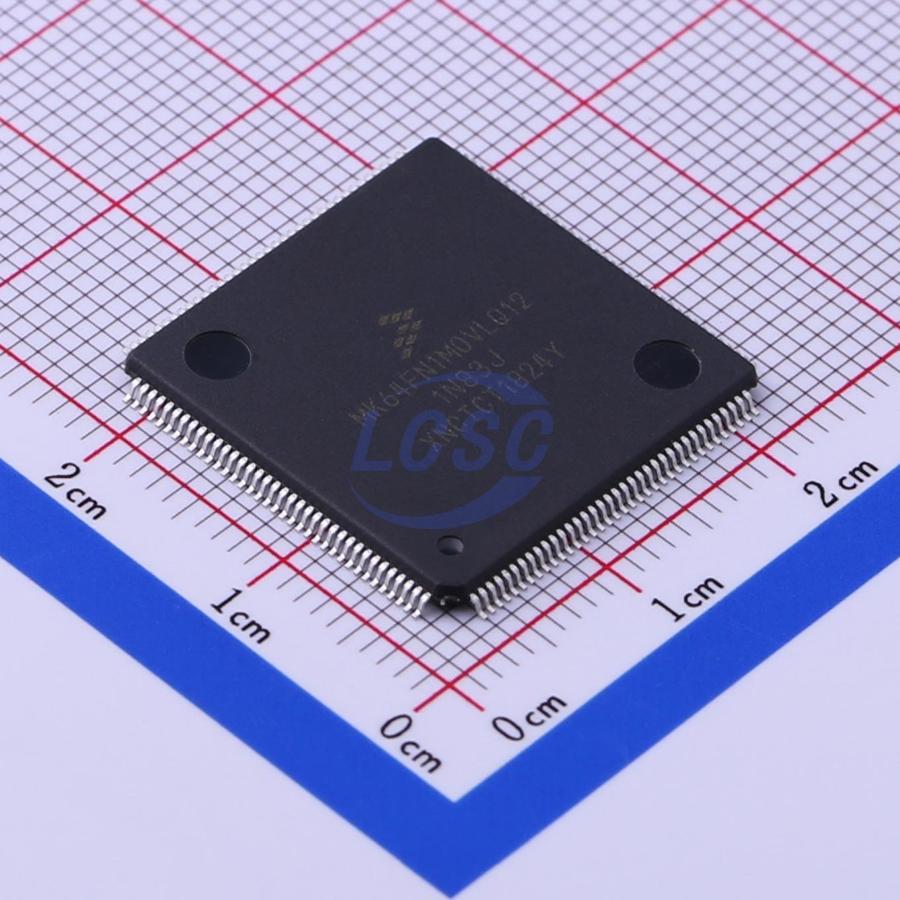

MK64FN1M0VLQ12

The K64 product family features high memory densities, low power capabilities, optimized integration, in an ultra-small package. It shares the comprehensive enablement and scalability of the Kinetis family. This product offers: - Up to 1 MB flash, with 256 KB of embedded SRAM - 10/100 Mbit/s Ethernet MAC with MII and RMII interfaces - Run power consumption down to 250 μA/MHz. Static power consumption down to 5.8 μA with full state retention and 5 μs wakeup. Lowest Static mode down to 339 nA - USB LS/FS OTG 2.0 with embedded 3.3 V, 120 mA LDO voltage regulator with USB device crystal-less operation

Key features

• Up to 120 MHz Arm® Cortex®-M4 core with DSP instructions and Floating Point Unit delivering 1.25 Dhrystone MIPS per MHz
• Up to 1 MB program flash memory and 256 KB RAM
• FlexBus external bus interface
• Multiple low-power modes, low-leakage wakeup unit
• Memory protection unit with multi-master protection
• 16-channel DMA controller
• External watchdog monitor and software watchdog
• 3 to 32 MHz and 32 kHz crystal oscillator
• Multi-purpose clock generator
• 1 kHz, 32 kHz, and 4 MHz internal reference clock
• 48 MHz internal reference
• Hardware CRC module
• Hardware random-number generator
• Hardware encryption supporting DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms
• 128-bit unique identification (ID) number per chip
• Ethernet controller with MII and RMII interface
• USB full-/low-speed On-the-Go controller
• Controller Area Network (CAN) module
• Three SPI modules
• Three I2C modules
• Six UART modules
• Secure Digital Host Controller (SDHC)
• I2S module
• Programmable delay block
• Two 8-channel FlexTimers (PWM/Motor Control)
• Two 2-channel FlexTimer (Quad Decoder/PWM)
• IEEE 1588 timers
• PIT and 16-bit low-power timer
• Carrier modulator transmitter
• Real-time clock
• Two 16-bit SAR ADCs
• Two 12-bit DACs
• Three analog comparators (CMP)
• Voltage reference
• Voltage range: 1.71 to 3.6 V
• Flash write voltage range: 1.71 to 3.6 V
• Temperature range (ambient): -40 to 85 °C
