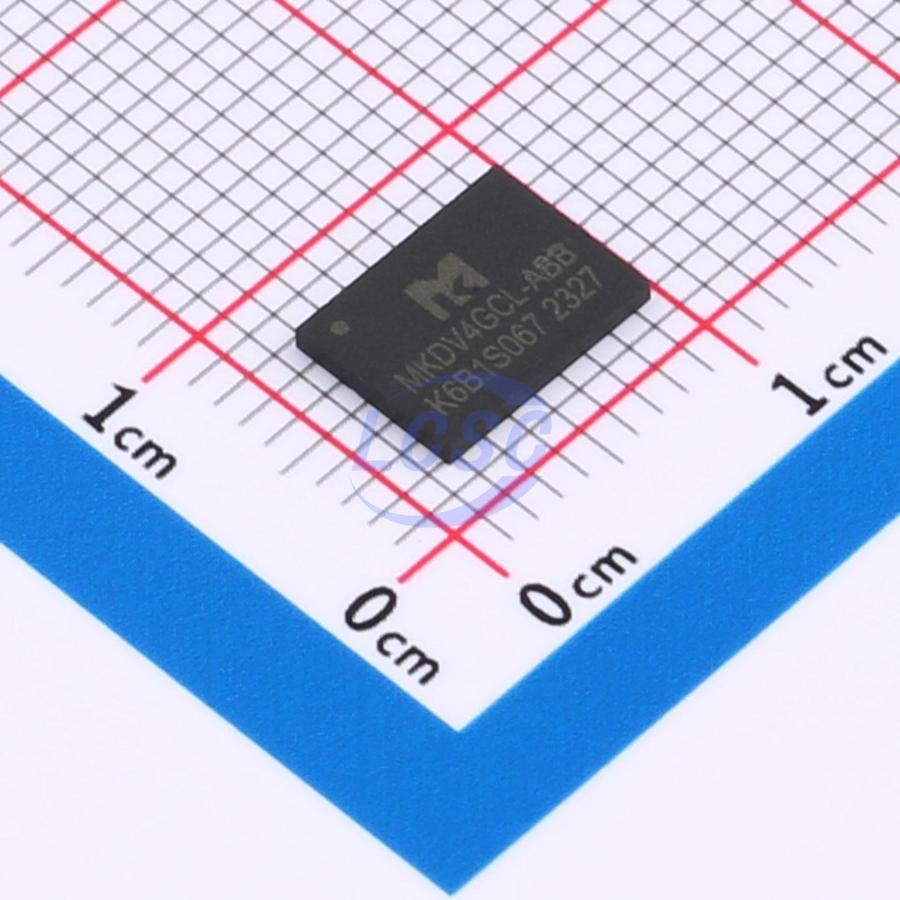

MKDV4GCL-ABB

MK SD NAND is an embedded storage solution designed in LGA package form. The SD operation is similar to commercially standard-compliant SD cards. SD NAND consists of NAND flash memory and a high-performance controller. The NAND region (VCC) requires a 3.3V supply voltage. SD NAND is fully compliant with the SD2.0 interface, allowing use with most general-purpose CPUs. SD NAND features high performance, high quality, and low power consumption. MK's SD NAND series incorporates an onboard intelligent controller for managing interface protocols, security algorithms for content protection, data storage and retrieval, as well as ECC algorithms, defect handling, power management, wear leveling, and clock control. ECC: Error Correction Code algorithm

Key features

• Clock frequency up to 50MHz
• SD protocol compatible
• SPI mode support
• Built-in hardware ECC engine with highly reliable NAND management
• Write speed up to Class 2
• Compact LGA-8 package
• Advanced thermal management for maximized performance and data protection at extended temperatures
• Static, dynamic, and global wear leveling
• Bad block management, intelligent garbage collection, interleaved/cache/multi-plane programming support
• Read disturbance management and dynamic data refresh
• Best-in-class power-loss management
• Program/erase endurance: 60,000 cycles
