MKL34Z64VLL4

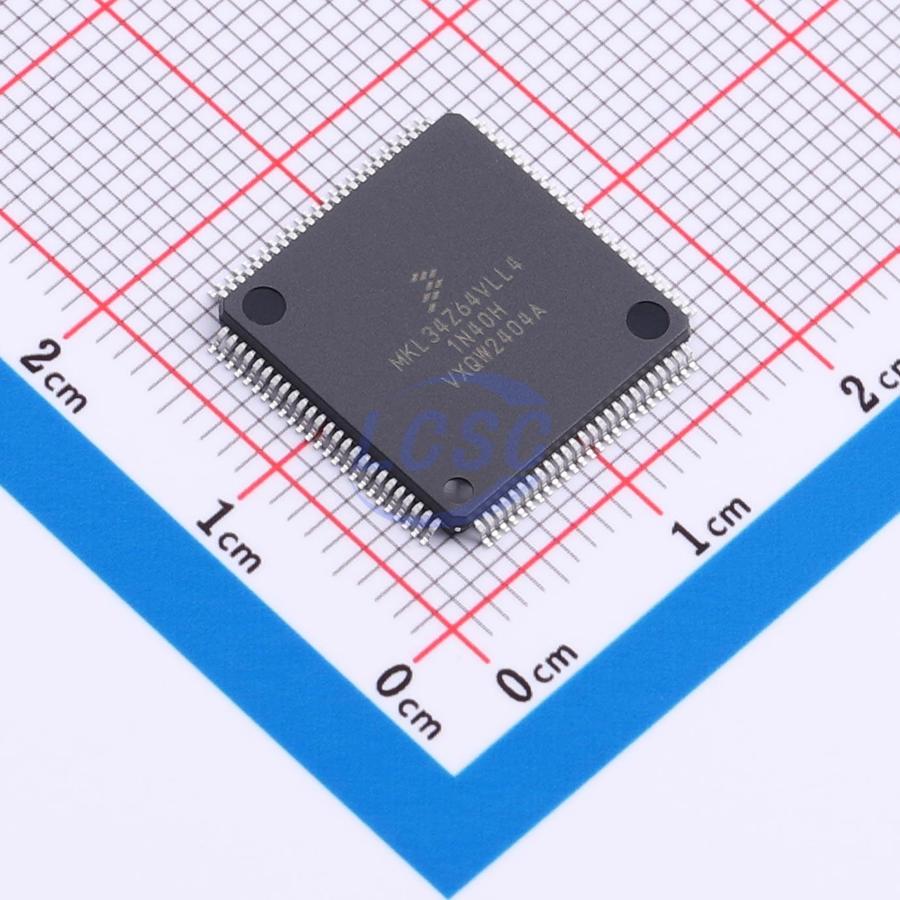

The Kinetis KL34 sub-family is a Cortex-M0+ based microcontroller running at 48 MHz, designed for high efficiency and compatible with all other Kinetis L family and Kinetis K3x family devices. It is a general-purpose microcontroller featuring a segment LCD and ultra-low power consumption, providing developers with an ideal entry-level 32-bit solution. The sub-family offers two package options: a 64-pin LQFP (LH) package measuring 10×10×1.4 mm with 0.5 mm pin pitch, and a 100-pin LQFP (LL) package measuring 14×14×1.4 mm with 0.5 mm pin pitch, including part numbers MKL34Z64VLH4 and MKL34Z64VLL4.

Key features

• Ultra-low power run mode current as low as 50 μA/MHz
• Static current as low as 2 μA with full state retention, 4.5 μs wake-up time
• Cortex-M0+ core, up to 48 MHz operating frequency
• Memory options up to 64 KB flash and 8 KB RAM
• Energy-efficient architecture optimized for low power: 90 nm TFS process, clock and power gating, zero wait-state flash controller
• Nine low-power modes for application-specific power optimization
• Integrated COP software watchdog
• 4-channel DMA controller supporting up to 63 request sources
• Low-leakage wakeup unit
• SWD debug interface and Micro Trace Buffer support
• Integrated bit manipulation engine
• 32 kHz to 40 kHz or 3 MHz to 32 MHz crystal oscillator support
• Multipurpose clock sources
• Segment LCD controller supporting up to 47 frontplanes and 8 backplanes, or 51 frontplanes and 4 backplanes
• Up to 84 GPIO
• Two 16-bit SPI modules
• One low-power UART module
• Two UART modules
• Two I2C modules
• 12-bit SAR ADC
• Analog comparator (CMP) with 6-bit DAC and programmable reference input
• Six-channel Timer/PWM (TPM)
• Two 2-channel Timer/PWM modules
• Periodic interrupt timer
• 16-bit low-power timer (LPTMR)
• Real-time clock
• 80-bit unique identification number per device
