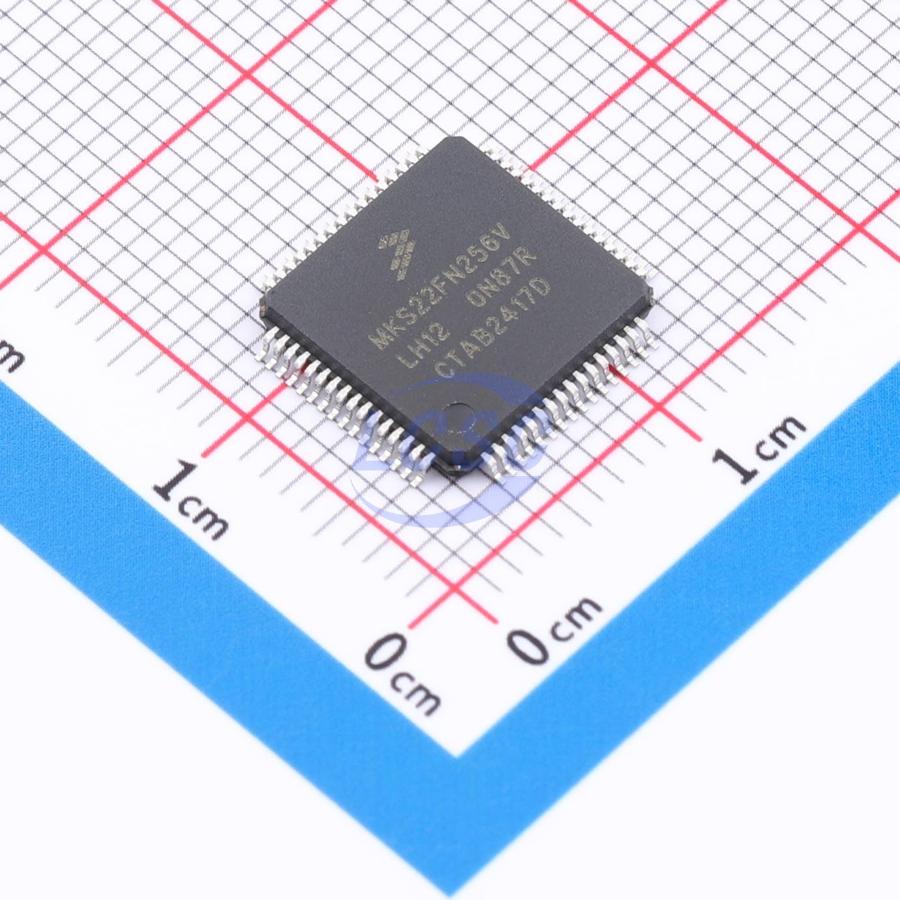

MKS22FN256VLH12

KS22/KS20 are microcontrollers based on the ARM® Cortex®-M4 core, operating at up to 120 MHz with up to 256 KB of integrated Flash. The KS2x product family is built on the ARM® Cortex®-M4 processor, offering lower power consumption, higher memory density, and multiple package options. The device delivers 120 MHz performance through an integrated single-precision floating-point unit (FPU). Embedded Flash memory ranges from 128 KB to 256 KB. The family includes the following models: MKS22FN256Vxx12, MKS22FN128Vxx12, MKS20FN256Vxx12, and MKS20FN128Vxx12, available in 100-pin and 64-pin LQFP and 48-pin QFN packages. The 48-QFN package does not support DAC0 or I2S1.

Key features

• USB Full-Speed 2.0 device, no external crystal required
• FlexCAN, compliant with ISO 11898-1 standard and CAN 2.0 B protocol specification
• FlexIO, highly configurable module supporting multiple protocols including but not limited to UART, LPI2C, SPI, I2S, and PWM/waveform generation
• 120 MHz ARM Cortex-M4 core with DSP instruction set, 1.25 Dhrystone MIPS/MHz
• Integrated single-precision floating-point unit (FPU)
• Up to 256 KB embedded flash and 64 KB SRAM
• Flash bootloader for one-time in-system programming at factory
• Flexible low-power modes with multiple wake-up sources
• 16-channel asynchronous DMA controller
• Independent external and software watchdog
• Two crystal oscillators: 32 kHz (RTC) and 32–40 kHz or 3–32 MHz
• Three internal oscillators: 32 kHz, 4 MHz, and 48 MHz
• Multipurpose Clock Generator (MCG) with PLL and FLL
• Hardware CRC module
• 128-bit unique identification (UID) number per device
• Hardware random number generator
• Flash Access Control (FAC) for proprietary software protection
• Up to 66 general-purpose I/O (GPIO) pins
• One 16-bit ADC module supporting up to 17 single-ended channels and 4 differential channels, up to 1.2 Msps at ≤ 13-bit mode
• One 12-bit DAC module
• One analog comparator (CMP) module
• USB Full-Speed 2.0 device controller
• Three UART modules (one with ISO 7816 support, the other two operating at up to 1.5 Mbit/s)
• One LPUART module supporting asynchronous operation in low-power mode
• Two LPI2C modules supporting up to 5 Mbit/s with asynchronous operation in low-power mode
• Two 16-bit SPI modules supporting up to 30 Mbit/s
• KS22 features two FlexCAN modules; KS20 features one FlexCAN module
• Two I2S modules
• Three 16-bit low-power timer PWM modules (TPM)
• One Low-Power Timer (LPTMR)
• Periodic Interrupt Timer (PIT)
• Real-Time Clock (RTC) with independent power domain
• Programmable Delay Block (PDB)
• Voltage range (including flash write): 1.71 V to 3.6 V
• Temperature range (ambient): –40°C to 105°C
