TECH PUBLICDatasheet (PDF)

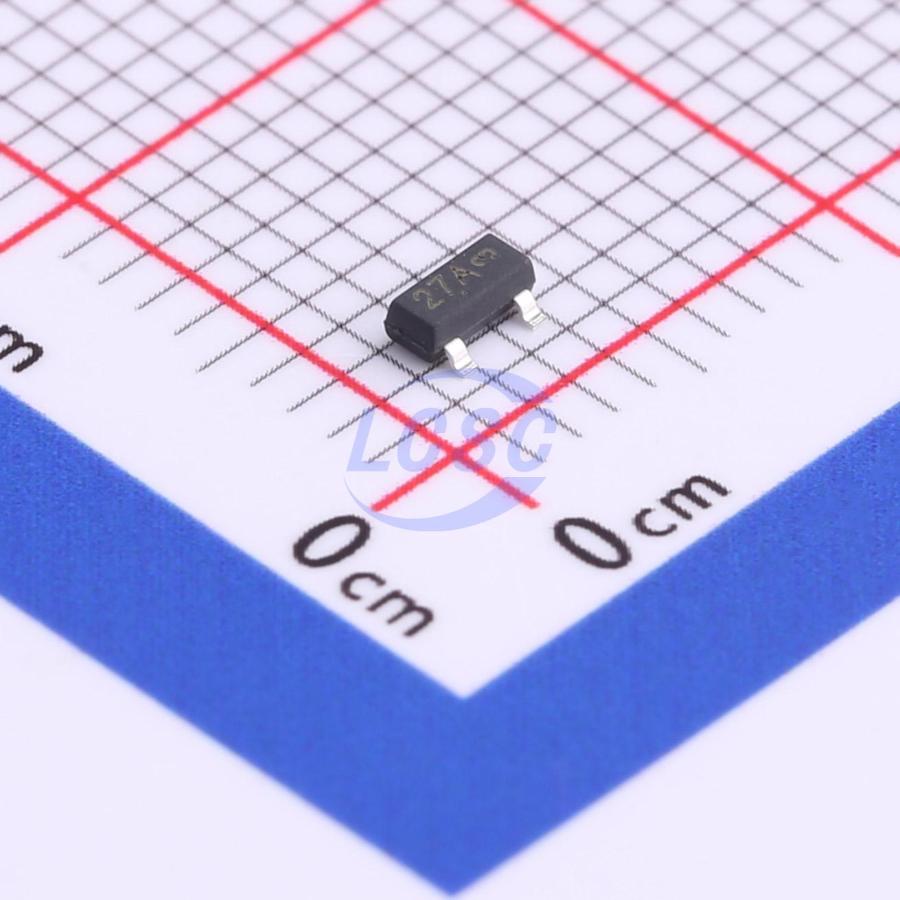

MMBZ27VAL
62VC Clamp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 24VWM 62VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMBZ27VAL
- Store part #
- C2835454
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C2835454
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.70 | ₹74.00 |
| 200+ | ₹2.94 | ₹588.00 |
| 600+ | ₹2.50 | ₹1,500.00 |
| 3,000+ | ₹2.14 | ₹6,420.00 |
| 9,000+ | ₹1.92 | ₹17,280.00 |
| 21,000+ | ₹1.80 | ₹37,800.00 |
20 × ₹3.70
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ27VAL
₹74.00 for 20 + GST
Specifications
- Clamping Voltage
- 62V
- Peak Pulse Power Dissipation (Ppp)
- 180W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 32V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±15KV (air), ±8KV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Working voltages: 24V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESDONCAN1LT1G#C2905619TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,290 | ₹11.56 · 3,290 in stock | View |
 | PESD1FLEX#C2905640TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,250 | ₹9.82 · 1,250 in stock | View |
 | PESD24VL2BT#C2890125TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 8,760 | ₹7.67 · 8,760 in stock | View |
 | TPESD762DBZR#C53340942TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,795 | ₹10.69 · 2,795 in stock | View |
 | TPESD1CAN#C521949TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,430 | ₹6.93 · 2,430 in stock | View |
