TECH PUBLICDatasheet (PDF)

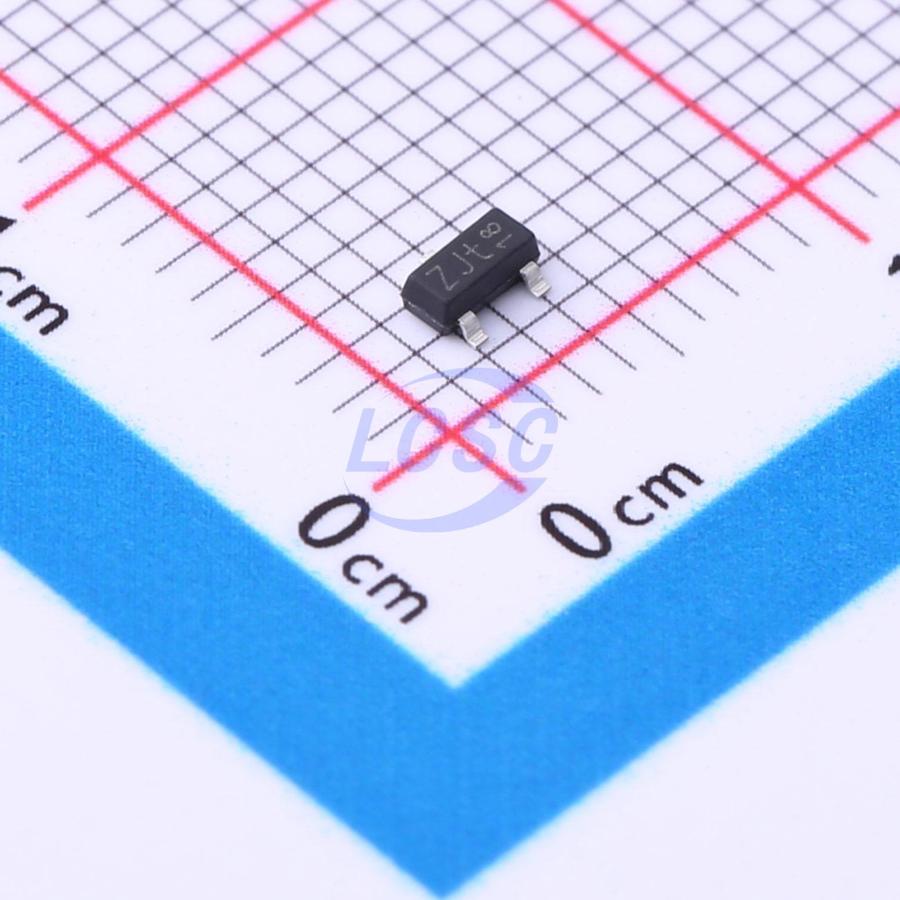

PESD1FLEX
65VC Clamp 3.5A@8/20us Ipp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 24VWM 65VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD1FLEX
- Store part #
- C2905640
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C2905640
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.82 | ₹98.20 |
| 100+ | ₹7.74 | ₹774.00 |
| 300+ | ₹6.69 | ₹2,007.00 |
| 3,000+ | ₹5.91 | ₹17,730.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
| 9,000+ | ₹4.97 | ₹44,730.00 |
10 × ₹9.82
₹98.20
excl. GST
₹115.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD1FLEX
₹98.20 for 10 + GST
Specifications
- Clamping Voltage
- 65V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 180W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- CAN Bus Protection
- Automotive Appllcatrons
Key features
- 180W peak pulse power(8/20us)
- Ultralow leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±23KV Contact discharge: ±15KV
- IEC61000 - 4 - 4(EFT)40A(5/50ns)
- IEC61000 - 4 - 5(Lightning)3.5A(8/20μs)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESDONCAN1LT1G#C2905619TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,290 | ₹11.56 · 3,290 in stock | View |
 | PESD24VL2BT#C2890125TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 8,760 | ₹7.67 · 8,760 in stock | View |
 | MMBZ27VAL#C2835454TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,780 | ₹3.70 · 1,780 in stock | View |
 | TPESD762DBZR#C53340942TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,795 | ₹10.69 · 2,795 in stock | View |
 | TPESD1CAN#C521949TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,430 | ₹6.93 · 2,430 in stock | View |
