MIRACLE POWERDatasheet (PDF)

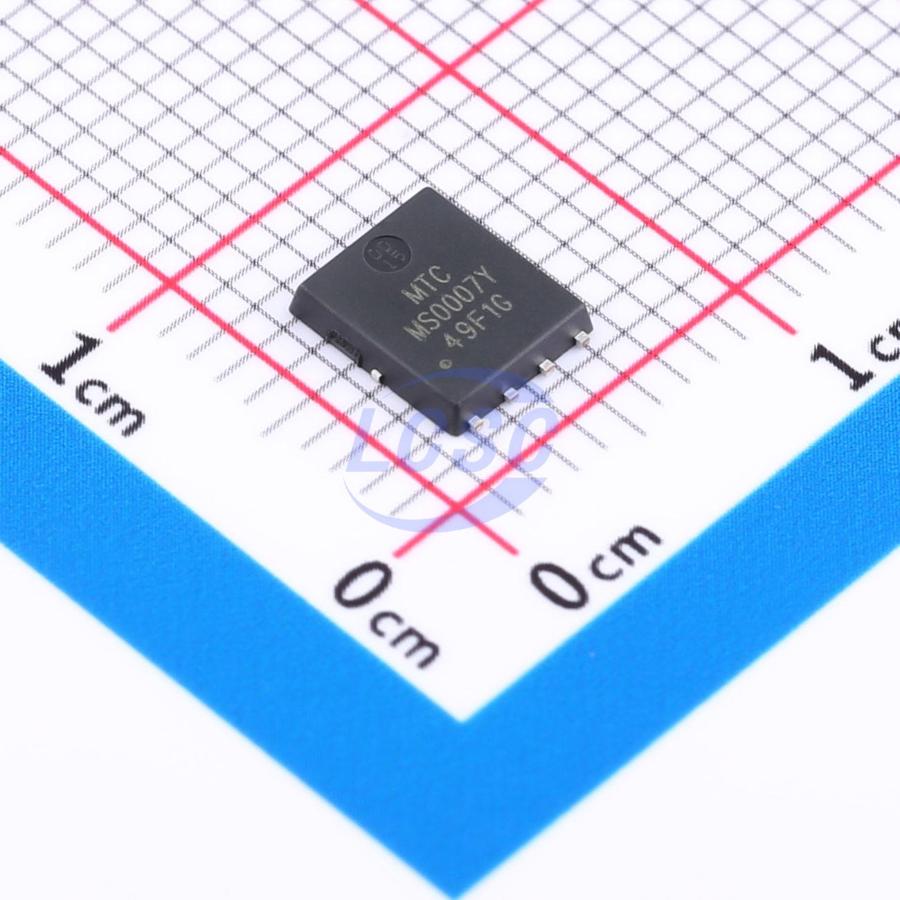

MS0007Y
N-Channel 100V 83A 83W Surface Mount PDFN-8(5x6)
PDFN-8(5x6)RoHSActive
MOSFET N-CH 100V 83A PDFN-8(5x6)
- Manufacturer
- MIRACLE POWER
- Manufacturer part #
- MS0007Y
- Store part #
- C47361205
- Package / case
- PDFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C47361205
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.25 | ₹216.25 |
| 50+ | ₹35.01 | ₹1,750.50 |
| 150+ | ₹31.47 | ₹4,720.50 |
| 500+ | ₹27.07 | ₹13,535.00 |
| 2,500+ | ₹25.11 | ₹62,775.00 |
| 5,000+ | ₹23.93 | ₹1,19,650.00 |
5 × ₹43.25
₹216.25
excl. GST
₹255.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MS0007Y
₹216.25 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 83A
- Output Capacitance(Coss)
- 806pF
- Ciss-Input Capacitance
- 2.58nF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 8.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Applications
- High Frequency Switching and Synchronous
- DC/DC Converter
Key features
- 100V, 83A, RDS(ON)(Typ.) = 5.6mΩ @ VGS = 10V
- Reliable and Rugged
- Fast Switching Speed
- Green Device Available
- 100% EAS Guaranteed
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WMB043N10LGS#C3039373Wayon · PDFN5060-8L | Wayon | PDFN5060-8L | 493 | ₹108.64 · 493 in stock | View |
 | ESAC80SN10#C42434108ElecSuper · PDFN5x6-8L | ElecSuper | PDFN5x6-8L | 2,645 | ₹44.96 · 2,645 in stock | View |
 | DON110N12T#C48542685DOINGTER · DFN5x6-8 | DOINGTER | DFN5x6-8 | 2,111 | ₹66.71 · 2,111 in stock | View |
 | MSB002Y#C47361212MIRACLE POWER · PDFN-8L(5x6) | MIRACLE POWER | PDFN-8L(5x6) | 94 | ₹72.29 · 94 in stock | View |
 | SKQ90N10AD#C5334593Shikues · PDFN-8L(5x6) | Shikues | PDFN-8L(5x6) | 3,505 | ₹71.80 · 3,505 in stock | View |
