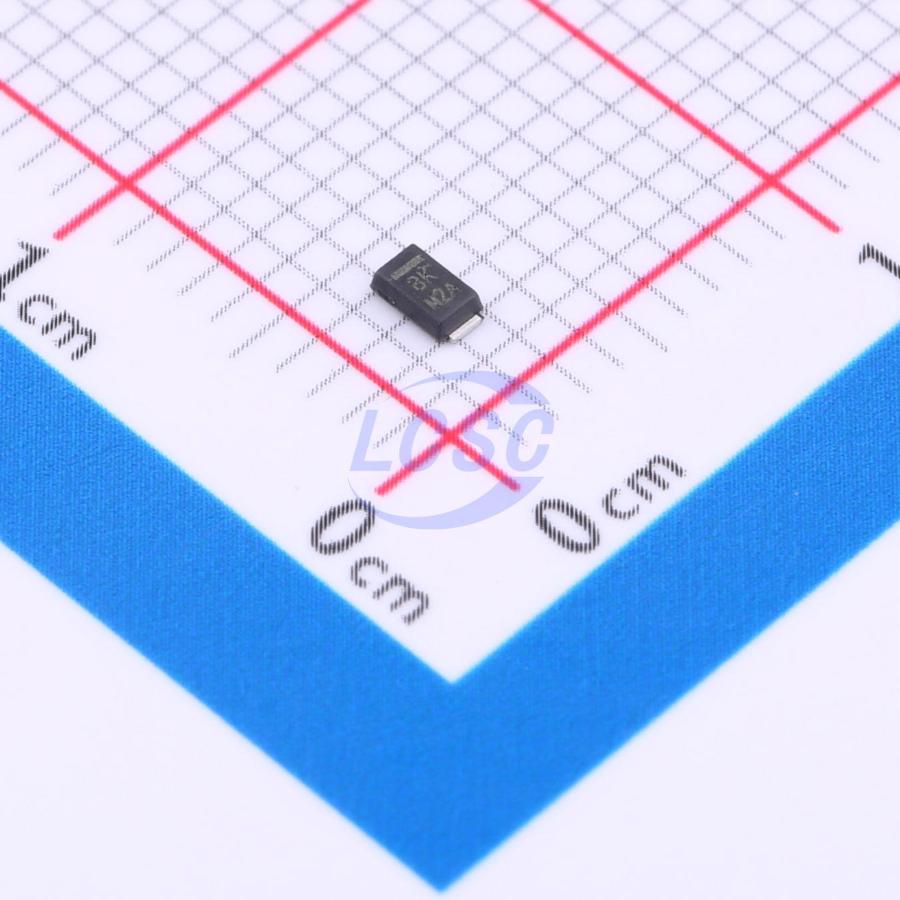

MSMP14A-M3/89A
23.2VC Clamp 6.5A@10/1000us Ipp TVS DIODE MicroSMP
MicroSMPROHS3 CompliantActive
TVS DIODE 14VWM 23.2VC MicroSMP
- Manufacturer
- VISHAY
- Manufacturer part #
- MSMP14A-M3/89A
- Store part #
- C1973890
- Package / case
- MicroSMP
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,675 in stock
#C1973890
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.65 | ₹93.25 |
| 50+ | ₹16.09 | ₹804.50 |
| 150+ | ₹14.98 | ₹2,247.00 |
| 500+ | ₹13.61 | ₹6,805.00 |
| 2,500+ | ₹12.99 | ₹32,475.00 |
| 4,500+ | ₹12.63 | ₹56,835.00 |
5 × ₹18.65
₹93.25
excl. GST
₹110.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
MSMP14A-M3/89A
₹93.25 for 5 + GST
Specifications
- Clamping Voltage
- 24.4V
- Peak Pulse Current (Ipp)
- 6.2A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 150W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 18.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for protecting sensitive equipment against transient overvoltages.
Key features
- Very low profile - typical height of 0.65 mm
- Ideal for automated placement
- RoHS COMPLIANT
- Oxide planar chip junction
- HALOGEN FREE
- Unidirectional polarity only
- Peak pulse power: 150 W (10/1000 μs)
- ESD capability: 15 kV (air), 8 kV (contact)
- Meets MSL level 1, per J-STD-020C, LF maximum peak of 260 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSMP16A-M3/89A#C3700110VISHAY · MicroSMP(DO-219AD) | VISHAY | MicroSMP(DO-219AD) | 500 | ₹44.12 · 500 in stock | View |
 | MSMP15A-M3/89A#C3707547VISHAY · MicroSMP(DO-219AD) | VISHAY | MicroSMP(DO-219AD) | On request | ₹52.40 · 0 in stock | View |
| MSMP13A-M3/89A#C1973838VISHAY · MicroSMP | VISHAY | MicroSMP | On request | ₹6.14 · 0 in stock | View | |
