VISHAYDatasheet (PDF)

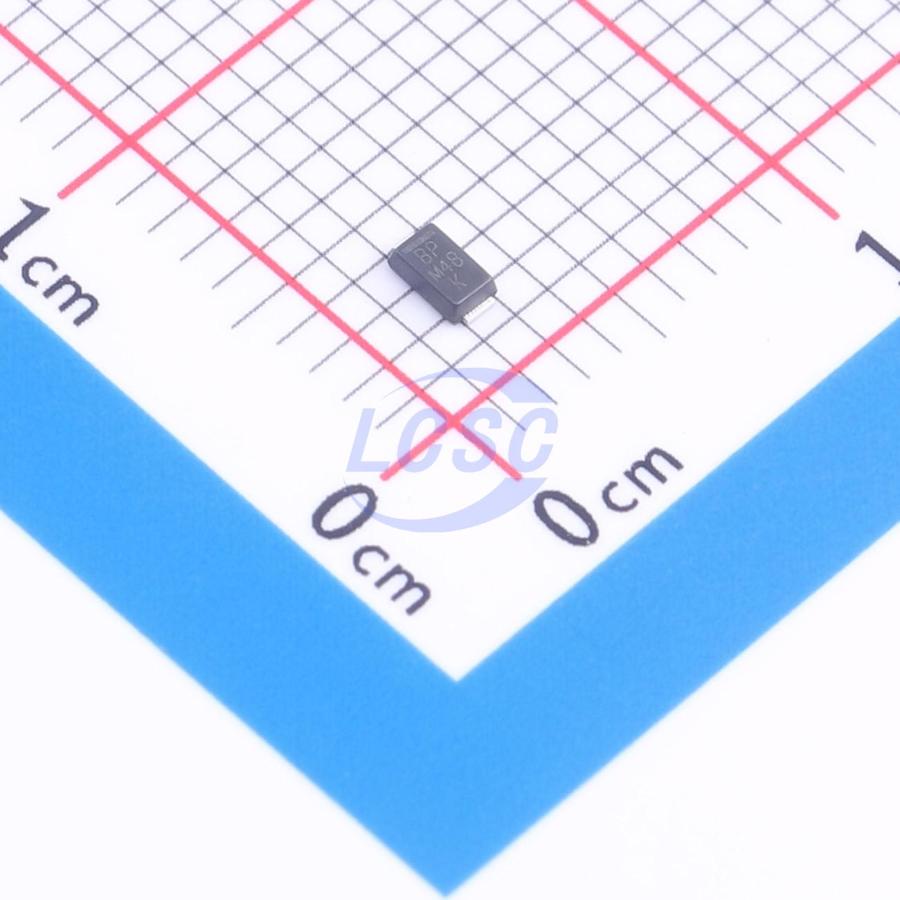

MSMP16A-M3/89A
26VC Clamp 5.8A Ipp TVS DIODE MicroSMP(DO-219AD)
MicroSMP(DO-219AD)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- MSMP16A-M3/89A
- Store part #
- C3700110
- Package / case
- MicroSMP(DO-219AD)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C3700110
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.12 | ₹220.60 |
| 50+ | ₹34.89 | ₹1,744.50 |
| 150+ | ₹30.93 | ₹4,639.50 |
| 500+ | ₹26.00 | ₹13,000.00 |
5 × ₹44.12
₹220.60
excl. GST
₹260.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
MSMP16A-M3/89A
₹220.60 for 5 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.8A
- Peak Pulse Power Dissipation (Ppp)
- 150W
- Number of Channels
- 1
- Voltage - Breakdown
- 17.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- Sensitive electronic equipment protection
- IC protection
- MOSFET protection
- Sensor unit signal line protection
Key features
- Ultra-low profile — typical height 0.65mm
- Ideal for automated placement
- Oxide planar chip junction
- Unidirectional polarity only
- Peak pulse power: 150W (10/1000μs)
- ESD capability: 15kV (air), 8kV (contact)
- MSL Level 1 per J-STD-020C, LF max peak 260°C
- AEC-Q101 qualified
- Automotive ordering code: base part number NHM3 for MSMP6.0A to MSMP8.0A
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSMP14A-M3/89A#C1973890VISHAY · MicroSMP | VISHAY | MicroSMP | 1,675 | ₹18.65 · 1,675 in stock | View |
 | MSMP17A-M3/89A#C50283870VISHAY · DO-219AD | VISHAY | DO-219AD | 430 | ₹18.55 · 430 in stock | View |
 | MSMP15A-M3/89A#C3707547VISHAY · MicroSMP(DO-219AD) | VISHAY | MicroSMP(DO-219AD) | On request | ₹52.40 · 0 in stock | View |
