VISHAYDatasheet (PDF)

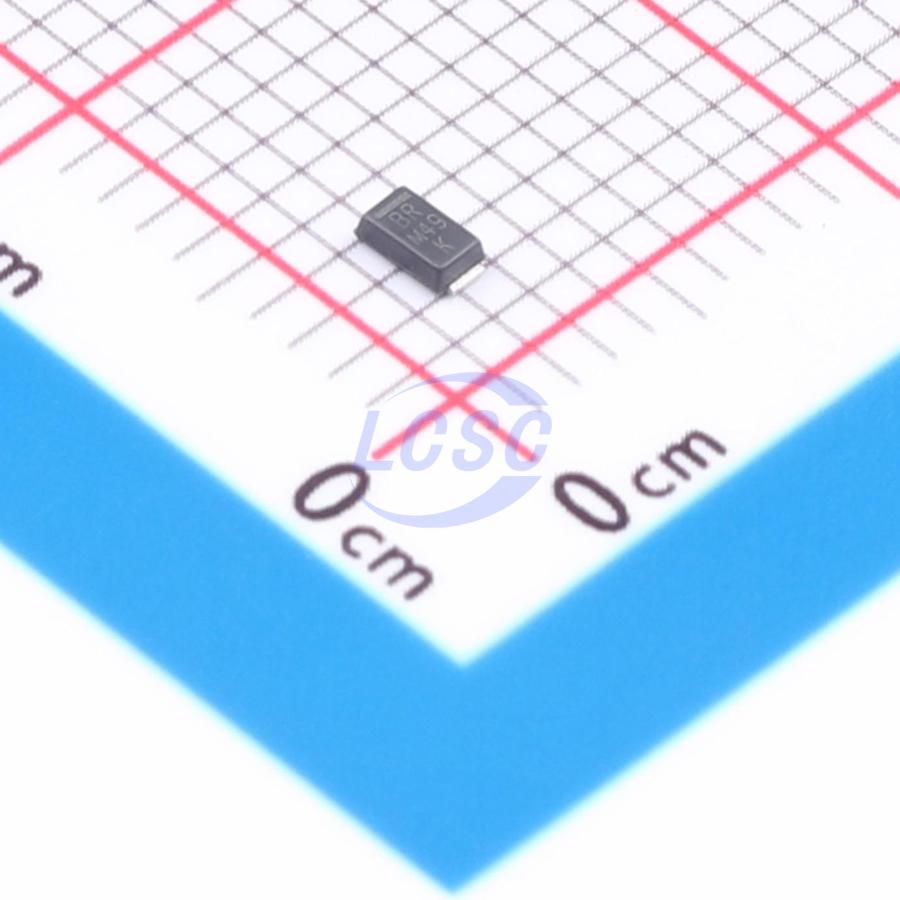

MSMP17A-M3/89A
27.6V 5.4A@10/1000us 150W@10/1000us 20.9V Unidirectional 17V DO-219AD TVS Diodes
DO-219ADRoHSActive
- Manufacturer
- VISHAY
- Manufacturer part #
- MSMP17A-M3/89A
- Store part #
- C50283870
- Package / case
- DO-219AD
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
430 in stock
#C50283870
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.55 | ₹92.75 |
| 50+ | ₹15.80 | ₹790.00 |
| 150+ | ₹14.42 | ₹2,163.00 |
| 500+ | ₹13.38 | ₹6,690.00 |
| 2,500+ | ₹12.56 | ₹31,400.00 |
| 4,500+ | ₹12.15 | ₹54,675.00 |
5 × ₹18.55
₹92.75
excl. GST
₹109.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
MSMP17A-M3/89A
₹92.75 for 5 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 150W@10/1000us
- Voltage - Breakdown
- 20.9V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Applications
- For protection of sensitive electronic equipment against voltage transients on IC, MOSFET, and sensor unit signal lines caused by inductive load switching and lightning strikes, safeguarding sensitive devices from transient overvoltage.
Key features
- Ultra-thin profile, typical height 0.65mm
- Compatible with automatic placement
- Oxide planar chip junction
- Unidirectional polarity only
- Peak pulse power: 150W (10/1000μs)
- ESD capability: 15kV (air), 8kV (contact)
- MSL level 1 per J-STD-020C, LF max peak 260°C
- AEC-Q101 qualified
- Material categorization: for compliance definitions see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSMP16A-M3/89A#C3700110VISHAY · MicroSMP(DO-219AD) | VISHAY | MicroSMP(DO-219AD) | 500 | ₹44.12 · 500 in stock | View |
| MSMP18A-M3/89A#C1975161VISHAY · MicroSMP | VISHAY | MicroSMP | On request | ₹7.46 · 0 in stock | View | |
