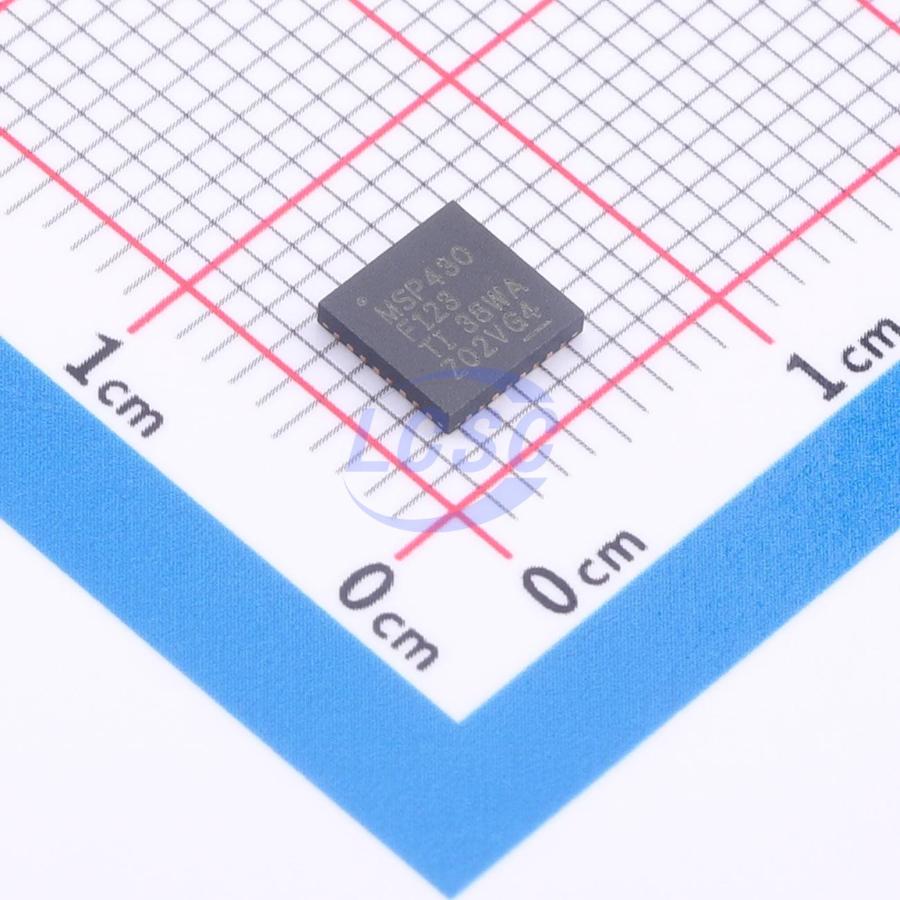

MSP430F123IRHBR

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs. The MSP430F12x series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer and twenty-two I/O pins. The MSP430F12x series also has a built-in communication capability using asynchronous (UART) and synchronous (SPI) protocols in addition to a versatile analog comparator. Typical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data and display them or transmit them to a host system. Stand alone RF sensor front end is another area of application. The I/O port inputs provide single slope A/D conversion capability on resistive sensors.

Applications

• sensor systems that capture analog signals, convert them to digital values, and then process the data and display them or transmit them to a host system
• Stand alone RF sensor front end

Key features

• Low Supply Voltage Range 1.8 V to 3.6 V
• Ultralow-Power Consumption:
• Active Mode: 200 μA at 1 MHz, 2.2 V
• Standby Mode: 0.7 μA
• Off Mode (RAM Retention): 0.1 μA
• Five Power Saving Modes
• Wake-Up From Standby Mode in less than 6 μs
• 16-Bit RISC Architecture, 125 ns Instruction Cycle Time
• Basic Clock Module Configurations:
• Various Internal Resistors
• Single External Resistor
• 32 kHz Crystal High Frequency Crystal
• Resonator
• External Clock Source
• 16-Bit Timer_A With Three Capture/Compare Registers
• On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion
• Serial Communication Interface (USART0)
• Software-Selects Asynchronous UART or Synchronous SPI
• Serial Onboard Programming, No External Programming Voltage Needed
• Programmable Code Protection by Security Fuse
