MSP430F47183IPZR

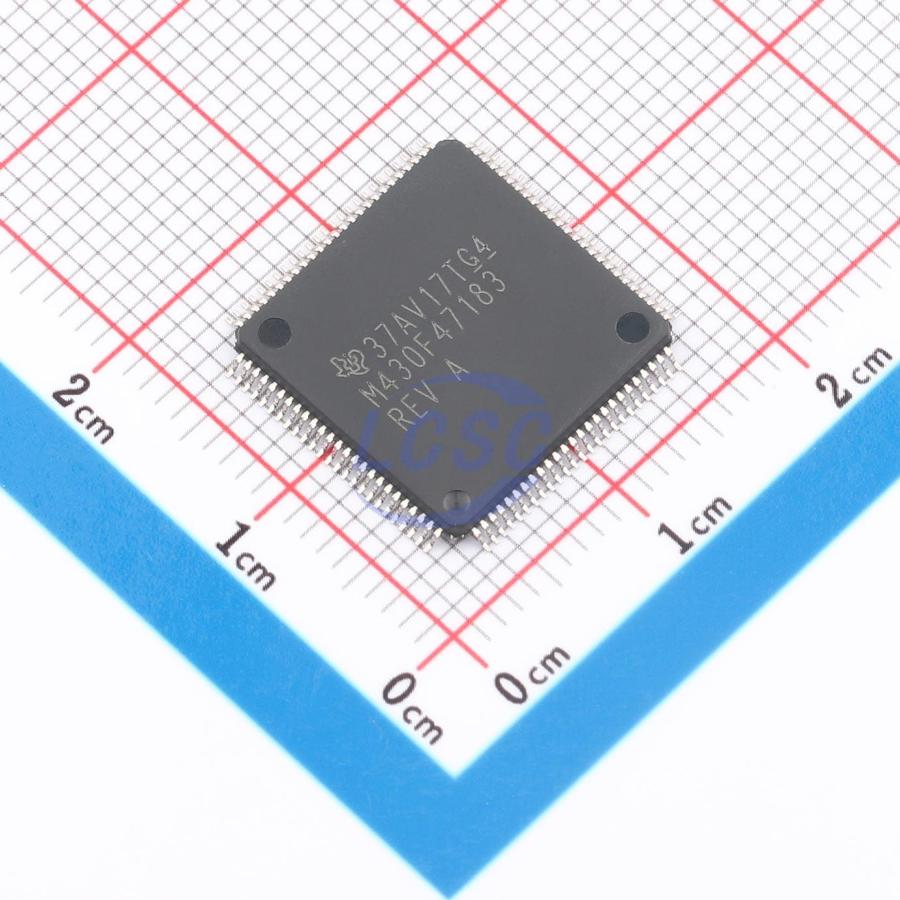

MSP430 CPU16 16 Bit 16MHz QFP-100(14x14) Microcontrollers RoHS

QFP-100(14x14)ROHS3 CompliantActive

16MHz single-phase metering MCU with 3 Sigma-Delta ADCs, 160-segment LCD, DMA, 116KB flash memory, and 8KB RAM

Manufacturer: TI
Manufacturer part #: MSP430F47183IPZR
Store part #: C2053660
Package / case: QFP-100(14x14)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C2053660

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹1,751.36	₹1,751.36
10+	₹1,695.25	₹16,952.50

Quantity (min 1)

1 × ₹1,751.36

₹1,751.36

excl. GST

₹2,066.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

MSP430F47183IPZR

₹1,751.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 16bit
Number of I/O: 72
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.8V~3.6V
Program Memory Type: FLASH
Program Storage Size: 116KB
CPU Core: MSP430 CPU16
Core Size: 16 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 4.7 g

Overview

The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs. The MSP430F471xx series are microcontroller configurations targeted to single-phase and poly-phase electricity meters with three, six, or seven 16-bit sigma-delta A/D converters. Each channel has a differential input pair and programmable input gain. Also integrated are two 16-bit timers, four universal serial communication interfaces (USCI), DMA, 68 I/O pins, and a liquid crystal driver (LCD) with integrated contrast control.

Applications

Single-phase and polyphase energy meters
Portable measurement applications
LCD driver with contrast control for up to 160 segments

Key features

Low Supply-Voltage Range: 1.8 V to 3.6 V
Ultralow Power Consumption -- Active Mode: 350 μA at 1 MHz, 2.2 V -- Standby Mode: 1.1 μA -- Off Mode (RAM Retention): 0.2 μA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 μs
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
Three-Channel Internal DMA
Three, Six or Seven 16-Bit Sigma-Delta Analog-to-Digital (A/D) Converters With Differential PGA Inputs
16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers
16-Bit Timer_A With Three Capture/Compare Registers
On-Chip Comparator
Four Universal Serial Communication Interface (USCI) Modules -- USCI_A0 and USCI_A1 -- Enhanced UART Supporting Auto-Baudrate Detection -- IrDA Encoder and Decoder -- Synchronous SPI -- USCI_B0 and USCI_B1 -- I2C -- Synchronous SPI
Integrated LCD Driver With Contrast Control for Up to 160 Segments
Basic Timer With Real-Time Clock Feature
32-Bit Hardware Multiplier
Brownout Detector
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Serial Onboard Programming, No External Programming Voltage Needed
Programmable Code Protection by Security Fuse
Bootstrap Loader
On-Chip Emulation Module
Available in a 100-Pin Plastic Quad Flatpack (QFP) Package
