MSP430F47186IPZR

The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs. The MSP430F471xx series are microcontroller configurations targeted to single-phase and poly-phase electricity meters with three, six, or seven 16-bit sigma-delta A/D converters. Each channel has a differential input pair and programmable input gain. Also integrated are two 16-bit timers, four universal serial communication interfaces (USCI), DMA, 68 I/O pins, and a liquid crystal driver (LCD) with integrated contrast control.

Applications

• Single-phase and polyphase energy meters
• Portable measurement applications
• LCD driver with contrast control for up to 160 segments

Key features

• Low Supply-Voltage Range: 1.8 V to 3.6 V
• Ultralow Power Consumption -- Active Mode: 350 μA at 1 MHz, 2.2 V -- Standby Mode: 1.1 μA -- Off Mode (RAM Retention): 0.2 μA
• Five Power-Saving Modes
• Wake-Up From Standby Mode in Less Than 6 μs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Three-Channel Internal DMA
• Three, Six or Seven 16-Bit Sigma-Delta Analog-to-Digital (A/D) Converters With Differential PGA Inputs
• 16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers
• 16-Bit Timer_A With Three Capture/Compare Registers
• On-Chip Comparator
• Four Universal Serial Communication Interface (USCI) Modules -- USCI_A0 and USCI_A1 -- Enhanced UART Supporting Auto-Baudrate Detection -- IrDA Encoder and Decoder -- Synchronous SPI -- USCI_B0 and USCI_B1 -- I2C -- Synchronous SPI
• Integrated LCD Driver With Contrast Control for Up to 160 Segments
• Basic Timer With Real-Time Clock Feature
• 32-Bit Hardware Multiplier
• Brownout Detector
• Supply Voltage Supervisor/Monitor With Programmable Level Detection
• Serial Onboard Programming, No External Programming Voltage Needed
• Programmable Code Protection by Security Fuse
• Bootstrap Loader
• On-Chip Emulation Module

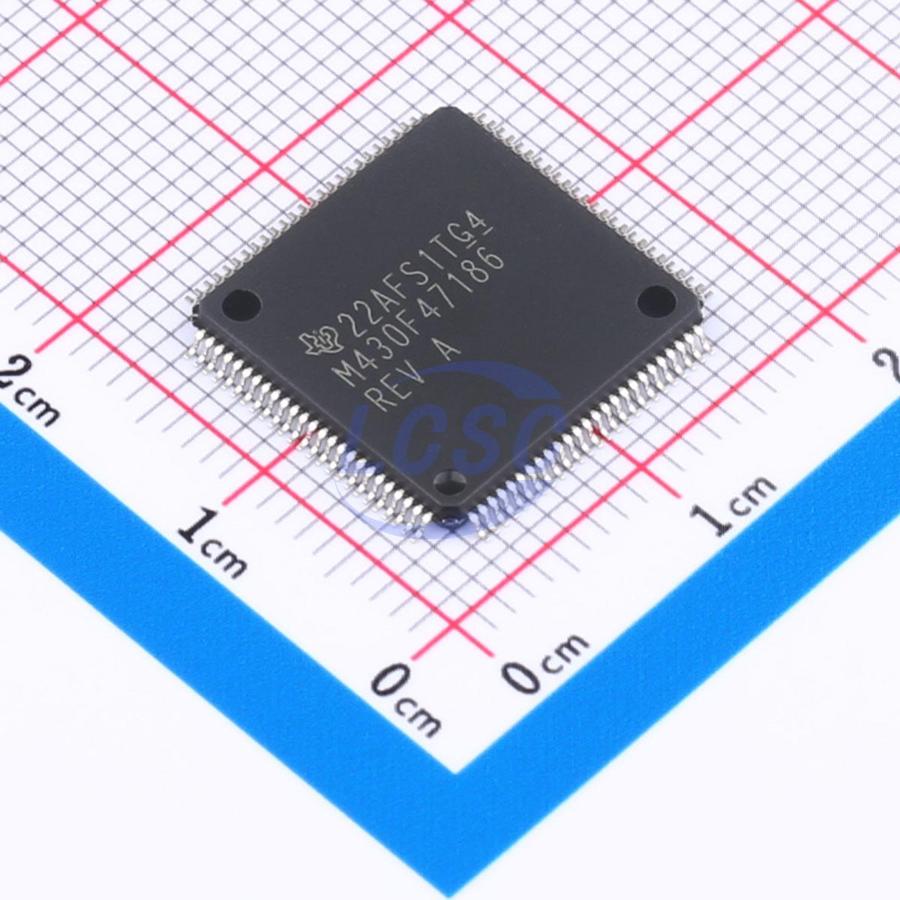

• Available in a 100-Pin Plastic Quad Flatpack (QFP) Package
