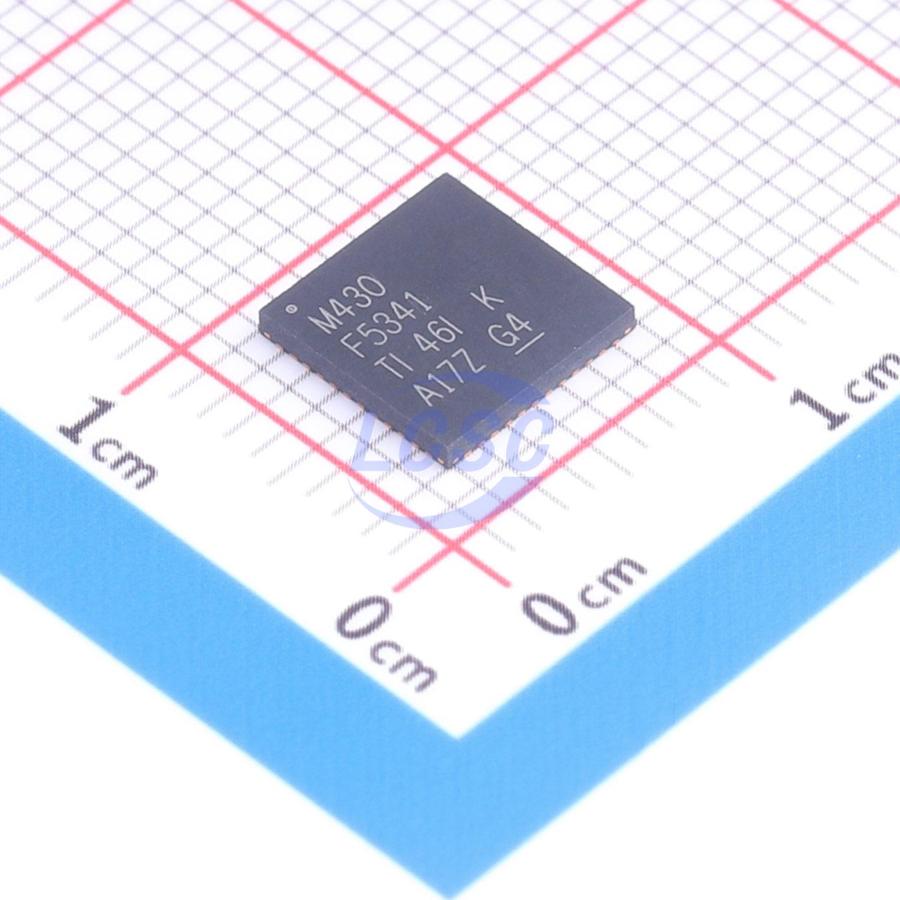

MSP430F5341IRGZR

TI MSP series ultra-low power microcontrollers come in a wide variety, with each member device equipped with different peripheral sets to meet the needs of various applications. This architecture, used in conjunction with multiple low-power modes, is optimized to extend battery life in portable measurement applications. The microcontroller features a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator that helps achieve maximum coding efficiency. This digitally controlled oscillator (DCO) enables the microcontroller to wake up from a low-power mode to an active mode in 3.5 μs (typical). MSP430F534x MCU is configured with 4 16-bit timers, 1 high-performance 12-bit ADC, 2 USCI, 1 hardware multiplier, DMA, 1 RTC module with alarm function, and 38 I/O pins.

Applications

• Analog sensor systems
• Digital sensor systems
• Data loggers
• General-purpose applications

Key features

• Supply voltage range: 3.6V down to 1.8V
• Ultra-low power consumption
• Active Mode (AM): all system clocks active
• 290µA/MHz at 8MHz, 3V, Flash program execution (typical)
• 150µA/MHz at 8MHz, 3V, RAM program execution (typical)
• Standby Mode (LPM3):
• RTC with crystal, watchdog, power monitor available, full RAM retention, fast wake-up: 1.9µA at 2.2V, 2.1µA at 3V (typical)
• VLO, general-purpose counter, watchdog, and power monitor available, full RAM retention, fast wake-up: 1.4µA at 3V (typical)
• Off Mode (LPM4):
• Full RAM retention, power monitor available, fast wake-up: 1.1µA at 3V (typical)
• Shutdown Mode (LPM4.5):
• 0.18µA at 3V (typical)
• Wake-up from standby mode in 3.5µs (typical)
• 16-bit RISC architecture, extended memory, system clock up to 25MHz
• Flexible power management system
• Integrated programmable LDO
• Supply voltage supervision, monitoring, and brownout
• Unified clock system
• FLL control loop for frequency stabilization
• Low-power low-frequency internal clock source (VLO)
• Low-frequency trimmed internal reference source (REFO)
• 32kHz watch crystal (XT1)
• High-frequency crystal up to 32MHz (XT2)
• 16-bit Timer_A (TA0) with 5 capture/compare registers
• 16-bit Timer_A (TA1) with 3 capture/compare registers
• 16-bit Timer_A (TA2) with 3 capture/compare registers
• 16-bit Timer_B (TB0) with 7 capture/compare shadow registers
• Two universal serial communication interfaces (USCI)
• USCI_A0 and USCI_A1 each support:
• Enhanced UART with automatic baud-rate detection
• IrDA encoder and decoder
• SPI
• USCI_B0 and USCI_B1 each support:
• I2C
• SPI
• 12-bit ADC with internal reference, sample-and-hold, and auto-scan
• Comparator
• Hardware multiplier supporting 32-bit operations
• Serial in-system programming, no external programming voltage required
• 3-channel internal DMA
• Basic timer with RTC capability
