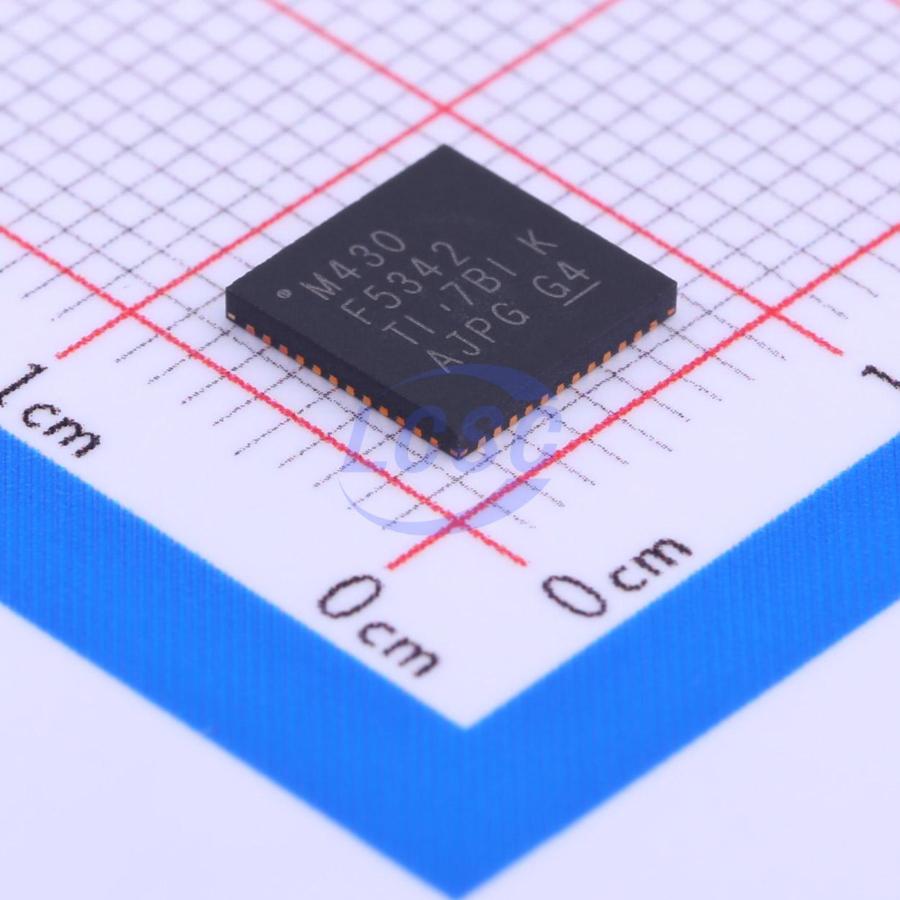

MSP430F5342IRGZR

The MSP family of ultra-low-power microcontrollers consists of several devices that feature different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The microcontroller features a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the microcontroller to wake up from low-power modes to active mode in 3.5 μs (typical). The MSP430F534x MCU configurations feature four 16-bit timers, a high-performance 12-bit ADC, two USCIs, a hardware multiplier, DMA, an RTC module with alarm capabilities, and 38 I/O pins.

Applications

• Analog Sensor Systems
• Digital Sensor Systems
• Data Loggers
• General-Purpose Applications

Key features

• Low Supply-Voltage Range: 3.6 V Down to 1.8 V
• Ultra-Low Power Consumption
• Active Mode (AM): All System Clocks Active
• 290 μA/MHz at 8 MHz, 3 V, Flash Program Execution (Typical)
• 150 μA/MHz at 8 MHz, 3 V, RAM Program Execution (Typical)
• Standby Mode (LPM3):
• Real-Time Clock (RTC) With Crystal, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup: 1.9 μA at 2.2 V, 2.1 μA at 3 V (Typical)
• Low-Power Oscillator (VLO), General-Purpose Counter, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup: 1.4 μA at 3 V (Typical)
• Off Mode (LPM4):
• Full RAM Retention, Supply Supervisor Operational, Fast Wakeup: 1.1 μA at 3 V (Typical)
• Shutdown Mode (LPM4.5):
• 0.18 μA at 3 V (Typical)
• Wake up From Standby Mode in 3.5 μs (Typical)
• 16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
• Flexible Power-Management System
• Fully Integrated LDO With Programmable Regulated Core Supply Voltage
• Supply Voltage Supervision, Monitoring, and Brownout
• Unified Clock System
• FLL Control Loop for Frequency Stabilization
• Low-Power Low-Frequency Internal Clock Source (VLO)
• Low-Frequency Trimmed Internal Reference Source (REFO)
• 32-kHz Watch Crystals (XT1)
• High-Frequency Crystals up to 32 MHz (XT2)
• 16-Bit Timer TA0, Timer_A With Five Capture/Compare Registers
• 16-Bit Timer TA1, Timer_A With Three Capture/Compare Registers
• 16-Bit Timer TA2, Timer_A With Three Capture/Compare Registers
• 16-Bit Timer TB0, Timer_B With Seven Capture/Compare Shadow Registers
• Two Universal Serial Communication Interfaces (USCIs)
• USCI_A0 and USCI_A1 Each Support:
• Enhanced UART With Automatic Baud-Rate Detection
• IrDA Encoder and Decoder
• Synchronous SPI
• USCI_B0 and USCI_B1 Each Support:
• I2C
• Synchronous SPI
• 12-Bit Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold, and Autoscan Feature
• Comparator
• Hardware Multiplier Supports 32-Bit Operations
• Serial Onboard Programming, No External Programming Voltage Needed
• 3-Channel Internal DMA
• Basic Timer With RTC Feature
