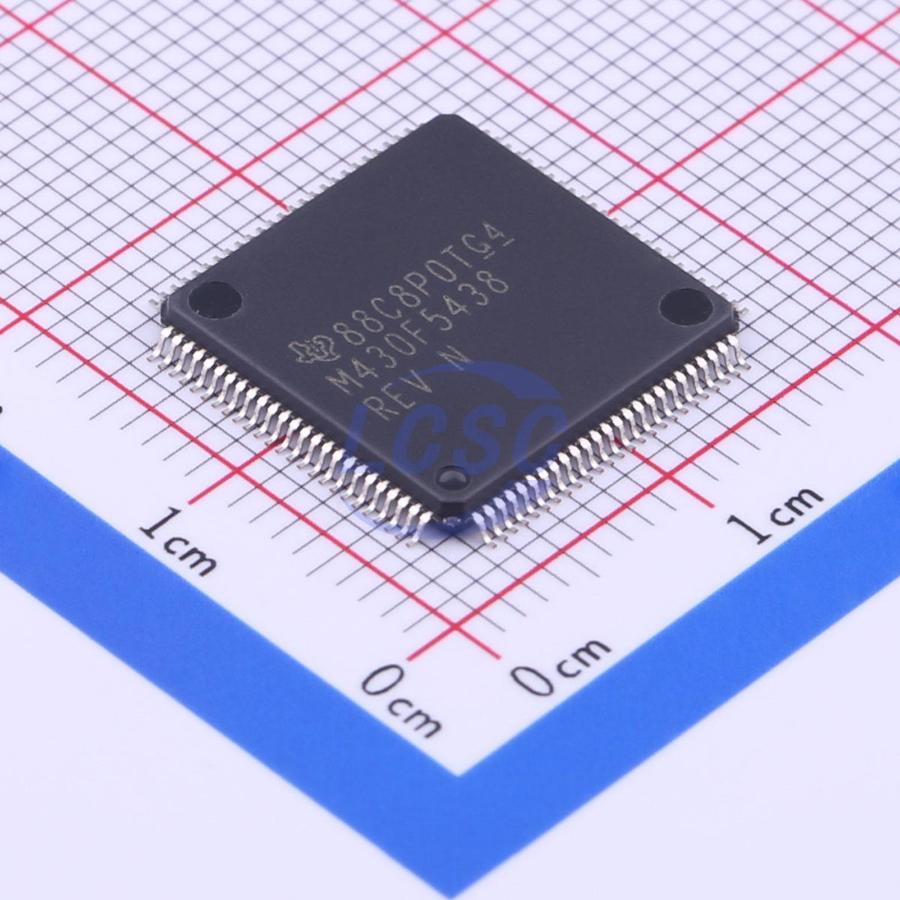

MSP430F5438IPZR

The MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 5 µs. The MSP430F543x(A) and MSP430F541x(A) series are microcontroller configurations with three 16-bit timers, a high performance 12-bit analog-to-digital (A/D) converter, up to four universal serial communication interfaces (USCI), hardware multiplier, DMA, real time clock module with alarm capabilities, and up to 87 I/O pins. Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, hand-held meters, etc.

Applications

• Analog and digital sensor systems
• Digital motor control
• Remote controls
• Thermostats
• Digital timers
• Hand-held meters

Key features

• Low Supply-Voltage Range – 2.2 V to 3.6 V MSP430F543x, MSP430F541x; 1.8 V to 3.6 V MSP430F543xA, MSP430F541xA
• Ultralow Power Consumption:
• Active Mode (AM): 165 μA/μHz at 8 MHz
• Standby Mode (LPM3 RTC Mode): 2.60 μA
• Off Mode (LPM4 RAM Retention): 1.69 μA
• Shutdown Mode (LPM5): 0.1 μA
• Wake-Up From Standby Mode in Less Than 5 µs
• 16-Bit RISC Architecture
• Extended Memory
• Up to 18-MHz System Clock MSP430F543x, MSP430F541x; Up to 25-MHz System Clock MSP430F543xA, MSP430F541xA
• Flexible Power Management System
• Fully Integrated LDO With Programmable Regulated Core Supply Voltage
• Supply Voltage Supervision, Monitoring, and Brownout
• Unified Clock System
• FLL Control Loop for Frequency Stabilization
• Low-Power/Low-Frequency Internal Clock Source (VLO)
• Low-Frequency Trimmed Internal Reference Source (REFO)
• 32-kHz Crystals
• High-Frequency Crystals up to 32 MHz
• 16-Bit Timer0_A5 With Five Capture/Compare Registers
• 16-Bit Timer1_A3 With Three Capture/Compare Registers
• 16-Bit Timer_B7 With Seven Capture/Compare Shadow Registers
• Up to Four Universal Serial Communication Interfaces
• Enhanced UART Supporting Auto-Baudrat Detection
• IrDA Encoder and Decoder
• Synchronous SPI
• I2C
• 12-Bit Analog-to-Digital (A/D) Converter
• Internal Reference
• Sample-and-Hold
• Autoscan Feature
• 12 External Channels, 4 Internal Channels
• Hardware Multiplier Supporting 32-Bit Operations
• Serial Onboard Programming, No External Programming Voltage Needed
• Three Channel Internal DMA
• Basic Timer With Real Time Clock Feature
