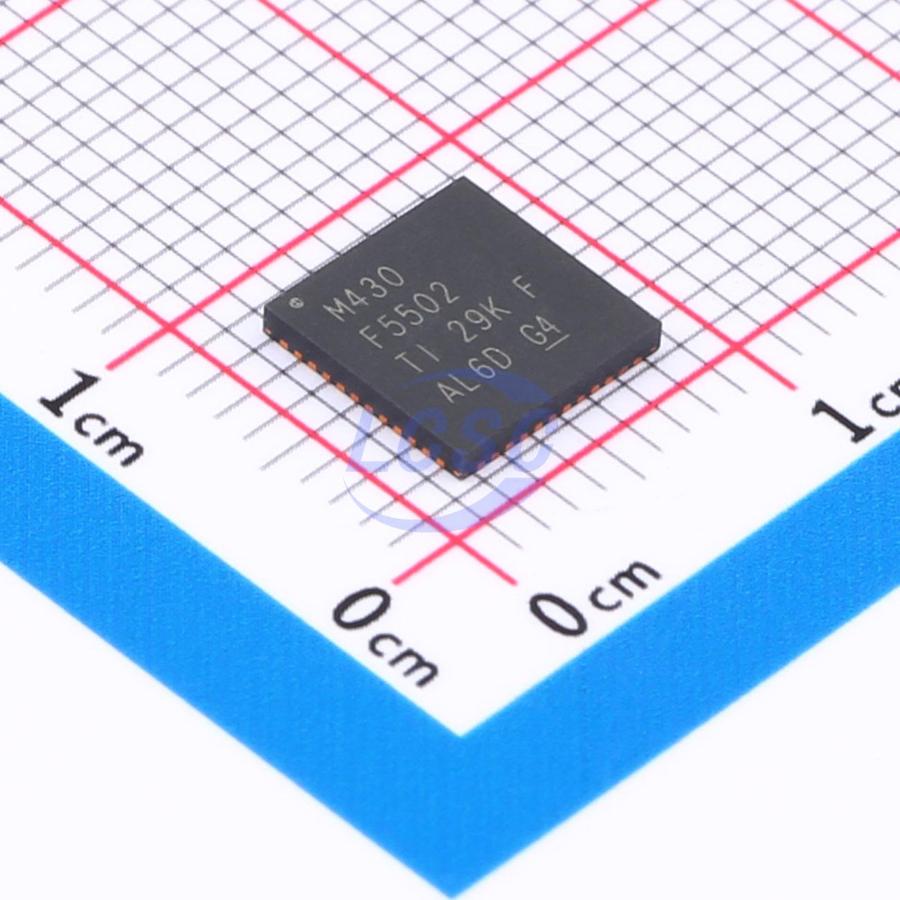

MSP430F5502IRGZT

TI's MSP series of ultra-low-power microcontrollers comes in a wide variety. Each member device is equipped with different peripheral sets to meet various applications. This architecture, when used in conjunction with multiple low-power modes, is the optimal choice for extending the battery life of portable measurement applications. The device features a powerful 16-bit Reduced Instruction Set (RISC) CPU, which uses 16-bit registers and a constant generator to achieve the highest coding efficiency. This Digitally Controlled Oscillator (DCO) enables the device to wake up from the low-power mode to the active mode in less than 5µs. The MSP430F5510, MSP430F5509, and MSP430F5508 devices are configured as microcontrollers, with integrated USB and PHY supporting USB 2.0, four 16-bit timers, one high-performance 10-bit ADC, two USCI (1), one hardware multiplier, DMA, an RTC module with an alarm function, and 31 or 47 I/O pins. The MSP430F5507, MSP430F5506, MSP430F5505, and MSP430F5504 devices are microcontrollers, equipped with integrated USB and PHY supporting USB 2.0, four 16-bit timers, one high-performance 10-bit ADC, one USCI, one hardware multiplier, DMA, an RTC module with an alarm function, and 31 I/O pins. The peripherals of the MSP430F5503, MSP430F5502, MSP430F5501, and MSP430F5500 devices are almost the same as those of the MSP430F5507, MSP430F5506, MSP430F5505, and MSP430F5504 devices, except that the 10-bit ADC is replaced with a comparator. Typical applications include analog and digital sensor systems and data loggers that need to connect to various USB hosts.

Applications

• Analog and digital sensor systems
• Data loggers
• USB host interconnect
• Wireless headsets

Key features

• Low supply voltage range: 3.6V to 1.8V
• Ultra-low power consumption
• Active Mode (AM) with all system clocks active
• 195µA/MHz (typical) at 8MHz, 3V, Flash program execution
• 115µA/MHz (typical) at 8MHz, 3V, RAM program execution
• Standby Mode (LPM3)
• RTC (crystal), watchdog, and power monitor active, full RAM retention, fast wake-up: 1.9μA at 2.2V, 2.1μA at 3V (typical)
• VLO, general-purpose counter, watchdog, and power monitor active, full RAM retention, fast wake-up: 1.4μA at 3V (typical)
• Off Mode (LPM4) full RAM retention, power monitor active, fast wake-up: 1.1μA at 3V (typical)
• Shutdown Mode (LPM4.5): 0.18μA at 3V (typical)
• Wake-up from standby mode in less than 5μs
• 16-bit RISC architecture, extended memory, system clock up to 25MHz
• Flexible power management system
• Built-in programmable LDO
• Supply voltage monitoring, supervision, and brownout
• Unified clock system
• FLL control loop for frequency stabilization
• Low-power low-frequency internal clock source (VLO)
• Low-frequency trimmed internal reference source (REFO)
• 32kHz watch crystal (XT1)
• High-frequency crystal up to 32MHz (XT2)
• 16-bit Timer_A (TA0) with 5 capture/compare registers
• 16-bit Timer_A (TA1) with 3 capture/compare registers
• 16-bit Timer_A (TA2) with 3 capture/compare registers
• 16-bit Timer_B (TB0) with 7 capture/compare shadow registers
• Two USCI modules
• USCI_A0 and USCI_A1 each support:
• Enhanced UART with automatic baud rate detection
• IrDA encoder and decoder
• SPI
• USCI_B0 and USCI_B1 each support:
• I2C
• SPI
• Full-speed USB
• Integrated USB PHY
• Integrated 3.3V and 1.8V USB power supply
• Integrated USB PLL
• 8 input and 8 output endpoints
• 10-bit ADC with window comparator
• Hardware multiplier supporting 32-bit operations
• Serial in-system programming, no external programming voltage required
• 3-channel internal DMA
• Basic timer with RTC capability
