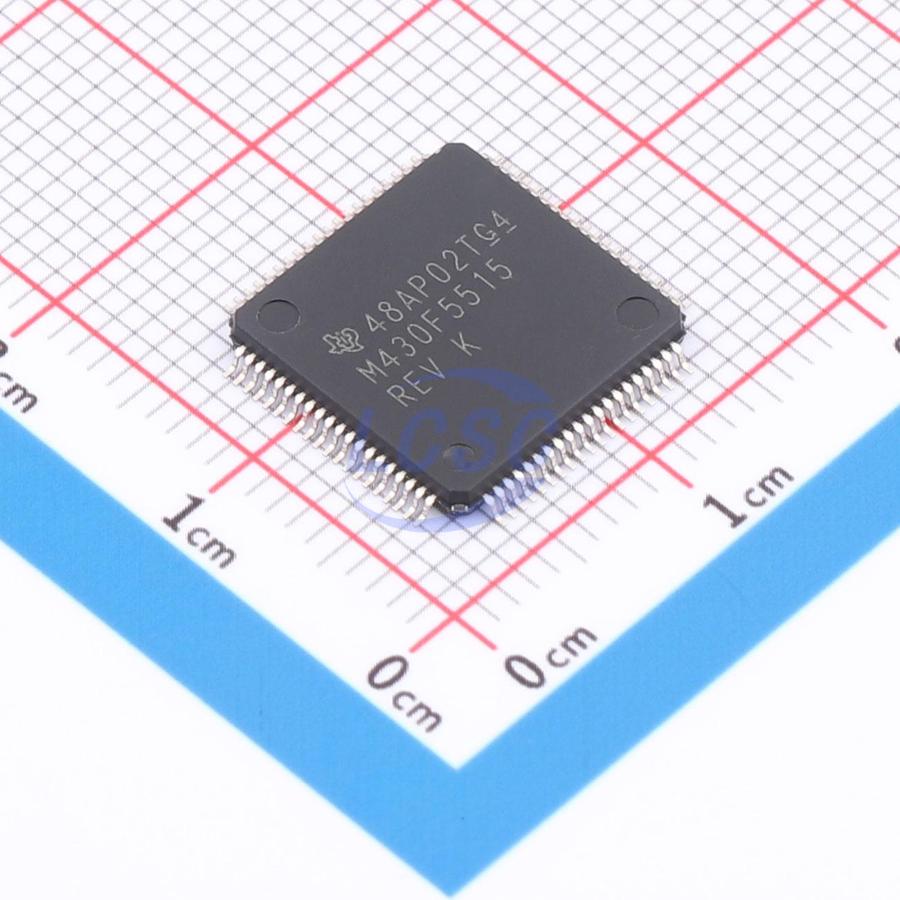

MSP430F5515IPNR

The ultra-low-power microcontrollers of the MSP430 series contain several devices with peripheral sets and can be widely used in various applications. This architecture, combined with multiple low-power modes, is the optimal choice for extending the battery life of portable measurement applications. The microcontroller has a powerful 16-bit Reduced Instruction Set (RISC) CPU, using 16-bit registers and a constant generator for maximum coding efficiency. This Digitally Controlled Oscillator (DCO) allows the device to wake up from low-power mode to active mode in 3.5µs (typical).

Applications

• Analog and digital sensor system data logger
• USB host connectivity

Key features

• Supply voltage range: 3.6V down to 1.8V
• Ultra-low power consumption – Active Mode (AM): – All system clocks active: – 290µA/MHz at 8MHz, 3.0V, Flash program execution (typical); 150µA/MHz at 8MHz, 3.0V, RAM program execution (typical) – Standby Mode (LPM3): – RTC with crystal, watchdog, power monitor available, full RAM retention, fast wake-up: 1.9µA at 2.2V, 2.1µA at 3.0V (typical) – VLO, general-purpose counter, watchdog, power monitor available, full RAM retention, fast wake-up: – 1.4µA at 3.0V (typical) – Off Mode (LPM4): – Full RAM retention, power monitor available, fast wake-up: – 1.1µA at 3.0V (typical) – Shutdown Mode (LPM4.5): – 0.18µA at 3.0V (typical)
• Wake-up from standby mode in 3.5µs (typical)
• 16-bit RISC architecture, extended memory, system clock up to 25MHz
• Flexible power management system – Integrated programmable LDO – Supply voltage monitoring, supervision, and temporary brownout
• Unified clock system – FLL control loop for frequency stabilization – Low-power low-frequency internal clock source (VLO) – Low-frequency trimmed internal reference source (REFO) – 32kHz watch crystal (XT1) – High-frequency crystal up to 32MHz (XT2)
• 16-bit Timer_A (TA0) with 5 capture/compare registers
• 16-bit Timer_A (TA1) with 3 capture/compare registers
• 16-bit Timer_A (TA2) with 3 capture/compare registers
• 16-bit Timer_B (TB0) with 7 capture/compare shadow registers
• 2 universal serial communication interfaces – USCI_A0 and USCI_A1 each support: – Enhanced UART with automatic baud rate detection – IrDA encoder and decoder – SPI – USCI_B0 and USCI_B1 each support: – I2C – SPI
• Full-speed USB – Integrated USB PHY – Integrated 3.3V and 1.8V USB power system – Integrated USB PLL – 8 input and 8 output endpoints
• 12-bit ADC with internal reference, sample-and-hold, and auto-scan (MSP430F552x only)
• Comparator
• Hardware multiplier supporting 32-bit operations
• Serial in-system programming, no external programming voltage required
• 3-channel internal DMA
• Basic timer with RTC capability
