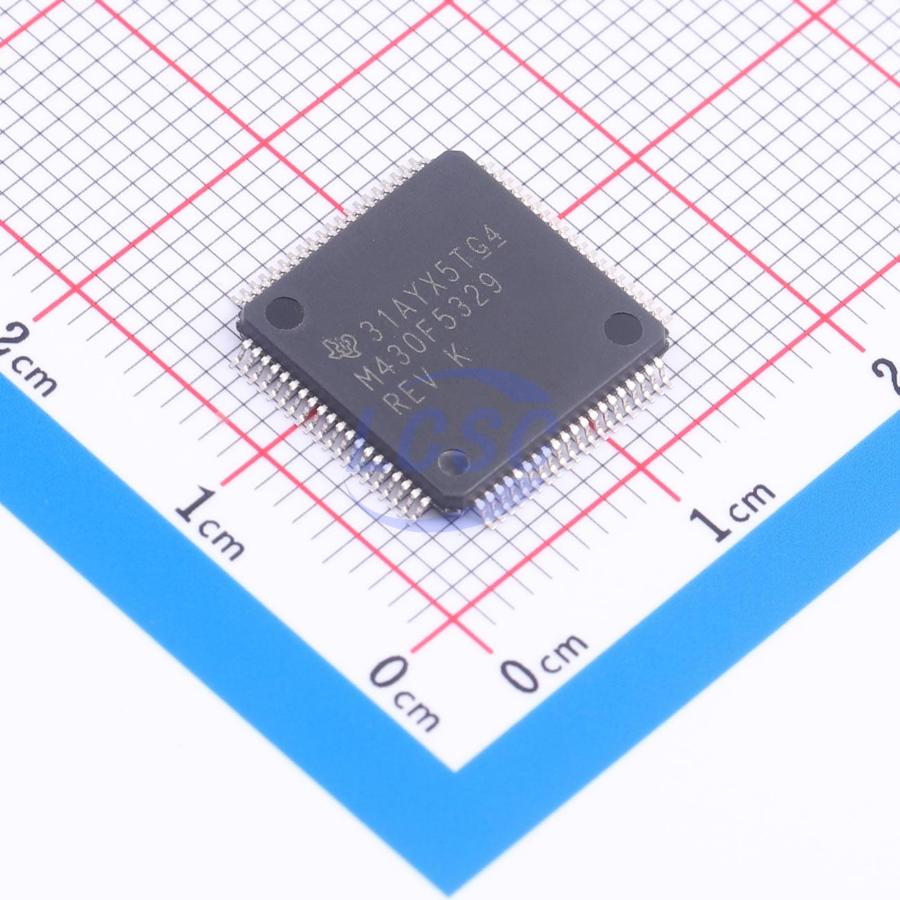

MSP430F5329IPN

The MSP430 series of ultra-low-power microcontrollers comes in a wide variety. Each member device is equipped with different peripheral sets to meet the needs of various applications. This architecture is used in conjunction with multiple low-power modes and is optimized to extend battery life in portable measurement applications. Each of these devices features a powerful 16-bit RISC CPU, using 16-bit registers and a constant generator to achieve maximum coding efficiency. The Digitally Controlled Oscillator (DCO) enables the device to wake up from a low-power mode to an active mode in 3.5 µs (typical). The MSP430F5329, MSP430F5327, and MSP430F5325 are microcontroller configurations with 1 integrated 3.3V LDO, 4 16-bit timers, 1 high-performance 12-bit ADC, 2 USCIs, 1 hardware multiplier, DMA, 1 RTC module with an alarm function, and 63 I/O pins. The MSP430F5328, MSP430F5326, and MSP430F5324 include all these peripherals but have 47 I/O pins. Power supply applications include analog and digital sensor systems, data loggers, and various general-purpose areas.

Applications

• Analog and digital sensor systems
• Data loggers
• General-purpose applications

Key features

• Supply voltage range: 3.6V to 1.8V
• Ultra-low power consumption
• Active Mode (AM): 290µA/MHz (typical) with all system clocks active at 8MHz, 3V, Flash program execution; 150µA/MHz (typical) at 8MHz, 3V, RAM program execution
• Standby Mode (LPM3): RTC with crystal, watchdog, power monitor available, full RAM retention, fast wake-up: 1.9µA at 2.2V, 2.1µA at 3V (typical); VLO, general-purpose counter, watchdog, power monitor available, full RAM retention, fast wake-up: 1.4µA at 3V (typical)
• Off Mode (LPM4): Full RAM retention, power monitor available, fast wake-up: 1.1µA at 3V (typical)
• Shutdown Mode (LPM4.5): 0.18µA at 3V (typical)
• Wake-up from standby mode within 3.5µs (typical)
• 16-bit RISC architecture, extended memory, system clock up to 25MHz
• Flexible power management system
• Built-in programmable LDO
• Supply voltage monitoring, supervision, and brownout
• Unified clock system
• FLL control loop for frequency stabilization
• Low-power low-frequency internal clock source (VLO)
• Low-frequency trimmed internal reference source (REFO)
• 32kHz watch crystal (XT1)
• High-frequency crystal up to 32MHz (XT2)
• 16-bit Timer_A (TA0) with 5 capture/compare registers
• 16-bit Timer_A (TA1) with 3 capture/compare registers
• 16-bit Timer_A (TA2) with 3 capture/compare registers
• 16-bit Timer_B (TB0) with 7 capture/compare shadow registers
• Two USCI
• USCI_A0 and USCI_A1 each support:
• Enhanced UART with automatic baud rate detection
• IrDA encoder and decoder
• SPI
• USCI_B0 and USCI_B1 each support:
• I2C
• Synchronous SPI
• Integrated 3.3V power system
• 12-bit ADC with internal reference, sample-and-hold, and auto-scan
• Comparator
• Hardware multiplier supporting 32-bit operations
• Serial in-system programming, no external programming voltage required
• 3-channel internal DMA
• Basic timer with RTC capability
