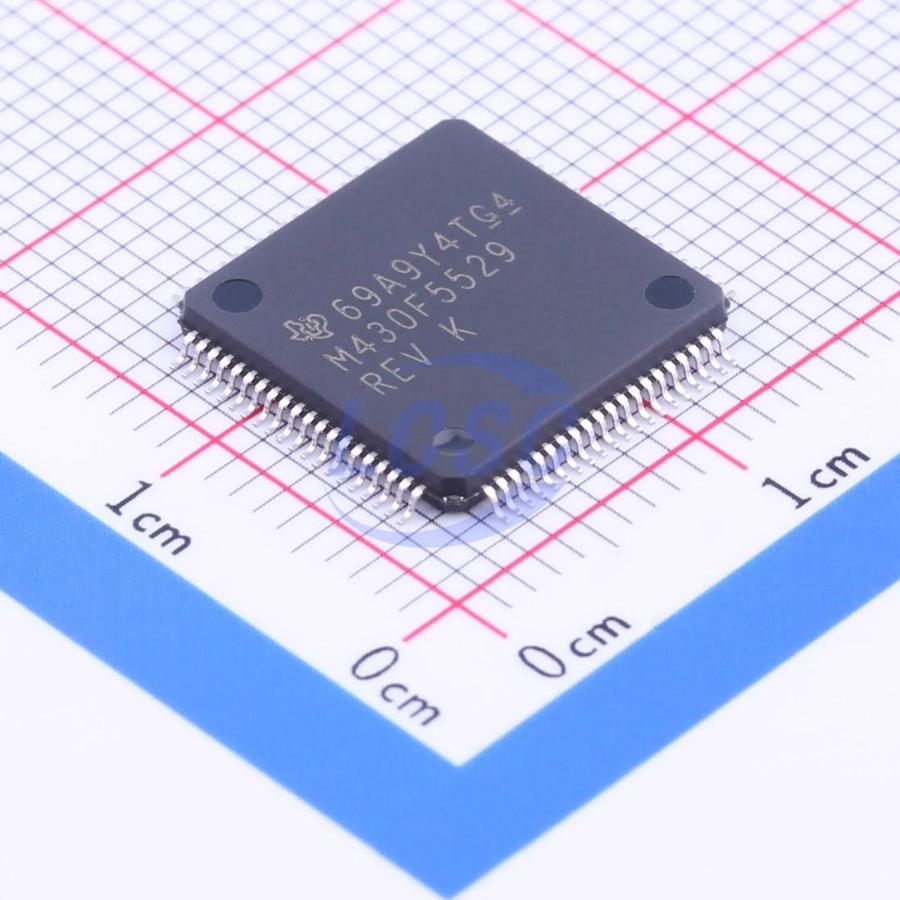

MSP430F5529IPN

Ultra-low-power microcontrollers featuring a rich peripheral set, suitable for a wide range of applications. This architecture, combined with multiple low-power modes, is the optimal choice for extending battery life in portable measurement applications. The microcontroller incorporates a powerful 16-bit RISC CPU with 16-bit registers and a constant generator for maximum code efficiency. The DCO enables the device to wake up from low-power mode to active mode in 3.5μs (typical). The MSP430F5529, MSP430F5527, MSP430F5525, and MSP430F5521 microcontrollers feature integrated USB and PHY with USB 2.0 support, four 16-bit timers, one high-performance 12-bit ADC, two USCIs, one hardware multiplier, DMA, one RTC module with alarm function, and 63 I/O pins. The MSP430F5528, MSP430F5526, MSP430F5524, and MSP430F5522 microcontrollers include the same peripherals but with 47 I/O pins. The MSP430F5519, MSP430F5517, and MSP430F5515 microcontrollers feature integrated USB and PHY with USB 2.0 support, four 16-bit timers, two USCIs, one hardware multiplier, DMA, one RTC module with alarm function, and 63 I/O pins. The MSP430F5514 and MSP430FF5513 microcontrollers include the same peripherals but with 47 I/O pins. Typical applications include analog and digital sensor systems requiring connectivity to various USB hosts, data loggers, and other applications.

Applications

• Analog and digital sensor systems
• Data loggers
• USB host connectivity

Key features

• Supply voltage range: 3.6V down to 1.8V
• Ultra-low power consumption
• Active Mode (AM):
• All system clocks active: 290μA/MHz at 8MHz, 3.0V, Flash program execution (typical); 150μA/MHz at 8MHz, 3.0V, RAM program execution (typical)
• Standby Mode (LPM3):
• RTC with crystal, watchdog, power monitor available, full RAM retention, fast wake-up: 1.9μA at 2.2V, 2.1μA at 3.0V (typical)
• VLO, general-purpose counter, watchdog, power monitor available, full RAM retention, fast wake-up: 1.4μA at 3.0V (typical)
• Off Mode (LPM4):
• Full RAM retention, power monitor available, fast wake-up: 1.1μA at 3.0V (typical)
• Shutdown Mode (LPM4.5):
• 0.18μA at 3.0V (typical)
• Wake-up from standby mode in 3.5μs (typical)
• 16-bit RISC architecture with extended memory, system clock up to 25MHz
• Flexible power management system
• Integrated programmable LDO supply voltage monitoring, supervision, and brownout
• Unified clock system
• FLL control loop for frequency stabilization
• Low-power low-frequency internal clock source (VLO)
