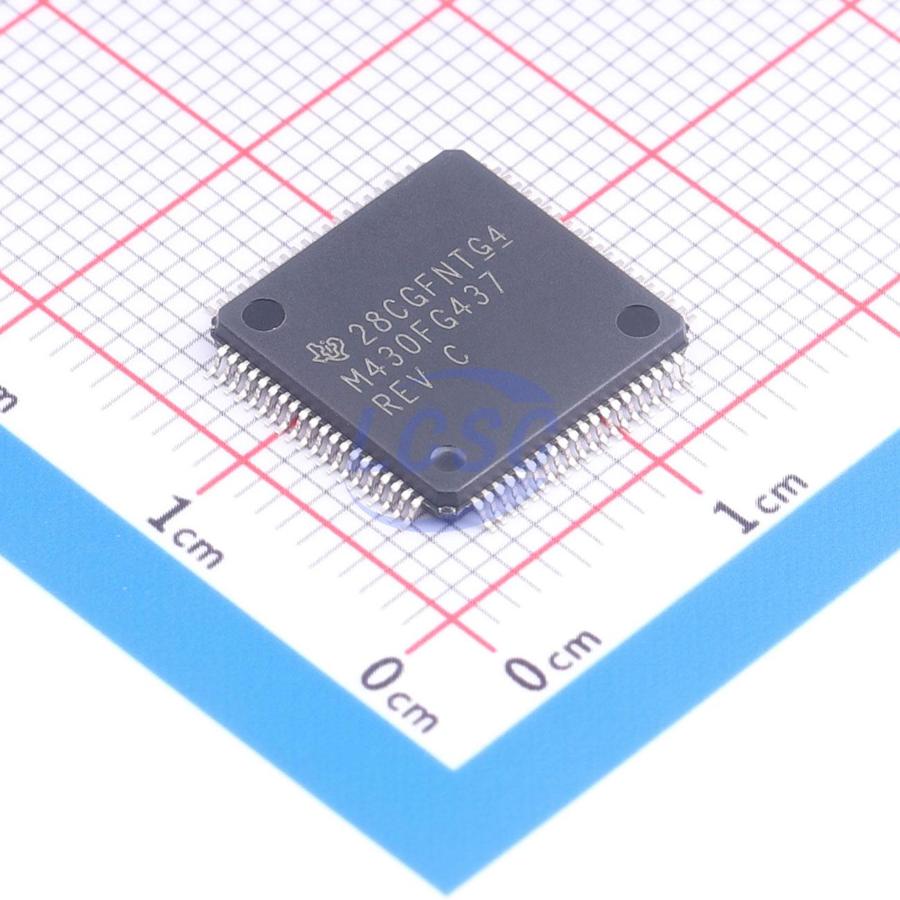

MSP430FG437IPNR

The MSP430 series of ultra-low-power microcontrollers includes a variety of devices, which feature different peripheral sets for various applications. This architecture with five low-power modes is optimized to extend the battery life in portable measurement applications. The device has a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator that helps achieve the highest coding efficiency. The digitally controlled oscillator (DCO) enables the device to wake up from the low-power mode to the active mode in less than 6 μs. The MSP430FG43x microcontroller device has two 16-bit timers, a high-performance 12-bit ADC, two 12-bit DACs, three configurable operational amplifiers, a universal synchronous/asynchronous communication interface, DMA, 48 I/O pins, and an LCD driver.

Applications

• Analog and digital sensor systems
• Digital motor control
• Remote control
• Thermostats
• Digital timer handheld instruments

Key features

• Supply voltage range: 1.8V to 3.6V
• Ultra-low power consumption
• Five power-saving modes
• Wake-up from standby in 6 µs
• 16-bit RISC architecture, 125 ns instruction cycle
• Single-channel internal DMA
• 12-bit ADC with internal reference, sample-and-hold, and auto-scan
• Three configurable operational amplifiers
• Dual 12-bit DAC with synchronization
• 16-bit Timer_A with three capture/compare registers
• 16-bit Timer_B with three capture/compare registers (with shadow)
• On-chip comparator
• USART with software-selectable asynchronous UART or synchronous SPI
• Brownout detector
• Supply voltage supervisor and monitor with programmable level detection
• Bootstrap loader (BSL)
• Serial in-system programming, no external programming voltage required, programmable code protection via security fuse
• Integrated segmented LCD driver supporting up to 128 segments
• Available in 113-ball BGA (ZCA) and 80-pin QFP (PN) packages
