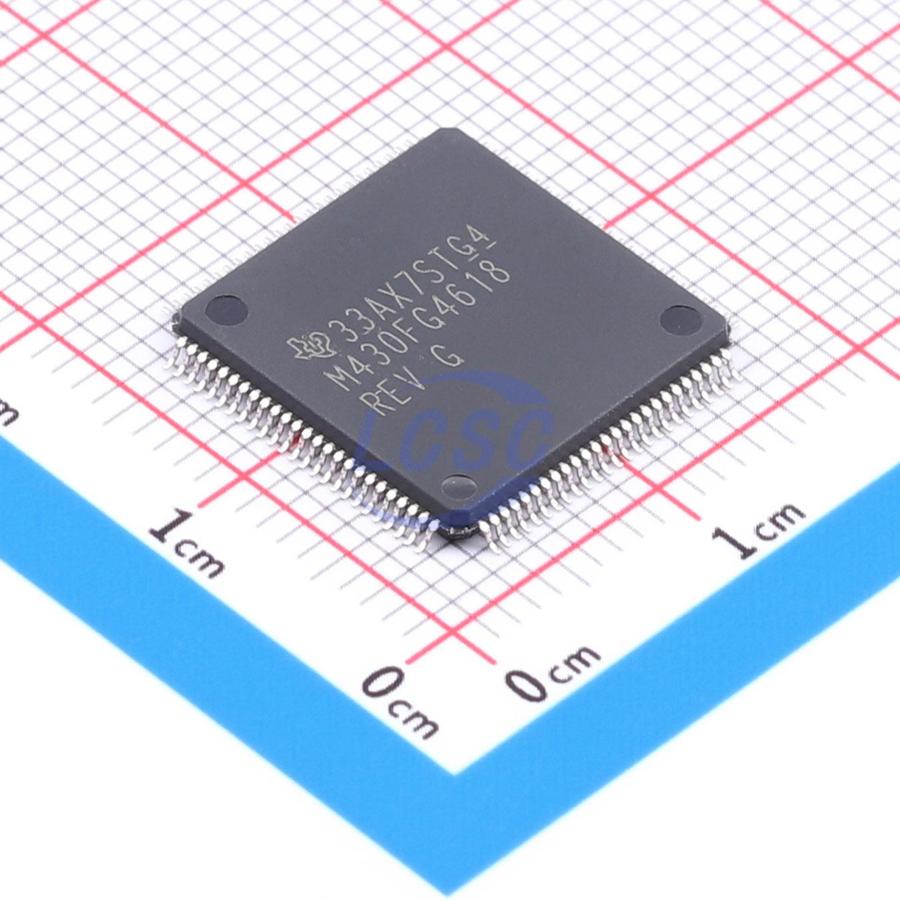

MSP430FG4618IPZR

The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs. The MSP430xG461x series are microcontroller configurations with two 16-bit timers, a high-performance 12-bit A/D converter, dual 12-bit D/A converters, three configurable operational amplifiers, one universal serial communication interface (USCI), one universal synchronous/asynchronous communication interface (USART), DMA, 80 I/O pins, and a liquid crystal display (LCD) driver with regulated charge pump. Typical applications for this device include portable medical applications and e-meter applications.

Applications

• portable medical applications
• e-meter applications

Key features

• Low Supply-Voltage Range: 1.8 V to 3.6 V
• Ultralow-Power Consumption:
• Active Mode: 400 μA at 1 MHz, 2.2 V
• Standby Mode: 1.3 μA
• Off Mode (RAM Retention): 0.22 μA
• Five Power-Saving Modes
• Wake-Up From Standby Mode in Less Than 6 μs
• 16-Bit RISC Architecture, Extended Memory, 125-ns Instruction Cycle Time
• Three Channel Internal DMA
• 12-Bit A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature
• Three Configurable Operational Amplifiers
• Dual 12-Bit Digital-to-Analog (D/A) Converters With Synchronization
• 16-Bit Timer_A With Three Capture/Compare Registers
• 16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers
• On-Chip Comparator
• Supply Voltage Supervisor/Monitor With Programmable Level Detection
• Serial Communication Interface (USART1), Select Asynchronous UART or Synchronous SPI by Software
• Universal Serial Communication Interface
• Enhanced UART Supporting Auto-Baudrate Detection
• IrDA Encoder and Decoder
• Synchronous SPI
• I2C Serial
• Onboard Programming, Programmable Code Protection by Security Fuse
• Brownout Detector
• Basic Timer With Real Time Clock Feature
• Integrated LCD Driver up to 160 Segments With Regulated Charge Pump
