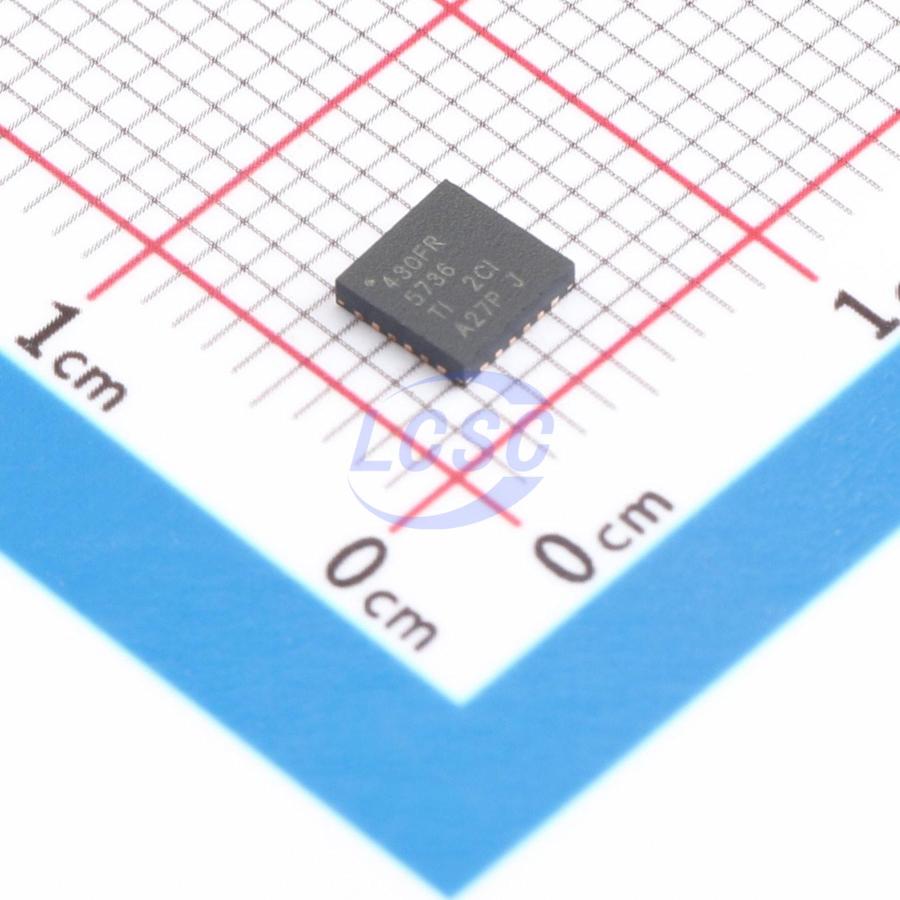

MSP430FR5736IRGER

MSP430FR573x series ultra-low-power microcontrollers contain multiple devices with embedded FRAM non-volatile memory, ultra-low-power 16-bit MSP430 CPU, and various peripherals for different applications. This architecture, FRAM, and peripherals combined with 7 low-power modes are optimized for extending battery life in portable wireless sensing applications. FRAM is a new non-volatile memory that combines the speed, flexibility, and durability of SRAM with the stability and reliability of flash memory, and has lower total power consumption. Peripherals include a 10-bit analog-to-digital converter (ADC), a 16-channel comparator with voltage reference generation and hysteresis, 3 enhanced serial channels supporting I2C, SPI, or UART protocols, an internal DMA, a hardware multiplier, a real-time clock (RTC), 5 16-bit timers, and digital I/O.

Applications

• Home automation sensor management
• Security
• Data acquisition

Key features

• Embedded microcontroller
• 16-bit reduced instruction set computer (RISC) architecture with up to 24MHz clock frequency
• Wide power supply voltage range (2V to 3.6V)
• -40℃ to 85℃ operation
• Optimized ultra-low power modes
• Active mode: 81.4μA/MHz (typical)
• Standby (LPM3 with VLO): 6.3μA (typical)
• Real-time clock (RTC) (LPM3.5, with crystal): 1.5μA (typical)
• Shutdown (LPM4.5): 0.32μA (typical)
• Up to 16KB of non-volatile memory
• Ultra-low power write, 125ns per word fast write (write 16KB in 1ms)
• Built-in error correction coding (ECC) and memory protection unit (MPU)
• General memory = program + data + storage, 1015 write cycle durability
• Radiation resistant and non-magnetic
• Smart digital peripherals
• 32-bit hardware multiplier (MPY)
• 3-channel internal direct memory access (DMA)
• Real-time clock (RTC) with calendar and alarm functions
• 5 16-bit timers with up to 3 capture/compare registers
• 16-bit cyclic redundancy checker (CRC)
• High-performance analog
• 16-channel analog comparator supporting voltage reference and programmable hysteresis
• 12-channel 10-bit analog-to-digital converter (ADC) with internal reference, sampling and hold function
• 200ksps at a current consumption of 100μA
• Enhanced serial communication
• eUSCI_A0 and eUSCI_A1 support:
• Universal asynchronous receiver/transmitter (UART) with automatic baud rate detection
• IrDA encoding and decoding
• Serial peripheral interface (SPI)
• eUSCI_B0 supports:
• I2C with multi-slave addressing support
• Serial peripheral interface (SPI)
• Hardware universal asynchronous receiver/transmitter (UART) boot loader (BSL)
• Power management system
• Fully integrated low-dropout regulator (LDO)
• Core and power supply voltage monitor with reset function
• Zero-power under-voltage detection in always-on mode
• Serial in-system programming without external voltage
• Flexible clock system
• Fixed frequency digitally controlled oscillator (DCO) with 6 selectable factory-calibrated frequencies (device dependent)
• Low-power low-frequency internal clock source (VLO)
• 32kHz crystal oscillator (LFXT)
• High-frequency crystal oscillator (HFXT)
• Development tools and software
• Free professional development environment (Code Composer Studio IDE)
• Low-cost full-featured kit
• Complete development kit (MSP-FET430U40A)
• Target board (MSP-TS430RHA40A)
