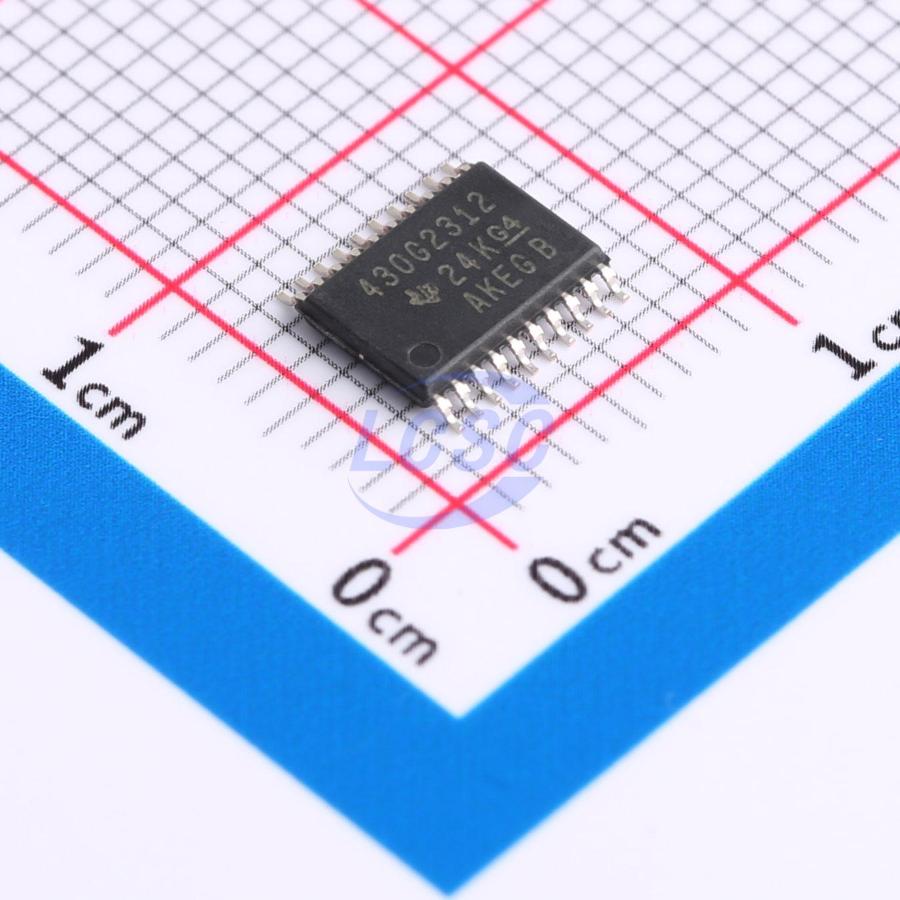

MSP430G2312IPW20R

The ultra-low-power microcontroller family consists of several devices with different peripherals for various applications. The architecture and five low-power modes are optimized for extended battery life in portable measurement applications. It features a 16-bit RISC CPU, 16-bit registers, and constant generators for maximum code efficiency. The DCO enables wake-up from low-power to active mode in less than 1 μs. The MSP430G2x52 and MSP430G2x12 series are ultra-low-power mixed signal microcontrollers with 16-bit timers, up to 16 I/O capacitive-touch enabled pins, built-in communication via the universal serial communication interface, and a versatile analog comparator. The MSP430G2x52 series has a 10-bit A/D converter. Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and process the data for display or transmission to a host system.

Applications

• Low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system

Key features

• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
• Active Mode: 220 μA at 1 MHz, 2.2 V
• Standby Mode: 0.5 μA
• Off Mode (RAM Retention): 0.1 μA
• Five Power-Saving Modes
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Basic Clock Module Configurations
• Internal Frequencies up to 16 MHz With Four Calibrated Frequencies
• Internal Very-Low-Power Low-Frequency (LF) Oscillator
• 32-kHz Crystal
• External Digital Clock Source
• One 16-Bit Timer, A With Three Capture/Compare Registers
• Up to 16 Capacitive-Touch Enabled I/O Pins
• Universal Serial Interface (USI) Supporting SPI and I2C
• 10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan (MSP430G2x52 Only)
• On-Chip Comparator for Analog
• Brownout Detector
• Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
• On-Chip Emulation Logic With Spy-Bi-Wire Interface
