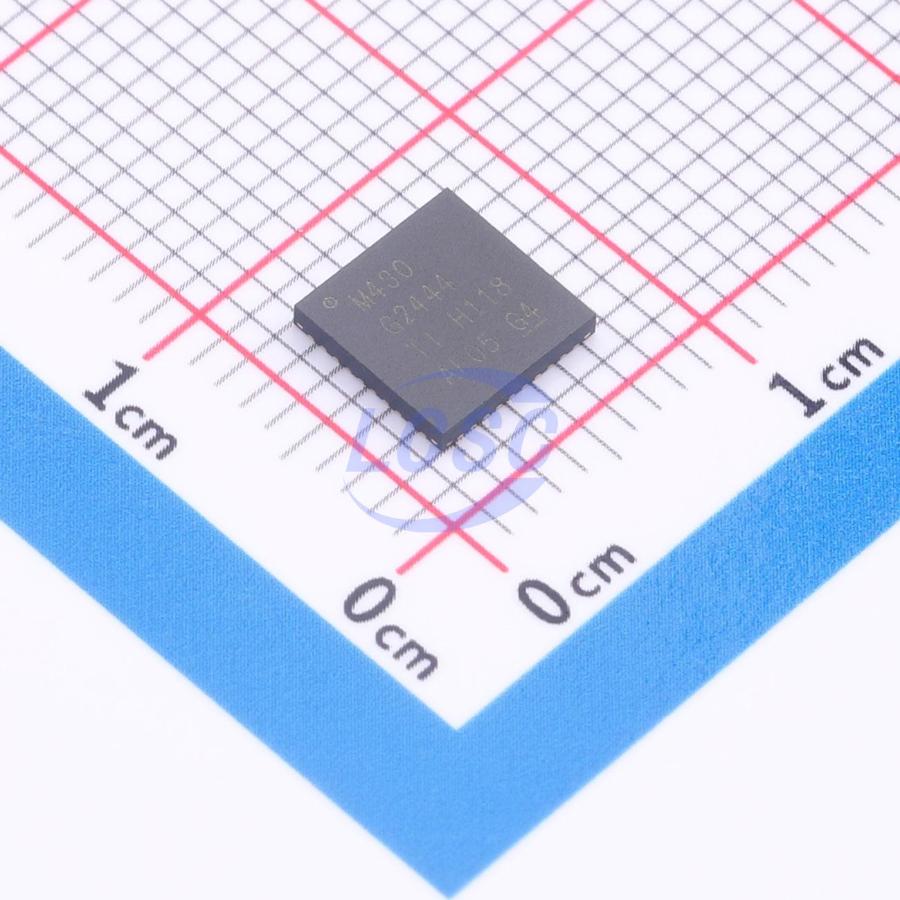

MSP430G2444IRHA40R

The MSP430 ultra-low-power microcontroller series consists of several devices, each with different peripheral sets tailored for various applications. The combination of its architecture and five low-power modes is specifically optimized to extend battery life in portable measurement applications. It features a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator that helps achieve maximum coding efficiency. The digitally controlled oscillator (DCO) enables the device to wake up from a low-power mode to an active mode in less than 1µs. The MSP430G2x44 series is an ultra-low-power mixed-signal microcontroller. It has two built-in 16-bit timers, one universal serial communication interface (USCI), a 10-bit analog-to-digital converter (ADC) with an integrated reference and data transfer controller (DTC), and 32 input/output (I/O) pins. Typical applications include sensor systems, which are responsible for capturing analog signals, converting them into digital values, and processing the data for display or transmission to a host system. An independent radio frequency (RF) sensor front-end is also an application area.

Applications

• Sensor systems
• RF sensor front-end

Key features

• Supply voltage range: 1.8V to 3.6V
• Ultra-low power consumption
• Active mode: 270μA (at 1MHz, 2.2V)
• Standby mode: 1μA
• Off mode (RAM retention): 0.1μA
• Ultra-fast wake-up from standby in less than 1μs
• 16-bit RISC architecture, 62.5ns instruction cycle time
• Basic clock module configurations
• Internal frequency up to 16MHz with four calibrated frequencies
• Internal ultra-low-power LF oscillator
• 32kHz crystal
• HF crystal resonator up to 16MHz
• External digital clock source
• External resistor
• 16-bit Timer_A with three capture/compare registers
• 16-bit Timer_B with three capture/compare registers
• USCI
• Enhanced UART with automatic baud rate detection (LIN)
• IrDA encoder and decoder
• SPI
• I²C
• 10-bit 200ksps ADC with internal reference, sample-and-hold, auto-scan, and data transfer controller
• Brown-out detector
• In-system serial programming, no external programming voltage required, programmable code protection via security fuse
• Bootstrap loader (BSL)
• On-chip emulation module
