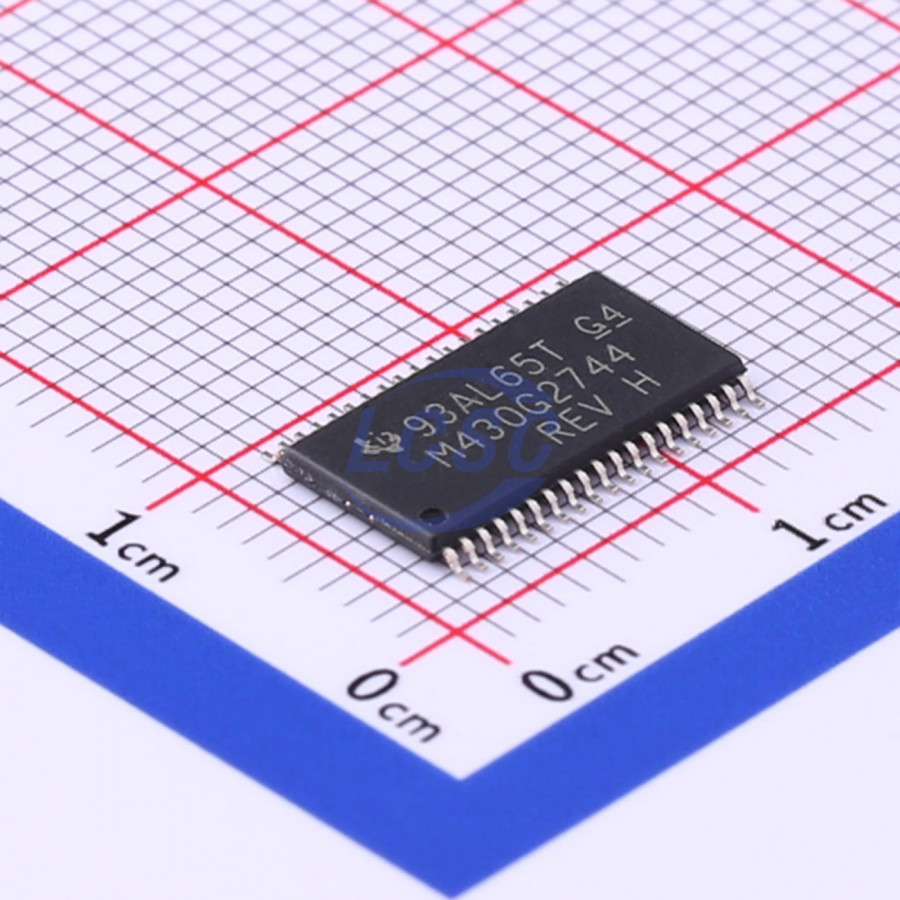

MSP430G2744IDA38R

The MSP430G2x44 series is an ultra-low-power mixed-signal microcontroller with 2 built-in 16-bit timers, 1 universal serial communication interface (USCI), a 10-bit analog-to-digital converter (ADC) with integrated reference and data transfer controller (DTC), and 32 input/output (I/O) pins. This architecture, combined with 5 low-power modes, is optimized for extending battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and a constant generator to help achieve maximum coding efficiency. The digitally controlled oscillator (DCO) enables the device to wake up from a low-power mode to an active mode in less than 1µs.

Applications

• Sensor systems
• RF sensor front ends

Key features

• Low supply voltage range: 1.8V to 3.6V
• Ultra-low power consumption
• Active mode: 270μA (at 1MHz frequency and 2.2V voltage)
• Standby mode: 1μA
• Shutdown mode (RAM retention): 0.1μA
• Can wake up from standby mode in less than 1μs
• 16-bit Reduced Instruction Set (RISC) architecture, 62.5ns instruction cycle time
• Basic clock module configuration
• Internal frequency up to 16MHz with four calibrated frequencies
• Internal ultra-low power low-frequency (LF) oscillator
• 32kHz crystal oscillator
• High-frequency (HF) crystal oscillator resonator up to 16MHz
• External digital clock source
• External resistor
• 16-bit Timer_A with 3 capture/compare registers
• 16-bit Timer_B with 3 capture/compare registers
• Universal Serial Communication Interface (USCI)
• Enhanced Universal Asynchronous Receiver/Transmitter (UART) supporting automatic baud rate detection (LIN)
• IrDA encoder and decoder
• Synchronous Serial Peripheral Interface (SPI)
• I2C
• 10-bit 200ksps analog-to-digital converter (ADC) with internal reference, sampling and hold, automatic scanning, and data transfer
• Serial in-system programming, no external programming voltage required, programmable code protection with security fuse
• Bootstrap Loader (BSL)
• On-chip emulation module
• Product family
• MSP430G2444: 8KB + 256B flash memory, 512B RAM
• MSP430G2544: 16KB + 256B flash memory, 512B RAM
• MSP430G2744: 32KB + 256B flash memory, 1KB RAM
