MST

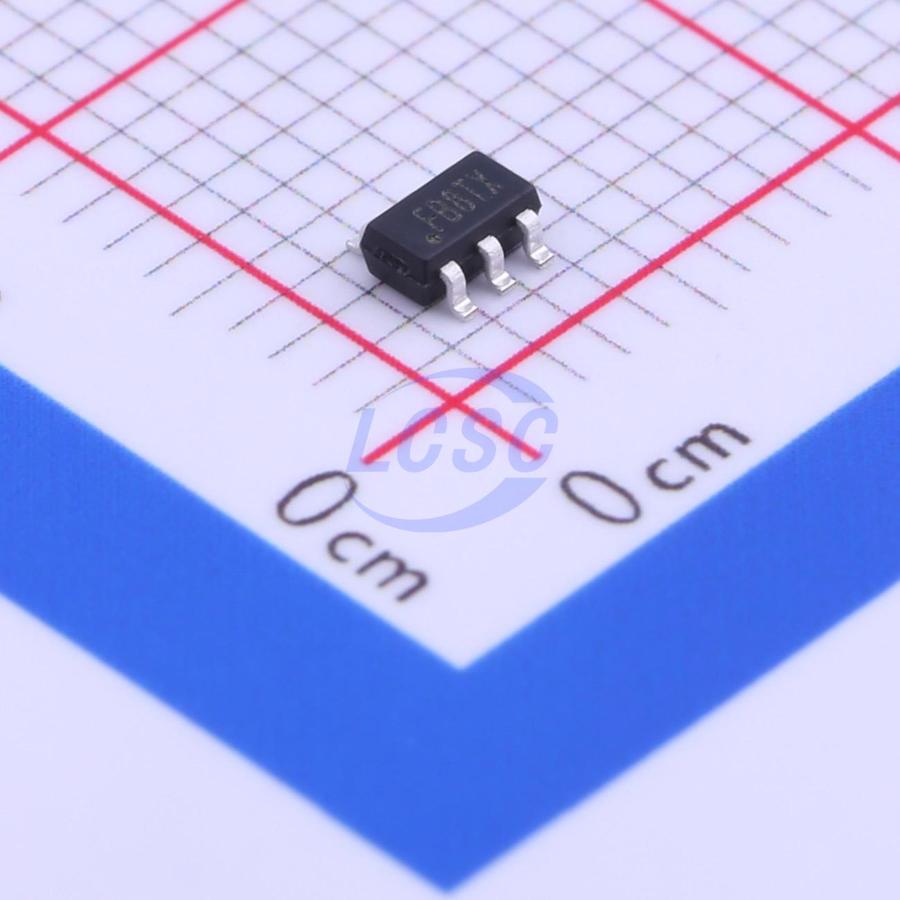

MST2513ASF

nan

SOT-23-6RoHSActive

USB Dedicated Charging Port Controller

Manufacturer: MST
Manufacturer part #: MST2513ASF
Store part #: C324591
Package / case: SOT-23-6
Category: Battery Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,995 in stock

#C324591

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.35	₹101.75
50+	₹16.22	₹811.00
150+	₹14.14	₹2,121.00
500+	₹12.59	₹6,295.00
3,000+	₹10.74	₹32,220.00
6,000+	₹10.12	₹60,720.00

Quantity (min 5, multiples of 5)

5 × ₹20.35

₹101.75

excl. GST

₹120.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MST2513ASF

₹101.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.074 g

Overview

MST2513/2513A/2514/2514A are USB Dedicated Charging Port (DCP) controller ICs that automatically monitor USB data line voltages and provide the correct electrical characteristics on the data lines, enabling recognition by devices compatible with the following configurations: 1. Divider 1 DCP, applying 2V and 2.7V to the D+ and D- lines respectively. (MST2513, MST2514) 2. Divider 2 DCP, applying 2.7V and 2V to the D+ and D- lines respectively. (MST2513, MST2514) 3. Divider 3 DCP, applying 2.7V and 2.7V to the D+ and D- lines respectively. (MST2513A, MST2514A) 4. BC1.2 DCP support, shorting D+ to D-. 5. China Telecom standard YD/T 1591_2009 short-circuit mode support, shorting D+ to D-. 6. Samsung PAD mode compatible, with both D+ and D- voltages at 1.2V.
