micron

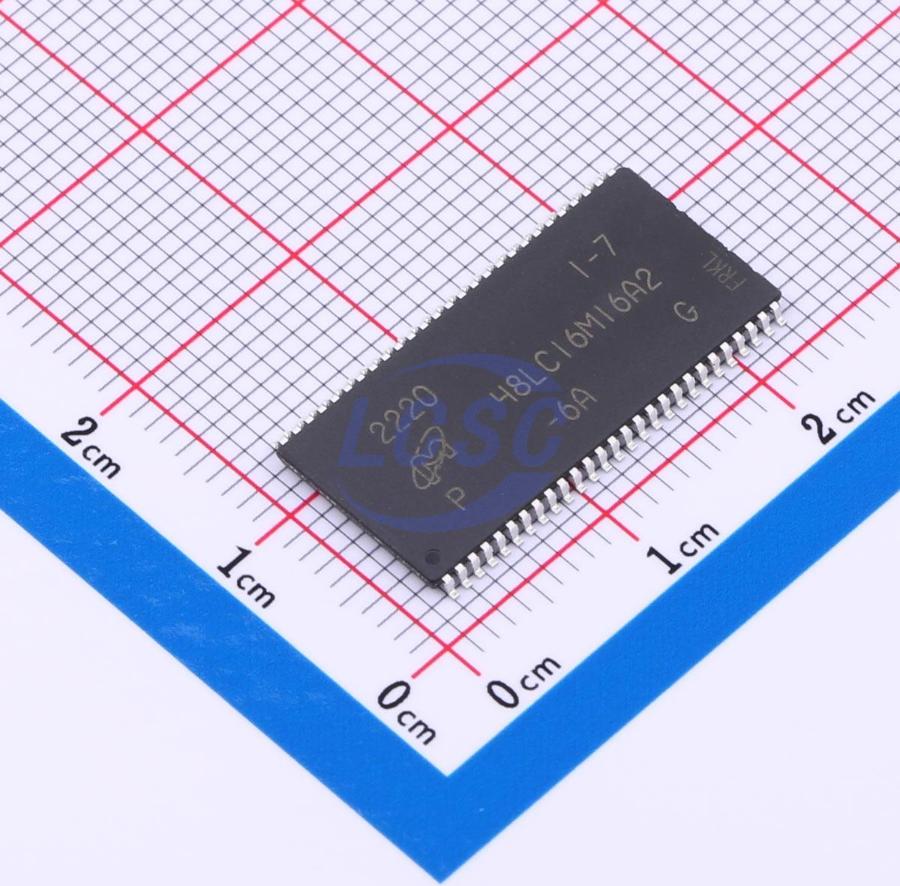

MT48LC16M16A2P-6A:G
256Mbit 167MHz TSOP-54-400mil Memory RoHS
TSOP-54-400milROHS CompliantActive
256Mb: x4, x8, x16 SDRAM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
849 in stock
#C5128621
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,350.75 | ₹3,350.75 |
| 10+ | ₹3,217.18 | ₹32,171.80 |
| 30+ | ₹2,986.17 | ₹89,585.10 |
| 100+ | ₹2,784.53 | ₹2,78,453.00 |
1 × ₹3,350.75
₹3,350.75
excl. GST
₹3,953.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MT48LC16M16A2P-6A:G
₹3,350.75 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Refresh Current
- 2.5mA
- Features
- High-speed clock synchronization;Auto precharge;Automatic column address generation;Auto refresh
- Memory Size
- 256Mbit
- Voltage - Supply
- 3V~3.6V;100mA
- Clock Frequency
- 167MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.3 g
Overview
Key features
- PC100- and PC133- compliant
- Fully synchronous; all signals registered on positive edge of system clock
- Internal, pipelined operation; column address can be changed every clock cycle
- Internal banks for hiding row access/precharge
- Programmable burst lengths: 1, 2, 4, 8, or full page
- Auto precharge, includes concurrent auto precharge and auto refresh modes
- Self refresh mode (not available on AT devices)
- Auto refresh 64ms, 8192- cycle refresh (commercial and industrial); 16ms, 8192- cycle refresh (automotive)
- LVTTL- compatible inputs and outputs
- Single 3.3V ± 0.3V power supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | W9825G6KH-6#C62246Winbond · TSOP-54-10.2mm | Winbond | TSOP-54-10.2mm | 7,664 | ₹747.20 · 7,664 in stock | View |
 | MT48LC16M16A2P-6A IT:G#C26393micron · TSOP-54-10.2mm | micron | TSOP-54-10.2mm | 875 | ₹8,839.41 · 875 in stock | View |
| IS42S83200J-6TLI#C1351908ISSI · TSOPII-54-10.2mm | ISSI | TSOPII-54-10.2mm | 10 | ₹2,234.45 · 10 in stock | View | |
 | IS45S16160J-7TLA2#C1352108ISSI · TSOPII-54-10.2mm | ISSI | TSOPII-54-10.2mm | 1 | ₹1,749.44 · 1 in stock | View |
| AS4C16M16SB-6TIN#C2914326Alliance Memory · TSOPII-54-10.2mm | Alliance Memory | TSOPII-54-10.2mm | 1 | ₹763.73 · 1 in stock | View | |
