VBsemi ElecDatasheet (PDF)

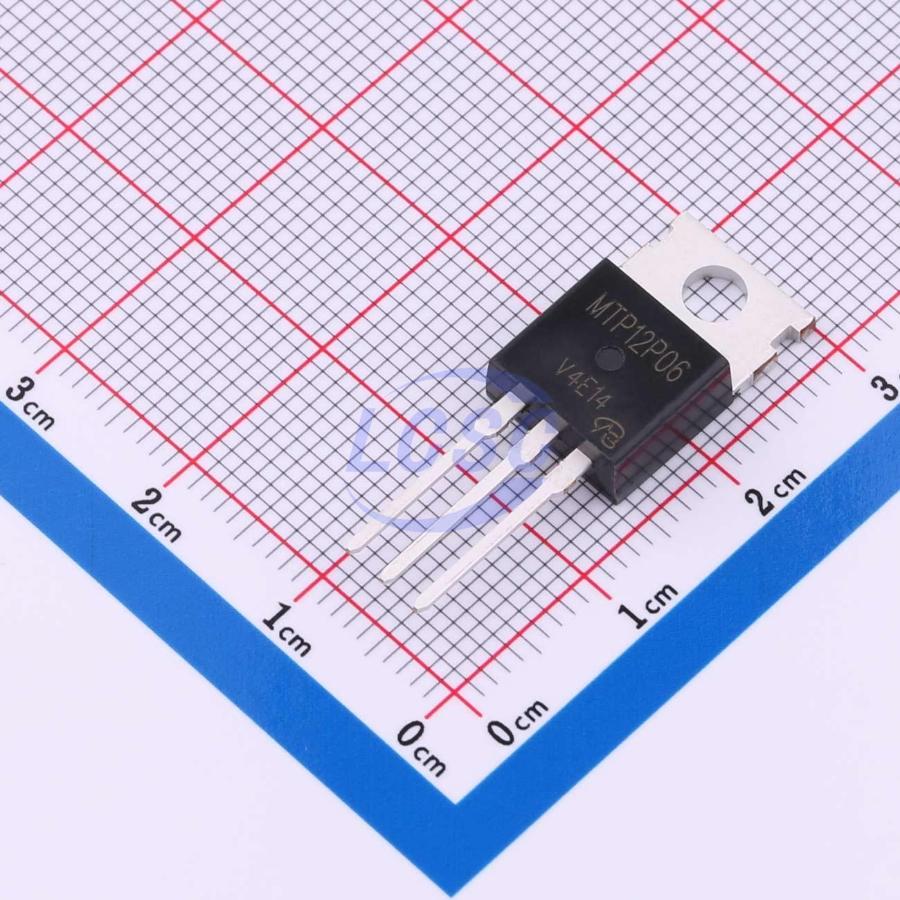

MTP12P06-VB
N-Channel 60V 12A 60W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 12A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MTP12P06-VB
- Store part #
- C22389460
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389460
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.76 | ₹61.76 |
| 10+ | ₹48.53 | ₹485.30 |
| 50+ | ₹42.85 | ₹2,142.50 |
| 100+ | ₹35.72 | ₹3,572.00 |
| 500+ | ₹32.56 | ₹16,280.00 |
| 1,000+ | ₹30.68 | ₹30,680.00 |
1 × ₹61.76
₹61.76
excl. GST
₹72.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MTP12P06-VB
₹61.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 360pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 640pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 79pF
- RDS(on)
- 72mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC/DC Converter
- Motor Drive Switch
- DC/AC Inverter
- Solar Micro Inverter
- Class D Audio Amplifier
Key features
- Dynamic dv/dt rated
- Fast switching
- Easy to parallel
- Simple drive requirements
- RoHS compliant
- N-channel MOSFET
