VBsemi ElecDatasheet (PDF)

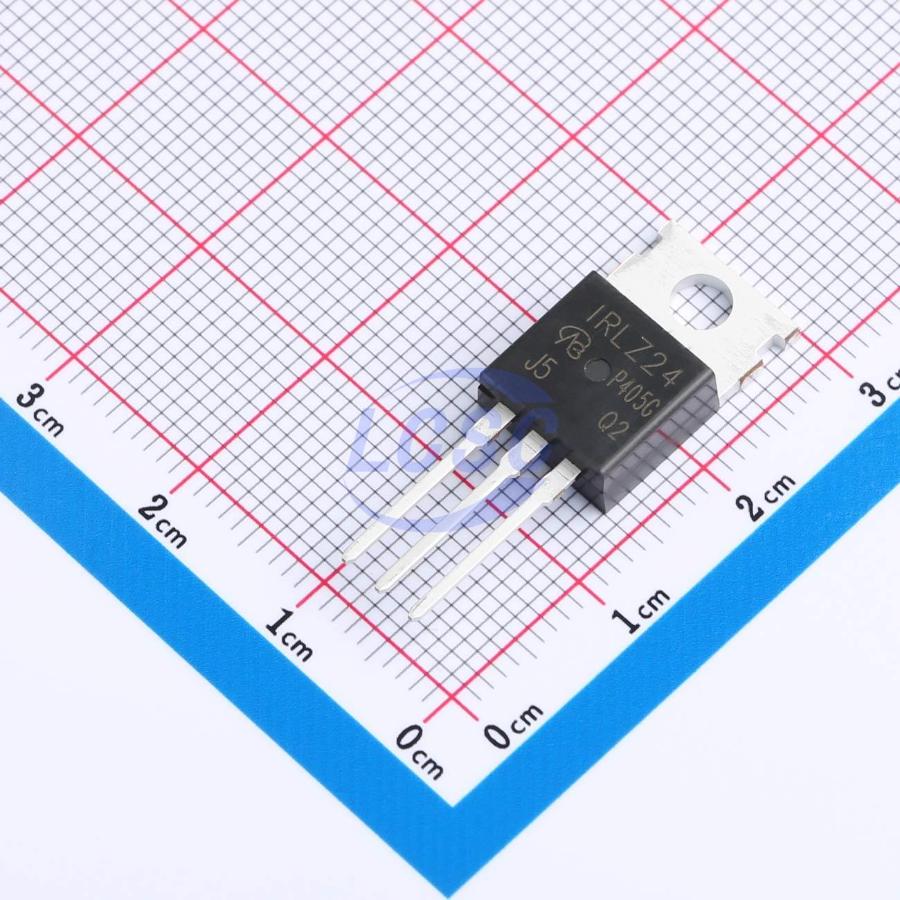

IRLZ24PBF-VB
N-Channel 60V 12A 60W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 12A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLZ24PBF-VB
- Store part #
- C20626252
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C20626252
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.28 | ₹64.28 |
| 10+ | ₹51.05 | ₹510.50 |
| 50+ | ₹45.38 | ₹2,269.00 |
| 100+ | ₹38.23 | ₹3,823.00 |
| 500+ | ₹35.09 | ₹17,545.00 |
| 1,000+ | ₹33.19 | ₹33,190.00 |
1 × ₹64.28
₹64.28
excl. GST
₹75.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLZ24PBF-VB
₹64.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 360pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 640pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 79pF
- RDS(on)
- 72mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.66 g
Overview
AGM605F combines advanced trench MOSFET technology with low-resistance packaging to achieve ultra-low RDS(ON). This device is ideal for load switching and battery protection applications.
Applications
- MB/VGA core voltage - secondary synchronous rectifier switching power supply - point-of-load applications - brushless DC motor driver
Key features
- Dynamic dV/dt rating
- Fast switching
- Ease of paralleling
- Simple drive requirements
