VBsemi ElecDatasheet (PDF)

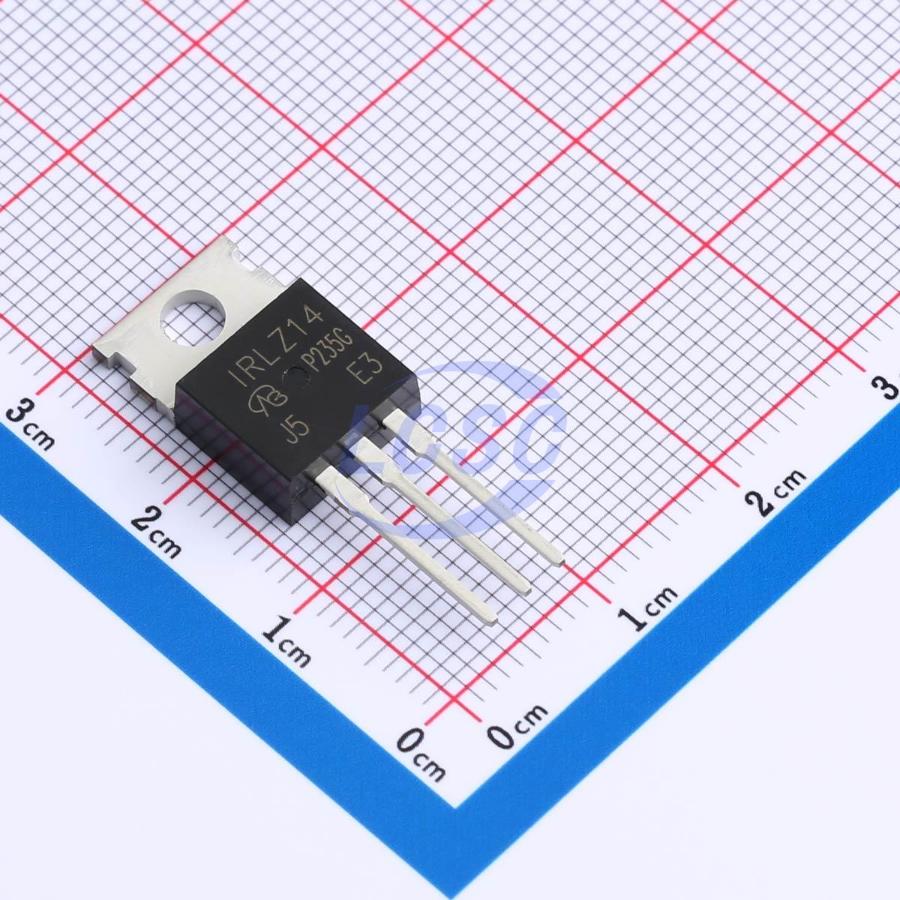

IRLZ14PBF-VB
N-Channel 60V 12A 60W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 12A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLZ14PBF-VB
- Store part #
- C5240581
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C5240581
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.16 | ₹78.16 |
| 10+ | ₹64.44 | ₹644.40 |
| 50+ | ₹46.60 | ₹2,330.00 |
| 100+ | ₹39.41 | ₹3,941.00 |
| 500+ | ₹36.14 | ₹18,070.00 |
| 1,000+ | ₹34.19 | ₹34,190.00 |
1 × ₹78.16
₹78.16
excl. GST
₹92.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLZ14PBF-VB
₹78.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 360pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 640pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 79pF
- RDS(on)
- 72mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.94 g
Overview
Applications
- Primary-side switching isolated DC/DC converter
Key features
- Dynamic dV/dt rating
- Fast switching
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLZ24PBF-VB#C20626252VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 35 | ₹64.28 · 35 in stock | View |
 | MTP12P06-VB#C22389460VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹61.76 · 10 in stock | View |
 | RFP4N06L-VB#C22389749VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹61.76 · 10 in stock | View |
 | VBM1680#C516958VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹65.28 · 50 in stock | View |
 | IRFZ20PBF-VB#C7525035VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹65.04 · 20 in stock | View |
