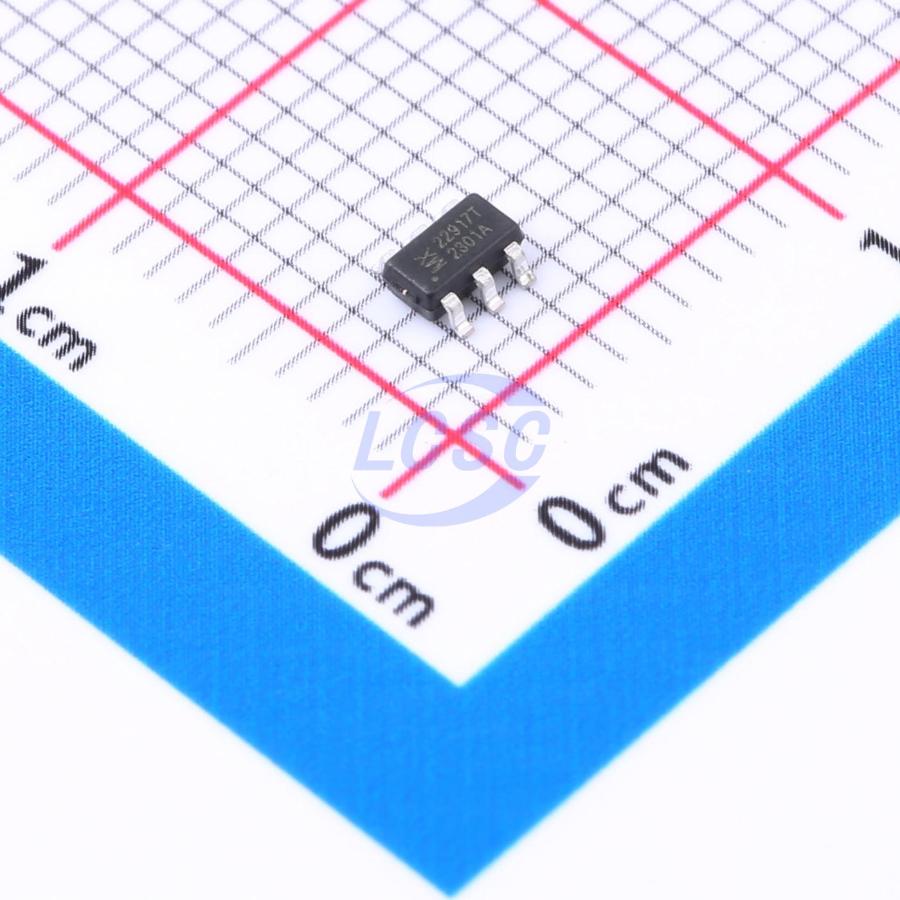

MX22917T23

The MX22917 device is a 5.5V, 2A load switch in a 6 pin SOT23 package. To reduce voltage drop for low voltage and high current rails, the device implements a low resistance P channel MOSFET which reduces the drop out voltage across the device. The MX22917 device has a configurable slew rate which helps reduce or eliminate power supply droop because of large inrush currents. Furthermore, the device features a QOD pin, which allows the configuration of the discharge rate of VOUT after the switch is disabled. During shutdown, the device has very low leakage currents, thereby reducing unnecessary leakages for downstream modules during standby. Integrated control logic, driver, charge pump, and output discharge FET eliminates the need for any external components which reduces solution size and bill of materials count.

Applications

• Industrial system
• Wearable devices
• Set-top box
• Sales terminal
• Blood glucose meter

Key features

• Input voltage range: 1V to 5.5V
• Maximum continuous current: 2A
• On-resistance:
• 100mΩ at 5V input voltage (typical)
• 160mΩ at 1.8V input voltage (typical)
• 240mΩ at 1V input voltage (typical)
• Ultra low power consumption
• On state: 0.5uA typical
• Off state: 10nA typical
• Soft start time can be adjusted
• 5V Ton Ω = 100us at CT open
• 5V Ton = 2000us at CT = 1000pF
• Output discharge time can be adjusted
• 6-Pin SOT23-6
