MXIC

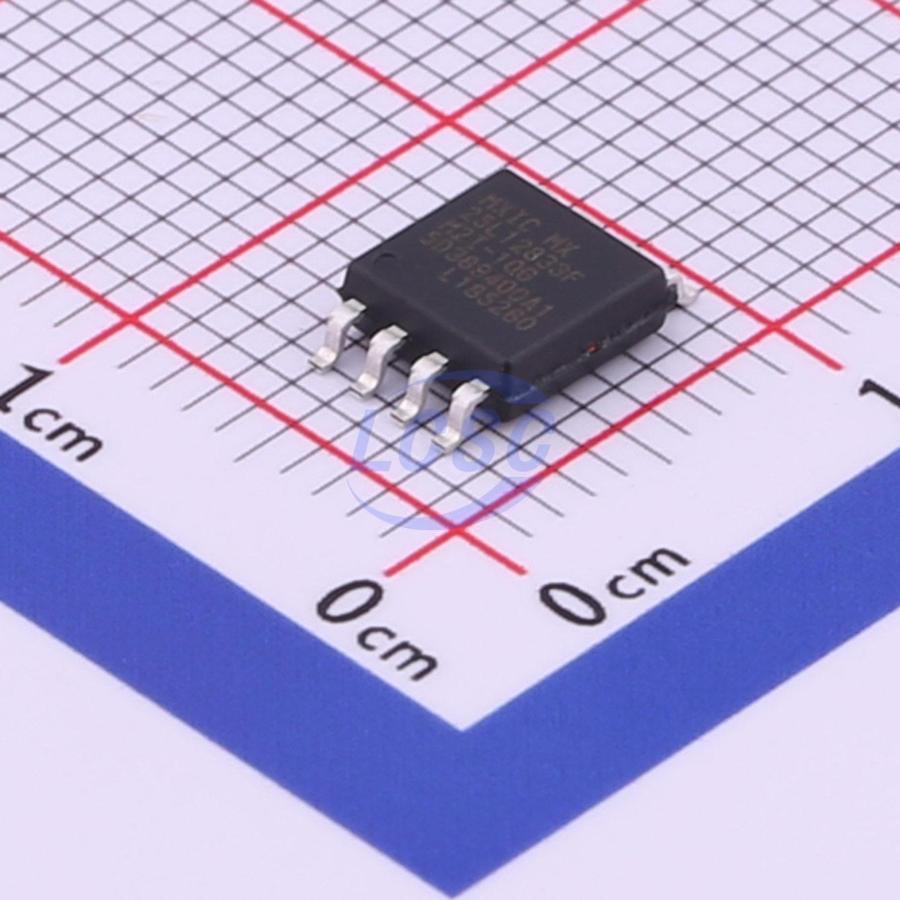

MX25L12833FM2I-10G
128Mbit 2.7V~3.6V 133MHz SPI SOP-8-200mil Memory RoHS
SOP-8-200milROHS3 CompliantActive
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,796 in stock
#C701355
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹462.47 | ₹462.47 |
| 10+ | ₹398.77 | ₹3,987.70 |
| 30+ | ₹360.94 | ₹10,828.20 |
| 92+ | ₹277.88 | ₹25,564.96 |
| 460+ | ₹260.26 | ₹1,19,719.60 |
| 920+ | ₹252.22 | ₹2,32,042.40 |
1 × ₹462.47
₹462.47
excl. GST
₹545.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 92 per tube
MX25L12833FM2I-10G
₹462.47 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 128Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Standby Supply Current
- 10uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991B1A
- Packaging
- Tube-packed
- Standard pack
- 92 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Key features
- Protocol Support - Single I/O, Dual I/O and Quad I/O
- Quad Peripheral Interface (QPI) available
- Support clock frequency up to 133MHz
- Program/Erase Suspend and Resume
- Additional 8K-bit secured OTP
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure
- Latch-up protected to 100mA from -1V to Vcc +1V
- Fast read for SPI mode
- Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions
- Configurable dummy cycle number for fast read operation
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each
- Any Block can be erased individually
- 256byte page buffer
- Quad Input/Output page program(4PP) to enhance program performance
- Typical 100,000 erase/program cycles
- 20 years data retention
- Input Data Format: 1-byte Command code
- Advanced Security Features: Block lock protection
- Advanced sector protection function (Solid Protect)
- Additional 8K bit security OTP: Features unique identifier, Factory locked identifiable, and customer lockable
- Command Reset
- Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID
- RES command for 1-byte Device ID
- REMS command for 1-byte manufacturer ID and 1-byte device ID
- Support Serial Flash Discoverable Parameters (SFDP) mode
- SCLK Input: Serial clock input
- SI/SIO0: Serial Data Input or Serial Data Input/Output for 2 x 1/O read mode and 4 x 1/0 read mode
- SO/SIO1: Serial Data Output or Serial Data Input/Output for 2 x 1/0 read mode and 4 x 1/0 read mode
- WP#/SIO2: Hardware write protection or serial data Input/Output for 4 x 1/0 read mode
- RESET# (16-pin package): Hardware Reset pin
- RESET#/SIO3: Hardware Reset pin or Serial input & Output for 4 x 1/O read mode
- PACKAGE: 8-pin SOP (200mil), 16-pin SOP (300mil), 8-land WSON (6x5mm), 8-land WSON (8X6mm)
- All devices are RoHS Compliant and Halogen free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | W25Q128JVSIQ#C113767Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 6,917 | ₹333.34 · 6,917 in stock | View |
 | W25Q128JVSIM#C2613930Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 180 | ₹442.29 · 180 in stock | View |
 | W25Q128JVSIM#C401671Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 4,410 | ₹444.40 · 4,410 in stock | View |
 | IS25LP128-JBLE-TR#C521290ISSI · SOIC-8-208mil | ISSI | SOIC-8-208mil | 367 | ₹1,134.38 · 367 in stock | View |
 | S25FL128LAGMFV013#C1512157Infineon/CYPRESS · SOIC-8-208mil | Infineon/CYPRESS | SOIC-8-208mil | 7 | ₹480.04 · 7 in stock | View |
