MXIC

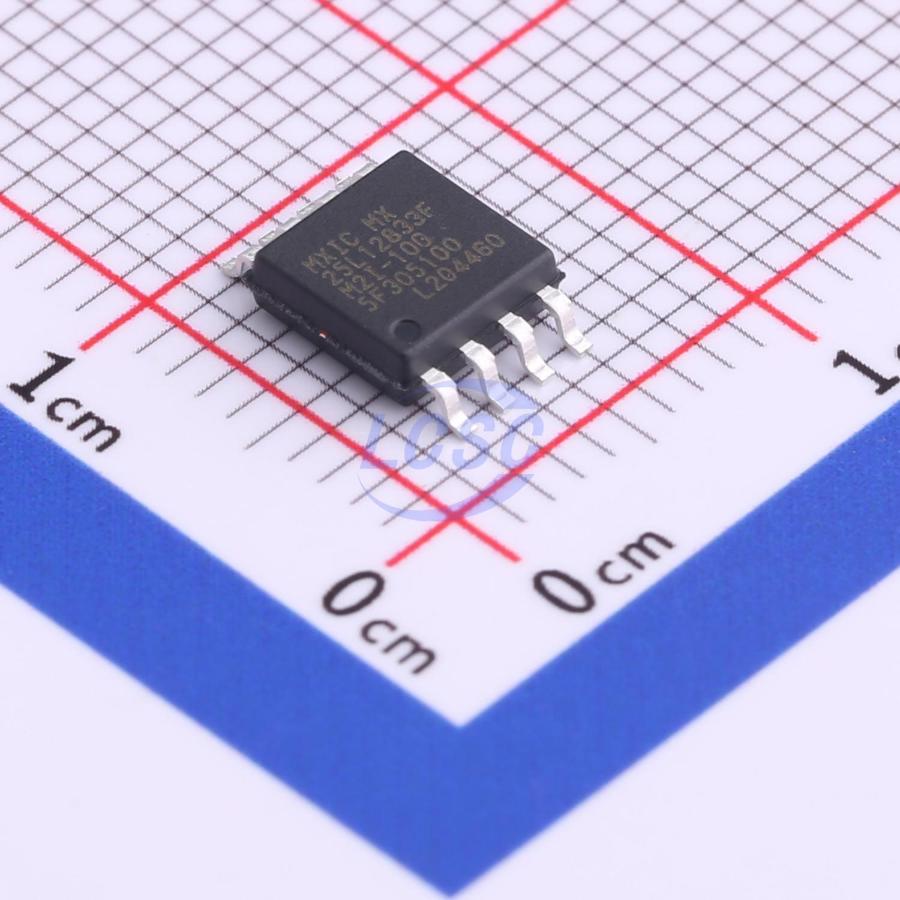

MX25L12833FM2I-10GTR
FLASH - NOR Memory IC 128Mbit SPI 133MHz SOP-8-208mil
SOP-8-208milROHS CompliantActive
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,091 in stock
#C2802705
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹399.16 | ₹399.16 |
| 10+ | ₹338.25 | ₹3,382.50 |
| 30+ | ₹302.15 | ₹9,064.50 |
| 100+ | ₹265.61 | ₹26,561.00 |
| 500+ | ₹248.63 | ₹1,24,315.00 |
| 1,000+ | ₹241.02 | ₹2,41,020.00 |
1 × ₹399.16
₹399.16
excl. GST
₹471.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MX25L12833FM2I-10GTR
₹399.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 128Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 330us
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.531 g
Overview
Key features
- Protocol Support - Single I/O, Dual I/O and Quad I/O
- Quad Peripheral Interface (QPI) available
- Support clock frequency up to 133MHz
- Program/Erase Suspend and Resume
- Additional 8K-bit secured OTP
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- Single Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations
- 134,217,728 x 1 bit structure or 67,108,864×2 bits (two I/O mode) structure or 33,554,432×4 bits (four I/O mode) structure
- Latch-up protected to 100mA from -1V to Vcc +1V
- Fast read for SPI mode: Support clock frequency up to 133MHz for all protocols; Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions; Configurable dummy cycle number for fast read operation
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each; Any Block can be erased individually
- Programming: 256byte page buffer; Quad Input/Output page program(4PP) to enhance program performance
- Typical 100,000 erase/program cycles
- 20 years data retention
- Input Data Format: 1-byte Command code
- Advanced Security Features: Block lock protection; Advanced sector protection function (Solid Protect)
- Additional 8K bit security OTP: Features unique identifier; Factory locked identifiable, and customer lockable
- Command Reset
- Electronic Identification: JEDEC 1-byte manufacturer ID and 2-byte device ID; RES command for 1-byte Device ID; REMS command for 1-byte manufacturer ID and 1-byte device ID
- Support Serial Flash Discoverable Parameters (SFDP) mode
- SCLK Input: Serial clock input
- SI/SIO0: Serial Data Input or Serial Data Input/Output for 2×1/O read mode and 4×1/0 read mode
- SO/SIO1: Serial Data Output or Serial Data Input/Output for 2×1/0 read mode and 4×1/0 read mode
- WP#/SIO2: Hardware write protection or serial data Input/Output for 4×1/0 read mode
- RESET# (16-pin package): Hardware Reset pin
- RESET#/SIO3: Hardware Reset pin or Serial input & Output for 4×1/O read mode
- PACKAGE: 8-pin SOP (200mil); 16-pin SOP (300mil); 8-land WSON (6x5mm); 8-land WSON (8X6mm)
- All devices are RoHS Compliant and Halogen free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | W25Q128JVSIQ#C113767Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 6,917 | ₹333.34 · 6,917 in stock | View |
 | S25FL128LAGMFV013#C1512157Infineon/CYPRESS · SOIC-8-208mil | Infineon/CYPRESS | SOIC-8-208mil | 7 | ₹480.04 · 7 in stock | View |
 | ZD25Q128CSIGT#C19626875Zetta · SOP-8-208mil | Zetta | SOP-8-208mil | 2,805 | ₹149.92 · 2,805 in stock | View |
 | W25Q128JVSIM#C2613930Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 180 | ₹442.29 · 180 in stock | View |
 | W25Q128JVSIM#C401671Winbond · SOIC-8-208mil | Winbond | SOIC-8-208mil | 4,410 | ₹444.40 · 4,410 in stock | View |
