UMWDatasheet (PDF)

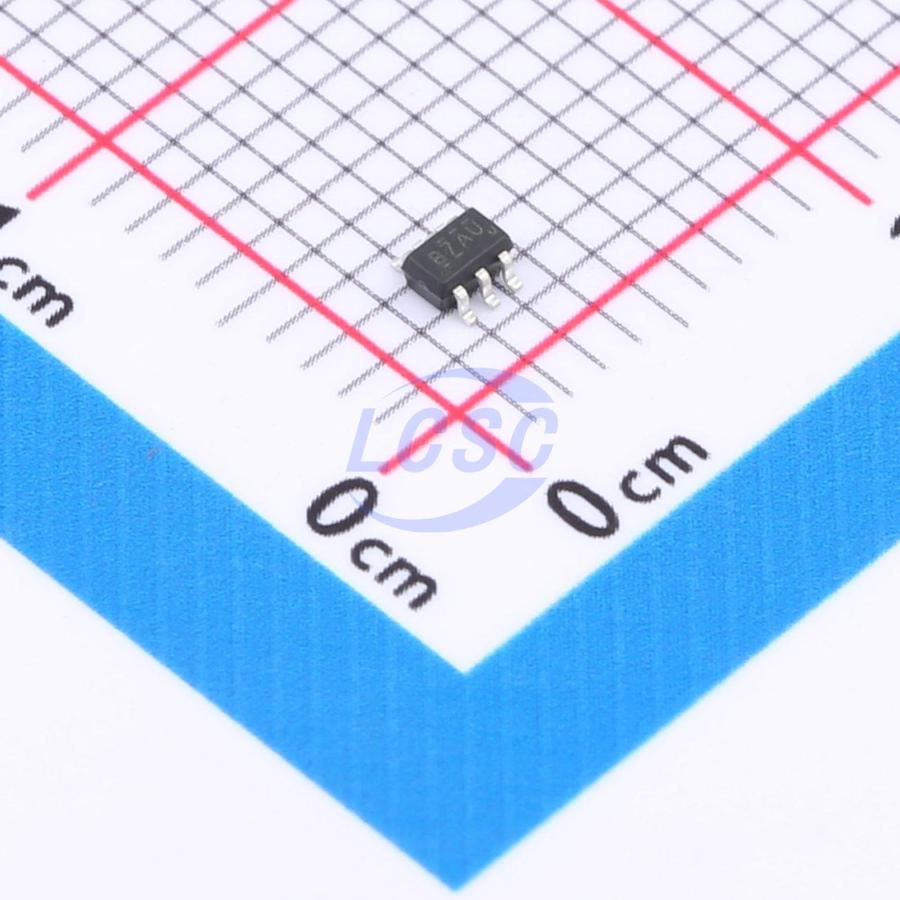

NC7SB3157P6X(UMW)
1 12Ω 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6ROHS CompliantActive
One out of two analog switch circuit
- Manufacturer
- UMW
- Manufacturer part #
- NC7SB3157P6X(UMW)
- Store part #
- C20417168
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,260 in stock
#C20417168
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.57 | ₹75.70 |
| 100+ | ₹5.93 | ₹593.00 |
| 300+ | ₹5.11 | ₹1,533.00 |
| 3,000+ | ₹4.50 | ₹13,500.00 |
| 6,000+ | ₹4.00 | ₹24,000.00 |
| 9,000+ | ₹3.76 | ₹33,840.00 |
10 × ₹7.57
₹75.70
excl. GST
₹89.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SB3157P6X(UMW)
₹75.70 for 10 + GST
Specifications
- Features
- Fault protection
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- 1
- Ron
- 12Ω
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 24ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
NC7SB3157P6X is a CMOS-based analog switch featuring low power consumption, low propagation delay, and low output impedance. Both analog and digital signal voltage outputs can swing from VCC to GND. The select input incorporates overvoltage protection, allowing input voltage to exceed VCC up to 7V without damaging the pin.
Key features
- Low power consumption
- High transmission speed
- Standard CMOS logic level compatible
- High bandwidth, high linearity
- Switching for NTSC/PAL video, audio, SPDIF, and HDTV
- SC70-6 package
- Suitable for clock switching and data selection switching
- Low output impedance
- Break-before-make protection against short circuits
- Operating temperature range: -55°C to 125°C
