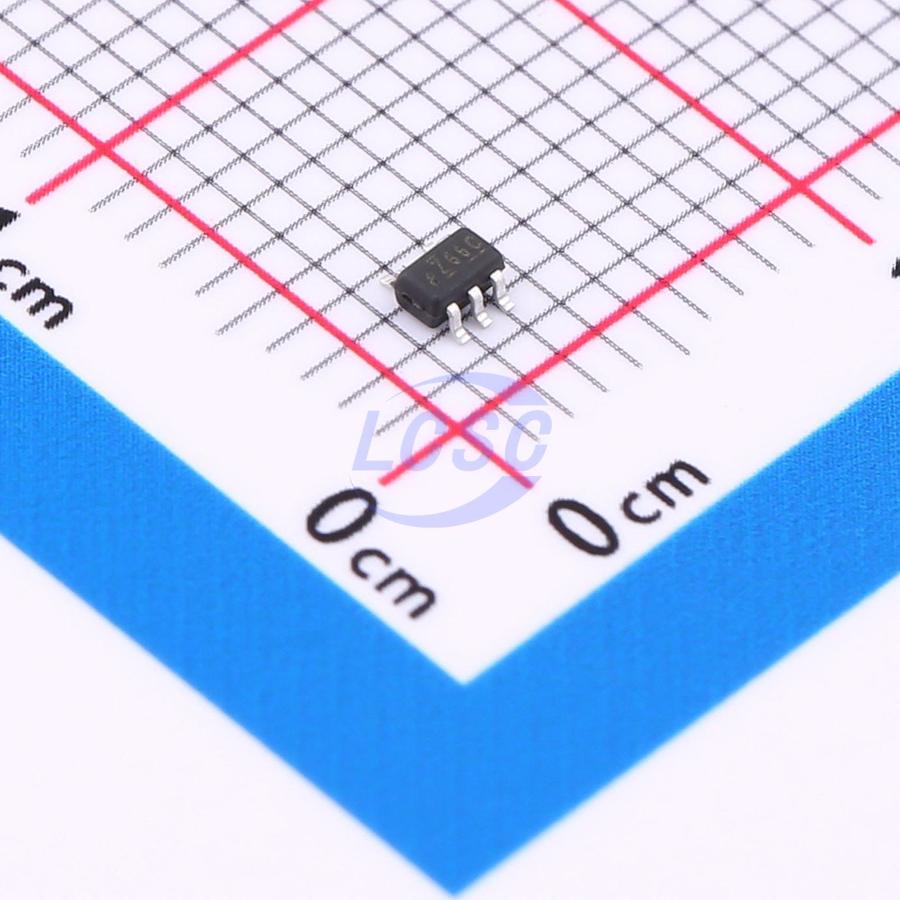

NC7SZ66P5X-TP

The NC7SZ66 is a ultra high-speed (UHS) CMOS compatible single-pole/single-throw (SPST) bus switch. The LOW on resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a 1-bit switch with a switch enable (OE) signal. When OE is HIGH, the switch is on and port A is connected to port B. When OE is LOW, the switch is open and a high-impedance state exists between the two ports.

Applications

• Wireless Devices
• Audio and Video Signal Routing
• Portable Computing
• Wearable Devices
• Signal Gating, Chopping, Modulation or Demodulation (Modem)
• Signal Multiplexing for Analog - to - Digital and Digital - to - Analog Conversion Systems

Key features

• Operation Voltage Range: 1.65~5.5V
• Inputs Accept Voltages to 5.5V
• Max tPD of 0.8 ns at 3.3V
• High Degree of Linearity
• ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A)
• -200 - V Machine Model (A115 - A)
• -1000 - V Charged - Device Model (C101)
