onsemiDatasheet (PDF)

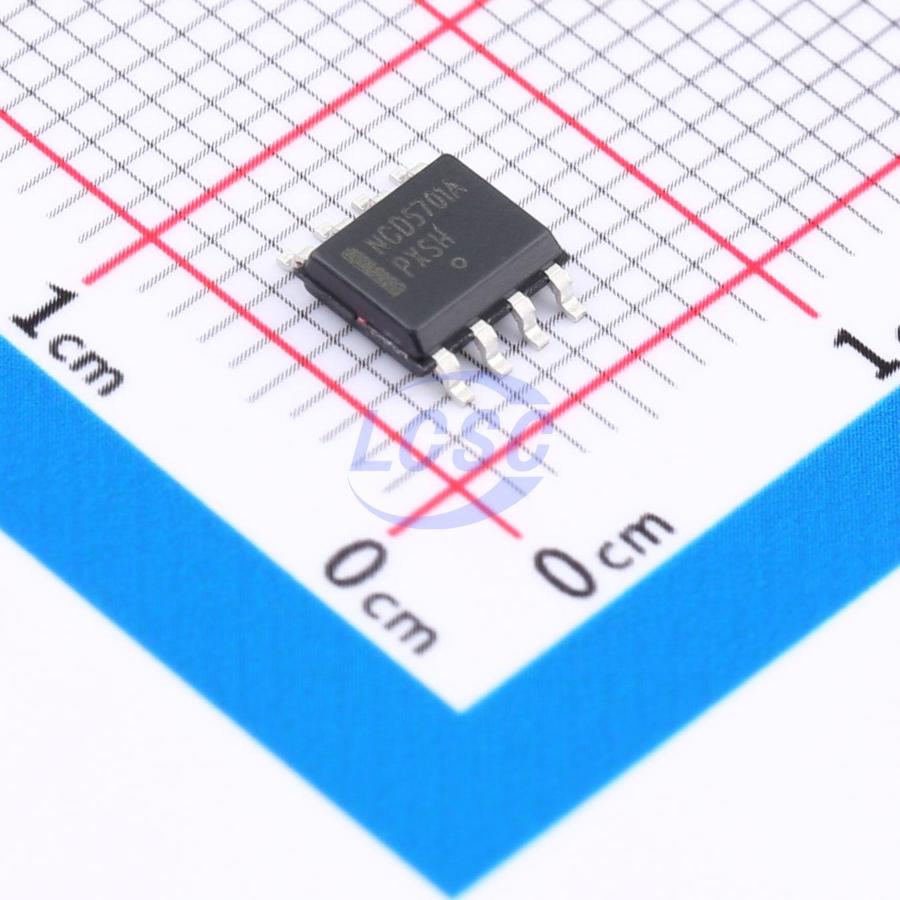

NCD5701ADR2G
20V 6A SOIC-8 Gate Drivers RoHS
SOIC-8ROHS3 CompliantActive
High Current IGBT Gate Drivers
- Manufacturer
- onsemi
- Manufacturer part #
- NCD5701ADR2G
- Store part #
- C603415
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C603415
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.68 | ₹174.68 |
| 10+ | ₹143.57 | ₹1,435.70 |
| 30+ | ₹126.39 | ₹3,791.70 |
| 100+ | ₹107.03 | ₹10,703.00 |
| 500+ | ₹98.33 | ₹49,165.00 |
| 1,000+ | ₹94.63 | ₹94,630.00 |
1 × ₹174.68
₹174.68
excl. GST
₹206.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCD5701ADR2G
₹174.68 for 1 + GST
Specifications
- Low Level Delay Time
- 56ns
- High Level Delay Time
- 63ns
- Quiescent Current
- 900uA
- Voltage - Supply
- 20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 6A
- Rise Time
- 18ns
- Fall Time
- 7.9ns
- Features
- Interleaved conduction protection;Overcurrent Protection
- Load Type
- IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
Applications
- Inverter
- Motor control
- Uninterruptible power supply (UPS)
- Rapid shutdown for photovoltaic systems
