NCEDatasheet (PDF)

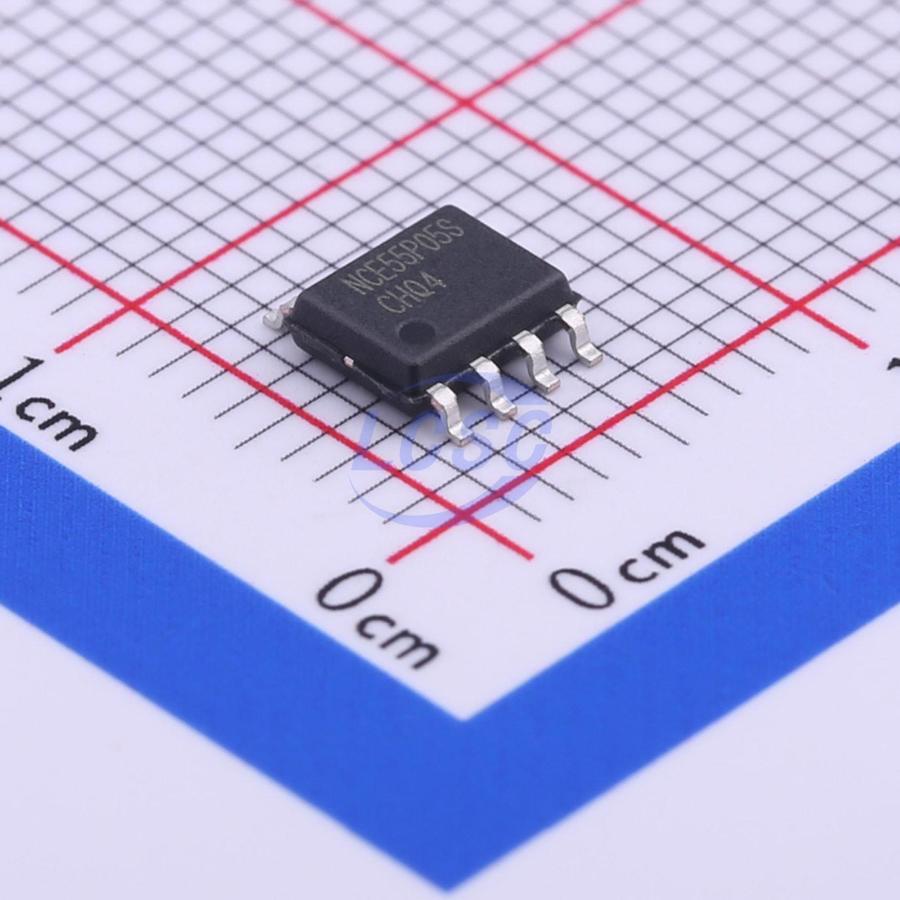

NCE55P05S
P-Channel 55V 5A 25W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET P-CH 55V 5A SOP-8
- Manufacturer
- NCE
- Manufacturer part #
- NCE55P05S
- Store part #
- C414142
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,830 in stock
#C414142
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.68 | ₹213.40 |
| 50+ | ₹32.82 | ₹1,641.00 |
| 150+ | ₹28.59 | ₹4,288.50 |
| 500+ | ₹23.32 | ₹11,660.00 |
| 2,500+ | ₹20.97 | ₹52,425.00 |
| 4,000+ | ₹19.57 | ₹78,280.00 |
5 × ₹42.68
₹213.40
excl. GST
₹251.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCE55P05S
₹213.40 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 145pF
- Ciss-Input Capacitance
- 1.45nF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.205 g
Overview
NCE55P05S utilizes advanced trench technology and design to deliver excellent RDS(ON) with low gate charge. It is suitable for a wide range of applications.
Applications
- Power switching applications
- Hard switching and high-frequency circuits
- DC-DC converters
Key features
- VDS = -55V, ID = -5A
- RDS(ON) < 80 mΩ @ VGS = -10V
- High-density cell design for ultra-low on-resistance
- Fully characterized avalanche voltage and current ratings
- Excellent package with superior thermal dissipation
