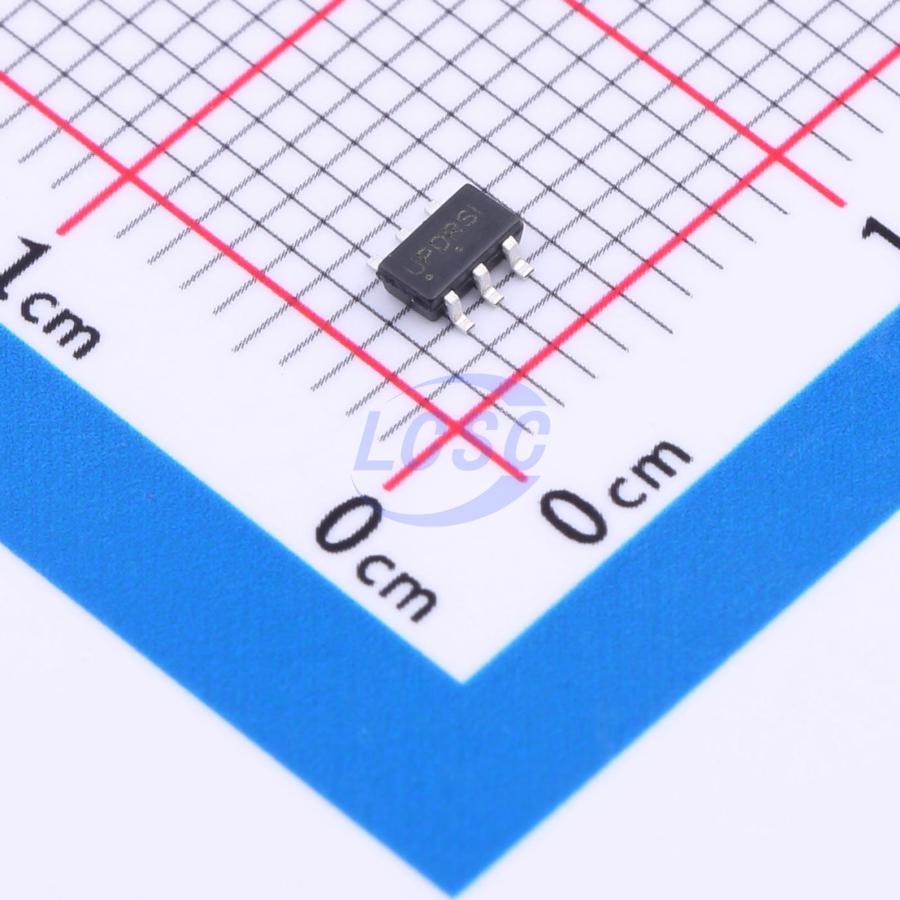

NCP1623ASNT1G
32kHz 9V~30V TSOP-6 PFC (Power Factor Correction) RoHS
Enhanced, High-Efficiency Power Factor Controller
- Manufacturer
- onsemi
- Manufacturer part #
- NCP1623ASNT1G
- Store part #
- C5159251
- Package / case
- TSOP-6
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,251 in stock
#C5159251
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.83 | ₹81.83 |
| 10+ | ₹73.00 | ₹730.00 |
| 30+ | ₹68.69 | ₹2,060.70 |
| 100+ | ₹64.39 | ₹6,439.00 |
| 500+ | ₹61.81 | ₹30,905.00 |
| 1,000+ | ₹60.51 | ₹60,510.00 |
1 × ₹81.83
₹81.83
excl. GST
₹96.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP1623ASNT1G
₹81.83 for 1 + GST
Specifications
- Features
- With enable;Soft-start;Overvoltage protection;Undervoltage Protection;Over temperature protection;Under-voltage lockout;Tracking boost function
- Frequency - Switching
- 32kHz
- standby current
- 500uA
- Type
- PFCController
- Voltage - Supply
- 9V~30V
- Working Mode
- CRM;DCM
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
Extremely compact, the NCP1623 is designed to optimize the efficiency of your PFC stage throughout the load range. It also incorporates protection features for a rugged operation. More generally, NCP1623 is ideal in systems where cost−effectiveness, reliability, high power factor and efficiency ratios are key requirements.
Applications
- USB−PD
- Flat TV
- Industrial Power Supplies
- All Off−line Appliances Requiring Power Factor Correction
Key features
- Valley Synchronized Frequency Fold−back (VSFF):
- CrM at Heavy Load
- DCM at Light Load by Dead Time Control
- Valley Switching in Both CrM and DCM
- On−time Modulation for High PFC in Both CrM and DCM
- Follower Boost Capability (NCP1623A Only):
- Lowered Output Voltage Regulation at Low Line
- High−Efficient Boost Stage and Downsized Inductor Design
- Skip Mode for Light Load Regulation
- Sleep Mode with Low Current Consumption (SOIC8 Only)
- Fast Line / Load Transient Control:
- Dynamic Response Enhancer at Output Undershoot
- Soft OVP and Fast OVP at Output Overshoot
- Excessive Current Protection:
- Over Current Protection (OCP)
- Over Stress Protection (OVS)
- Brown Out Protection
- Second Over Voltage Protection (OVP2)
- These are Pb−Free Devices
