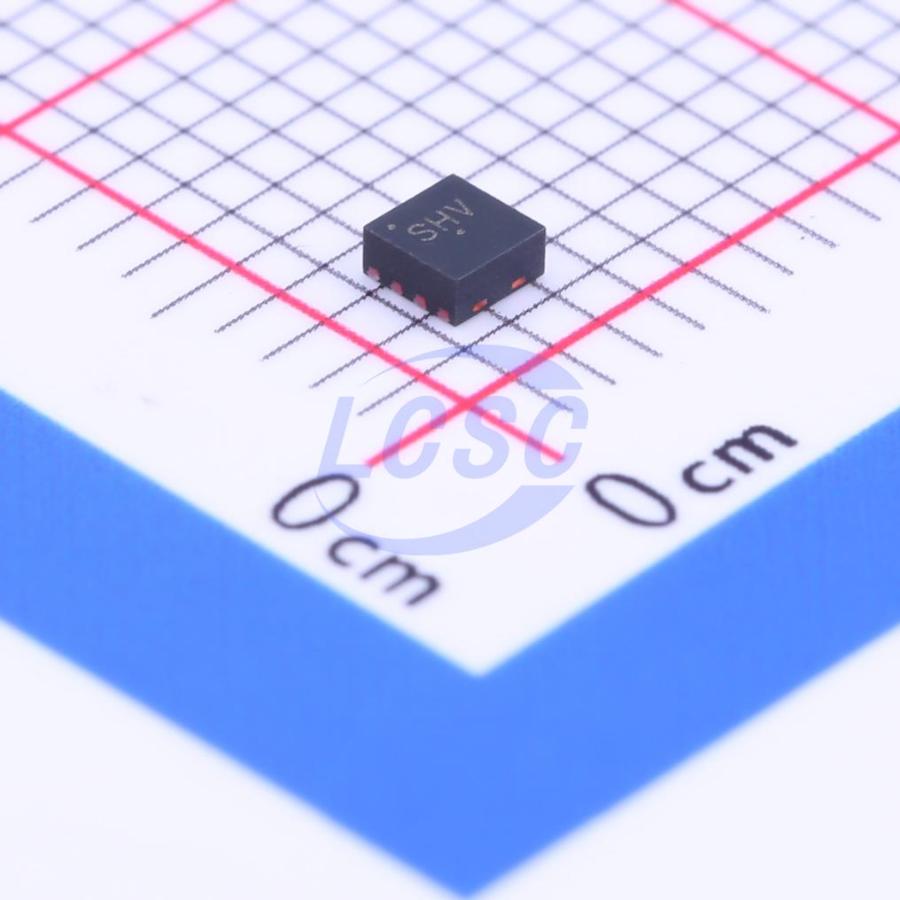

NCP45521IMNTWG-H
1 10.5A Active High Load Switch DFN-8-EP(2x2) Power Distribution Switches, Load Drivers RoHS
DFN-8-EP(2x2)ROHS3 CompliantActive
Load Switches with Inrush Current Limit via Soft Start
- Manufacturer
- onsemi
- Manufacturer part #
- NCP45521IMNTWG-H
- Store part #
- C223558
- Package / case
- DFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,981 in stock
#C223558
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.91 | ₹186.91 |
| 10+ | ₹154.06 | ₹1,540.60 |
| 30+ | ₹136.00 | ₹4,080.00 |
| 100+ | ₹115.55 | ₹11,555.00 |
| 500+ | ₹106.41 | ₹53,205.00 |
| 1,000+ | ₹102.49 | ₹1,02,490.00 |
1 × ₹186.91
₹186.91
excl. GST
₹220.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP45521IMNTWG-H
₹186.91 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Output discharge function;Soft-start;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 10.5A
- Control Input Logic
- Active High
- RDS(on)
- 10.1mΩ
- Operating Voltage
- 500mV~13.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.134 g
Overview
The NCP4552x series of load switches provide a component and area-reducing solution for efficient power domain switching with inrush current limit via soft start. In addition to integrated control functionality with ultra low on−resistance, these devices offer system safeguards and monitoring via fault protection and power good signaling. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.
Applications
- Portable Electronics and Systems
- Notebook and Tablet Computers
- Telecom, Networking, Medical, and Industrial Equipment
- Set−Top Boxes, Servers, and Gateways
- Hot Swap Devices and Peripheral Ports
Key features
- Advanced Controller with Charge Pump
- Integrated N-Channel MOSFET with Low RON
- Input Voltage Range 0.5 V to 13.5 V
- Soft-Start via Controlled Slew Rate
- Adjustable Slew Rate Control (NCP45521)
- Power Good Signal (NCP45520)
- Thermal Shutdown
- Undervoltage Lockout
- Short-Circuit Protection
- Extremely Low Standby Current
- Load Bleed (Quick Discharge)
- This is a Pb−Free Device
