onsemiDatasheet (PDF)

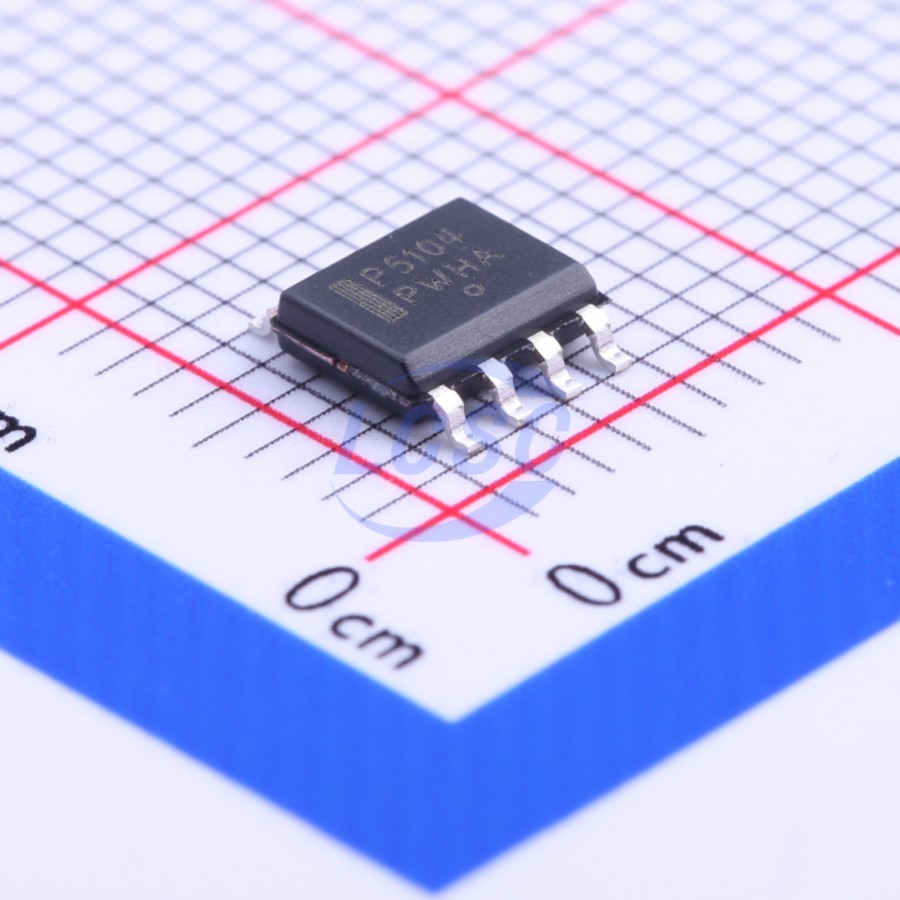

NCP5104DR2G
10V~20V 500mA 250mA SOIC-8 Gate Drivers RoHS
SOIC-8ROHS3 CompliantActive
High Voltage, Half Bridge Driver
- Manufacturer
- onsemi
- Manufacturer part #
- NCP5104DR2G
- Store part #
- C153763
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,523 in stock
#C153763
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.50 | ₹159.50 |
| 10+ | ₹134.95 | ₹1,349.50 |
| 30+ | ₹121.48 | ₹3,644.40 |
| 100+ | ₹98.22 | ₹9,822.00 |
| 500+ | ₹91.49 | ₹45,745.00 |
| 1,000+ | ₹88.44 | ₹88,440.00 |
1 × ₹159.50
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP5104DR2G
₹159.50 for 1 + GST
Specifications
- Low Level Delay Time
- 620ns
- High Level Delay Time
- 100ns
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 500mA
- Rise Time
- 85ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control
- Current - Output High(IOH)
- 250mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The NCP5104 is a High Voltage Power gate Driver providing two outputs for direct drive of 2 N. −channel power MOSFETs or IGBTs arranged in a half−bridge configuration. It uses the bootstrap technique to insure a proper drive of the High−side power switch.
Applications
- Half−Bridge Power Converters
Key features
- High Voltage Range: up to 600 V
- dV/dt Immunity ±50 V /nsec
- Gate Drive Supply Range from 10 V to 20 V
- High and Low Drive Outputs
- Output Source / Sink Current Capability 250 mA / 500 mA
- 3.3 V and 5 V Input Logic Compatible
- Up to VCC Swing on Input Pins
- Extended Allowable Negative Bridge Pin Voltage Swing to -10 V for Signal Propagation
- Matched Propagation Delays between Both Channels
- 1 Input with Internal Fixed Dead Time (520 ns)
- Under VCC LockOut (UVLO) for Both Channels
- Pin to Pin Compatible with Industry Standards
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP5106BDR2G#C67861onsemi · SOIC-8-150mil | onsemi | SOIC-8-150mil | 2,291 | ₹114.25 · 2,291 in stock | View |
 | NCP5106ADR2G#C78282onsemi · SOIC-8 | onsemi | SOIC-8 | 6 | ₹245.65 · 6 in stock | View |
 | TF2304M-TAH#C2683759TFSS · SOIC-8 | TFSS | SOIC-8 | 1,624 | ₹57.89 · 1,624 in stock | View |
 | DGD2304S8-13#C460710DIODES · SO-8 | DIODES | SO-8 | 166 | ₹240.23 · 166 in stock | View |
| SL2003#C20539709Slkor · SOP-8 | Slkor | SOP-8 | 2,369 | ₹41.82 · 2,369 in stock | View | |
