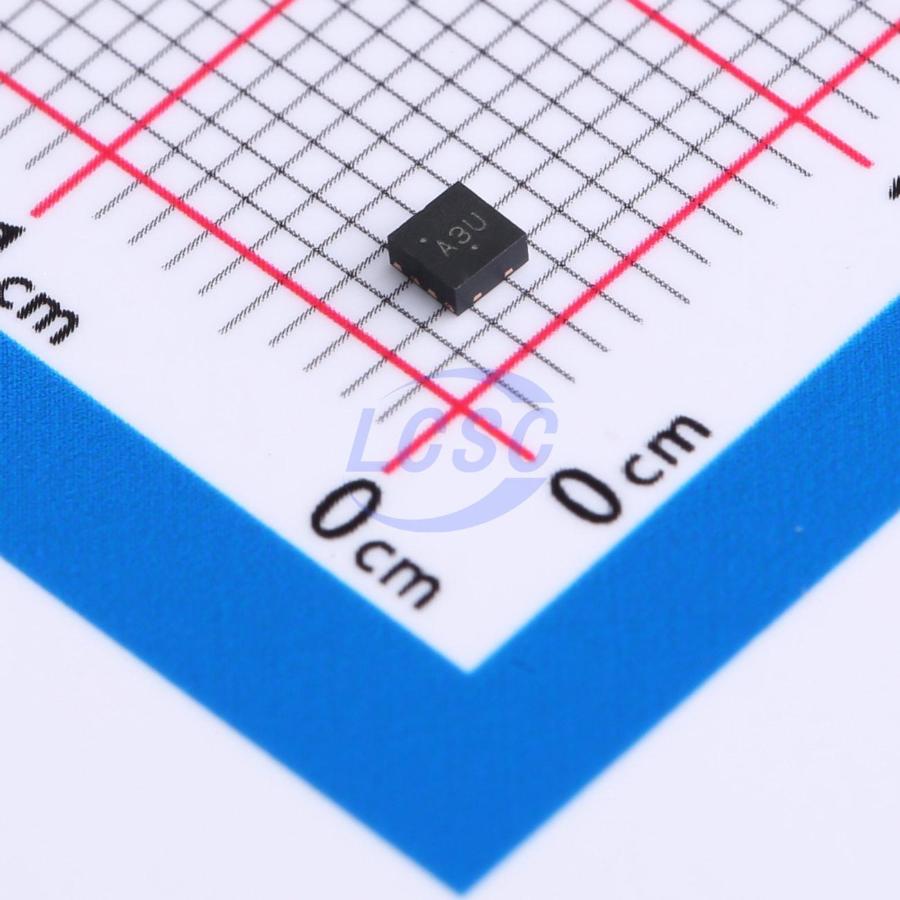

NCP81151MNTBG
4.5V~5.5V DFN-8-EP(2x2) Gate Drivers RoHS
MOSFET Driver, VR12.5 Compatible Synchronous Buck
- Manufacturer
- onsemi
- Manufacturer part #
- NCP81151MNTBG
- Store part #
- C603810
- Package / case
- DFN-8-EP(2x2)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,649 in stock
#C603810
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.99 | ₹53.99 |
| 10+ | ₹42.51 | ₹425.10 |
| 30+ | ₹37.52 | ₹1,125.60 |
| 100+ | ₹31.45 | ₹3,145.00 |
| 500+ | ₹27.32 | ₹13,660.00 |
| 1,000+ | ₹25.59 | ₹25,590.00 |
1 × ₹53.99
₹53.99
excl. GST
₹63.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP81151MNTBG
₹53.99 for 1 + GST
Specifications
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Voltage - Supply
- 4.5V~5.5V
- Operating Temperature
- -40℃~+100℃
- Driven Configuration
- Half-Bridge
- Rise Time
- 16ns
- Fall Time
- 11ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The NCP81151 is a high performance dual MOSFET gate driver optimized to drive the gates of both high−side and low−side power MOSFETs in a synchronous buck converter. It can drive up to 3 nF load with a 25 ns propagation delay and 20 ns transition time. Adaptive anti−cross−conduction and power saving operation circuit can provide a low switching loss and high efficiency solution for notebook systems. The UVLO function guarantees the outputs are low when the supply voltage is low.
Applications
- Power Management Solutions for Notebook Systems
Key features
- Faster Rise and Fall Times
- Adaptive Anti−Cross−Conduction Circuit
- Zero Cross Detection function
- Output Disable Control Turns Off Both MOSFETs
- Undervoltage Lockout
- Power Saving Operation Under Light Load Conditions
- Direct Interface to NCP6131 and Other Compatible PWM Controllers
- Thermally Enhanced Package
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
