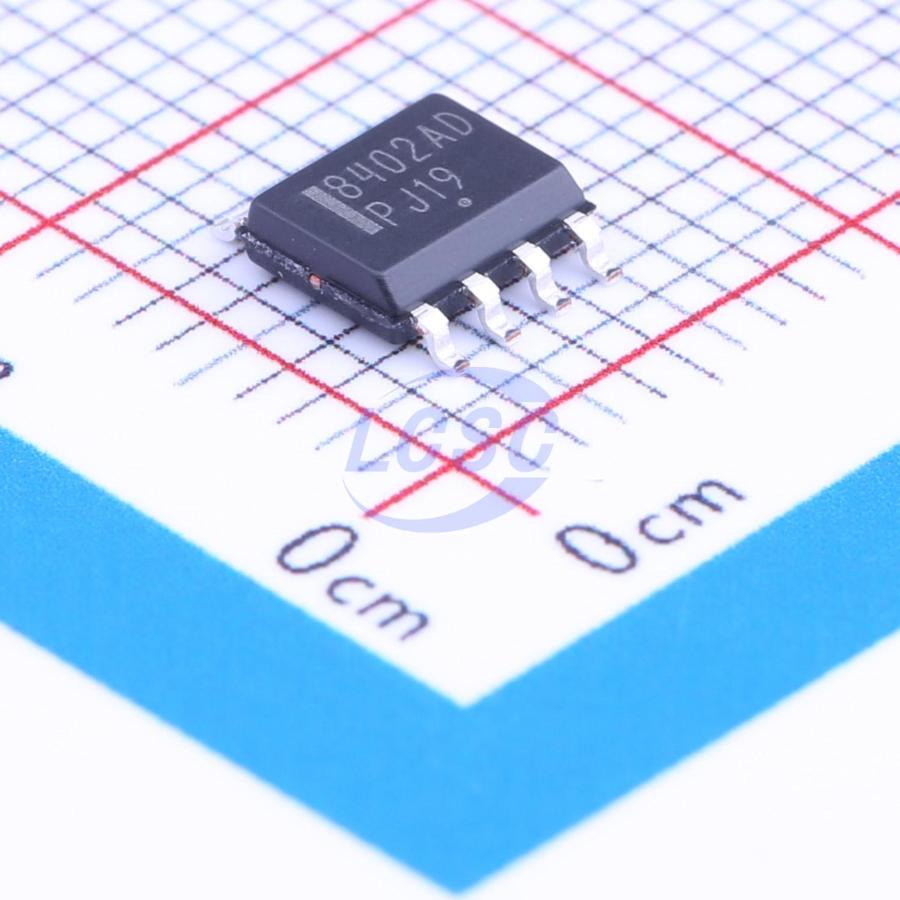

NCV8402ADDR2G
2 Active High 2A Low Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS3 CompliantActive
Dual Self-Protected Low-Side Driver with Temperature and Current Limit
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8402ADDR2G
- Store part #
- C109030
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,450 in stock
#C109030
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.87 | ₹134.87 |
| 10+ | ₹108.12 | ₹1,081.20 |
| 30+ | ₹94.63 | ₹2,838.90 |
| 100+ | ₹81.36 | ₹8,136.00 |
| 500+ | ₹76.58 | ₹38,290.00 |
| 1,000+ | ₹72.45 | ₹72,450.00 |
1 × ₹134.87
₹134.87
excl. GST
₹159.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV8402ADDR2G
₹134.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 2
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 165mΩ
- Operating Voltage
- 42V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
NCV8402D/AD is a dual protected Low−Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain−to−Gate clamping for overvoltage protection. This device offers protection and is suitable for harsh automotive environments.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short−Circuit Protection
- Thermal Shutdown with Automatic Restart
- Overvoltage Protection
- Integrated Clamp for Inductive Switching
- ESD Protection
- dV/dt Robustness
- Analog Drive Capability (Logic Level Input)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
